Specifications
|
Brand |
SFENG |
|
Model |
Pogo pin with Screw Thread |
|
Plunger |
Brass |
|
Body |
Brass |
|
Spring |
SUS303 |
|
Spring force |
Customized |
|
Full travel |
Customized |
|
Switch path |
Customized |
|
Current Resistance |
NO |
|
Spacing |
NO |
|
Mounting dimensions |
NO |
|
MOQ |
100 |
|
delivery time |
15 Days after confirming order |

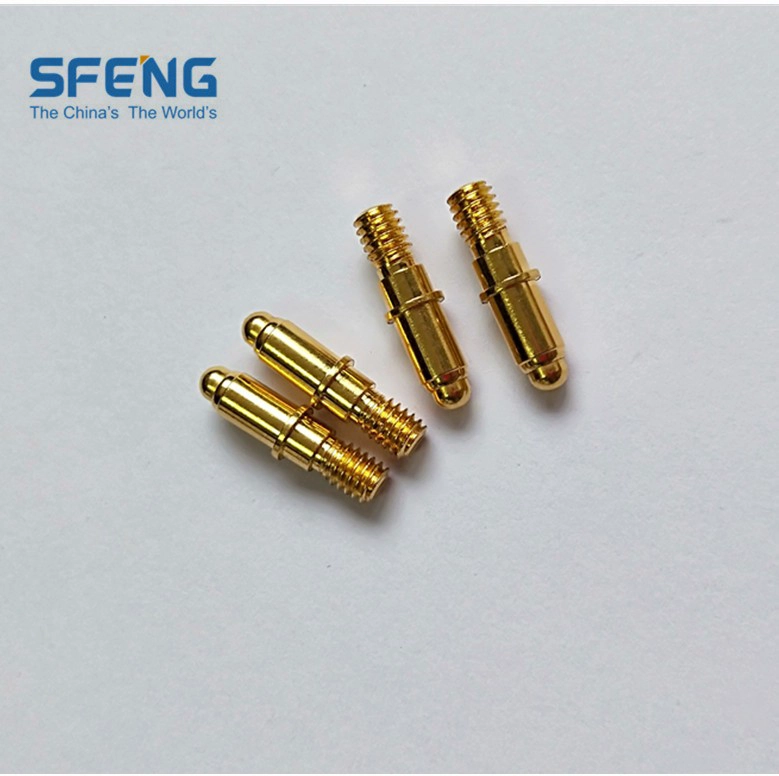

Pogo pin Image

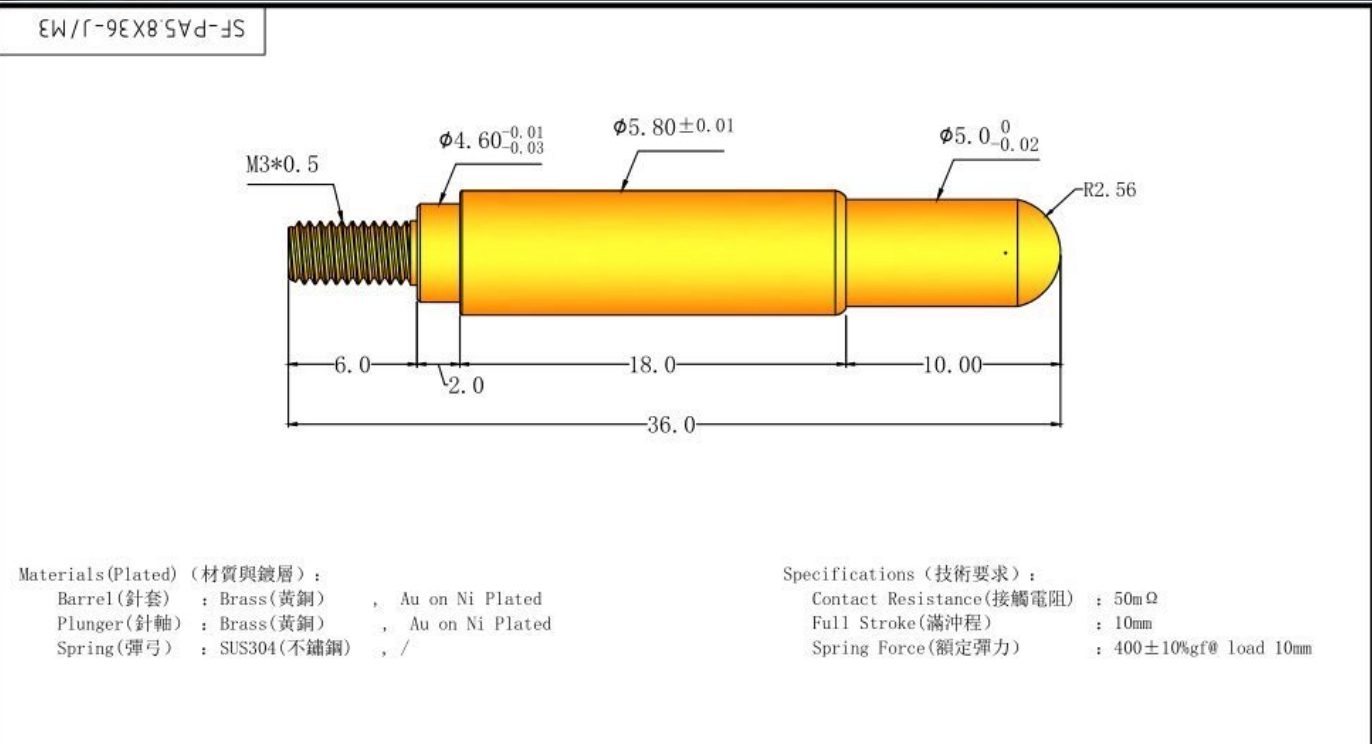

Pogo pin drawing
our service
1. Quick response.
2. Customized is accepted.
3. Short production time and fast delivery.
4. High quality and good price.
Main products
Spring-loaded pin (single) of PCB, ICT, FCT testing;
Spring pin (connector) to establish a connection between two printed circuit boards for charging, positioning, batteries, semiconductors and amplifiers; interconnect applications;
BGA and semiconductor test double-ended probe;
Universal pin no spring, paint needle, LM pin QZ and VZ series;
High current probe, the probe switches, capacitors needle;
Pier and amplifier; socket / socket;
Other related electronic components, 30 # OK line, jig lock, POM, iron hinges, etc.
Production process
Testing equipment
Packing & delivery
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Type: pogo pin
Current:2A
Size:customized
Material: brass
Plating: gold plated
Current: 10A
Lifetime: 300,000 times
Application:mobile phones,portable electronic devices,communications,automobiles,etc.
Type: pogo pin connector
Material: brass
Plating: gold plated
Current: 5A
Lifetime: 300,000 times
Application:mobile phones,portable electronic devices,communications,automobiles,etc.
Item: SF-PPA3.1X12-J2.4
Materials: Brass
Spring: SUS304
Finish: gold plated
Item: SF-PPA 5.5X24
Plunger: brass
Body: brass
Spring: stainless steel
Spring force: 300g ± 20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 5u" Barrel: Au 5u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:60g±20%
Customized support:ODM/OEM All specifications accept custom
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 5u" Barrel: Au 5u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:60g±20%
Custom Support:ODM/OEM
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 5u" Barrel: Au 5u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:60g±20%
Custom Support: OEM/ODM support
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 5u" Barrel: Au 5u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:100g±20%
Customized Support:OEM/ODM, all specificstion accept to custom.
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 3u" Barrel: Au 3u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:60g±20%
Material:Barrel/Plunger:Brass Spring:304StainlessSteel
Plating:Plunger:Au 3u" Barrel:Au 5u" Over 50~120u" Ni
Mechanical Durability:≥10000cycles
Rated current&voltage:12V/3.0A
Spring Force:100g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 5u" Barrel: Au 5u" Spring: Au 1'' Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:80g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 3u" Barrel: Au 3u” Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:70g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 15u" Barrel: Au 5u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/3.0A
Spring Force:100g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 3u" Barrel: Au 3u" Spring:1u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:100g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 4u" Barrel: Au 10u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/2.0A
Spring Force:75g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 3u" Barrel: Au 3u" Spring:Au 1u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/3.0A
Spring Force:280g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 3u" Barrel: Au 5u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:20g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 5u" Barrel: Au 5u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/2.0A
Spring Force:100g±20%
Item No:SF-PG2.9-6.5-2.0-W2.5-2.0-1.5-2
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 4u" Barrel: Au 4u" Over 60-80u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:30g±20%
