Model: SF-PV1-H-H M7.0x44.5

Material: Copper Alloy

Current Rating: 30A

Contact Resistance (Initial)：≤1mΩ

Maximum Travel：≥8.0mm

Recommended Working Travel：550g±20%(5mm)

Model: SF-2.9X36-5.0

Material: Copper Alloy

Current Rating: 5A

Contact Resistance (Initial)：≤5mΩ

Maximum Travel：≥4.5mm

Recommended Working Travel：580g±20%(2.5mm)

Model: SF33.4-2.0

Material: Copper Alloy

Current Rating: 5A

Contact Resistance (Initial)：≤20mΩ

Maximum Travel：≥6.4mm

Recommended Working Travel：100g±20%(4.3mm)

Material: Copper Alloy

Surface Plating：Partial gold-plated over nickel

Current Rating: 3A

Maximum Travel ≥4.5mm

Recommended Working Travel: 180g±20%（3.0mm）

Contact Resistance (Initial)：≤20mΩ

Operating Temperature：-40℃/+105℃

Material：Copper Alloy
Finishes：Partial gold-plated over nickle

Brand: SFENG
Model: PV1-H-H 5.7X24.5
Current rating: 30A
Lifetime: 300,000 times

Plating:Gold plated
Full stroke: 8.0mm
Rated stroke: 3.0mm
Spring force: 550±15% gf @ load 5.3mm
Lifetime: 300,000 times

Plating:Gold plated
Full stroke: 8.0mm
Rated stroke: 3.0mm
Spring force: 2000±20% gf @ load 5.0mm
Lifetime: 300,000 times

Brand: SFENG
Model: PV1-H-H ø4.2*44.5
Material: Brass
Recommend travel: 2.0mm
MOQ: 100pcs
Payment term: 100% TT in advance

Brand: SFENG
Model: PV1-H-H ø4.2*44.5
Material: Brass
Recommend travel: 2.0mm
MOQ: 100pcs
Payment term: 100% TT in advance

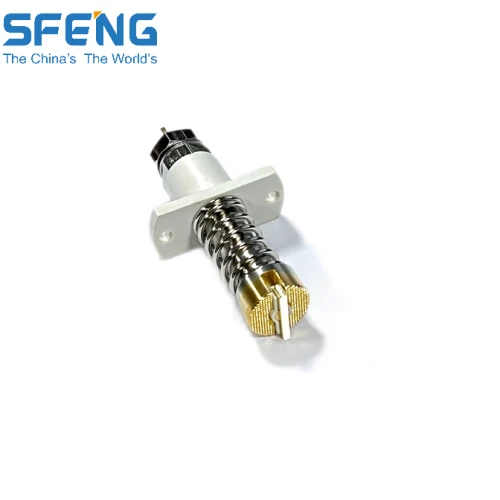

Item Code:SF-15*68.5
Material: Copper Alloy
Current:60A
Mechanical Life Exceeds： ＞30000times
MOQ: 100pcs
Payment: T/T 100% in advance

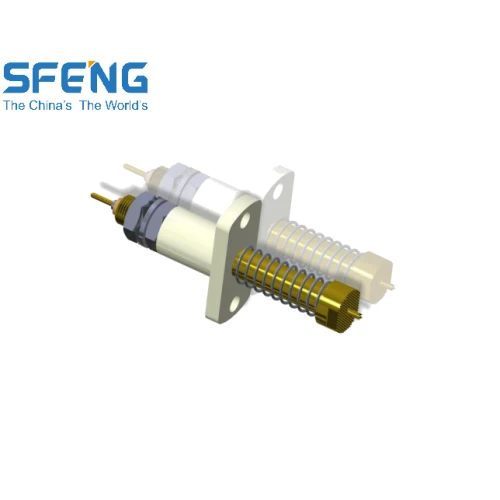

Brand: SFENG
Model: SF-9.0*62.0
Material: Copper Alloy
Finishes: Plated gold over Nickle
Current rating: 60A
Full Compression Travel: 10.0mm
Spring force: 4200g±20%
MOQ: 100pcs
