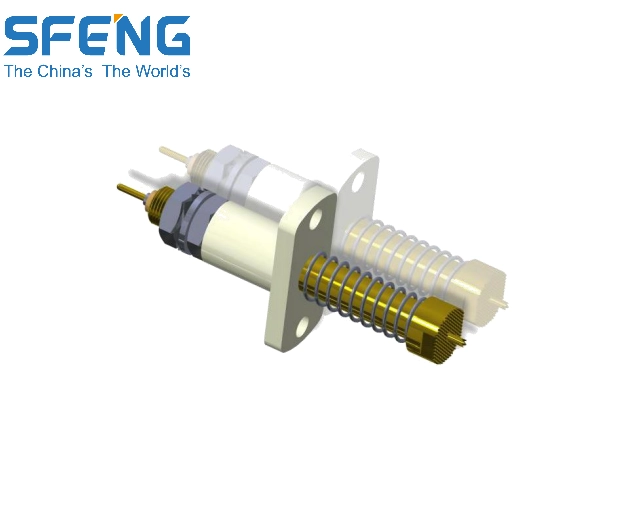

Hot Sale 60A Current Coaxial Probe Test Probe for Lithium Battery

Hot Sale 60A Current Coaxial Probe Test Probe for Lithium Battery

  • Brand: SFENG
  • Model: SF-9.0*62.0
  • Material: Copper Alloy
  • Finishes: Plated gold over Nickle
  • Current rating: 60A
  • Full Compression Travel: 10.0mm
  • Spring force: 4200g±20%
  • MOQ: 100pcs
  • Product Details

Product Specification

Model  SF-9.0*62.0
Material

 Copper Alloy

Spring force

4200g±20%

Current rating 60A
Payment term 100% TT in advance

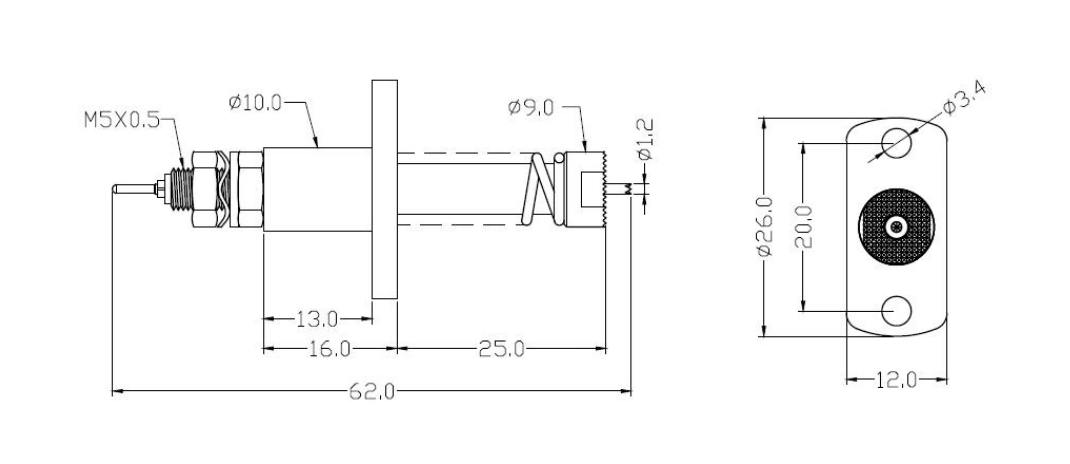

Product drawing

Factory Image

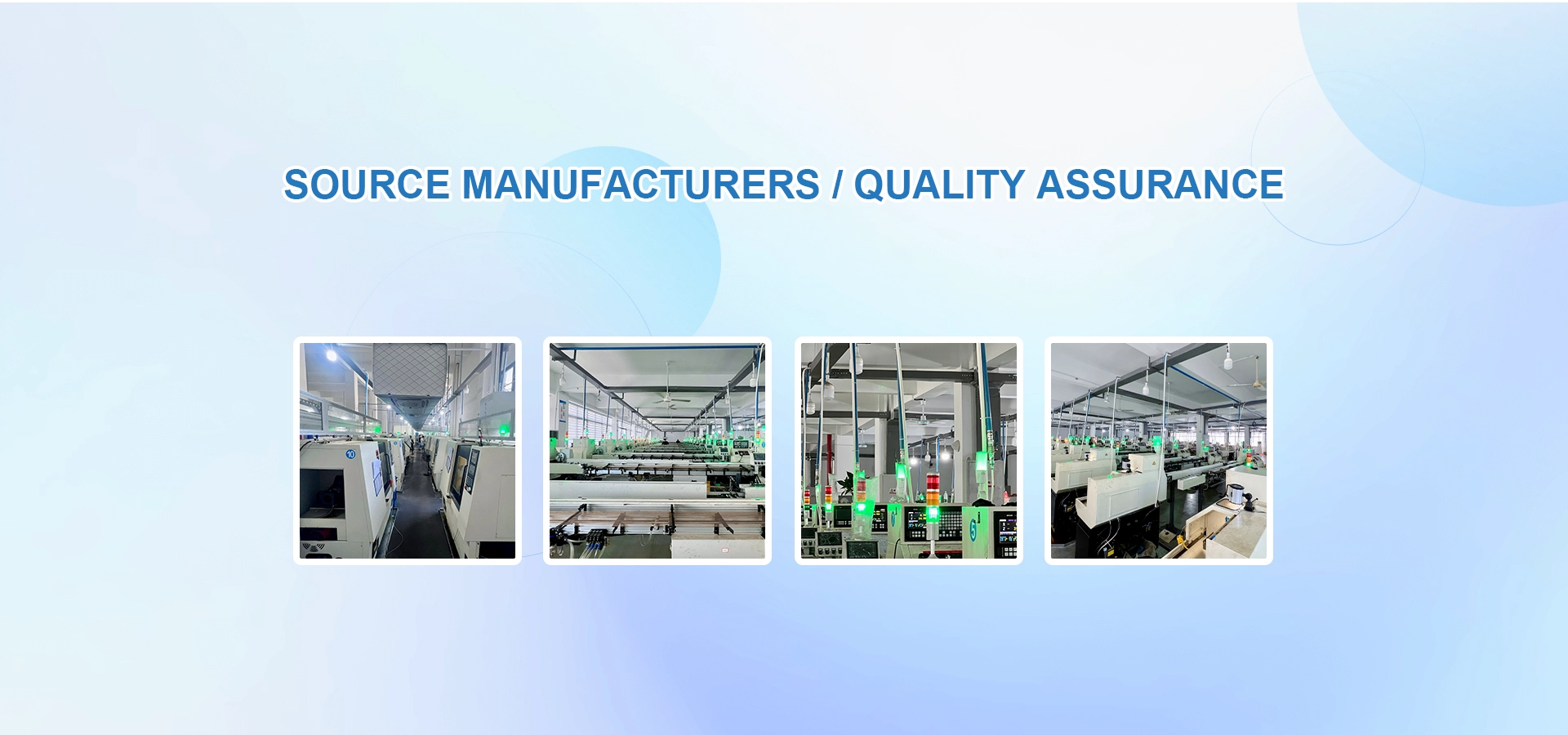

Production Equipment

FAQ



Suzhou Shengyifurui Electronic Technology Co., Ltd

Tel:008613862105944

Contact Person:Eve

PDF Show:PDF
