SFENG Factory Direct Sale High Current 3A Coaxial Spring Loaded Probe Pin
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:3A
Contact Resistance(Initial):≤20mΩ
Maximum Travel:≥4.5mm
Recommended Working Travel:180g±20%(3.0mm)
Hot Tags : high current probe pin coaxial probe high current coaxial probe spring loaded connector Current probes
Read More -
Free Sample 20A Spring Contact Pin with Coaxial Design
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:20A
Contact Resistance(Initial):≤2mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:2000g±15%(5.0mm)
Hot Tags : high current probe pin coaxial probe high current coaxial probe
Read More -
6A Gold Plated Current Pin for Lithium Battery Formation and Capacity Grading
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:6A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:1000g±20%(5.0mm)
Hot Tags : coaxial probe high current coaxial probe Current probes
Read More -
Professional Manufacturer 10A High Current Probe Battery Contact Pin
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:10A
Contact Resistance(Initial):≤10mΩ
Maximum Travel:≥7.5mm
Recommended Working Travel:450g±20%(5.0mm)
Hot Tags : high current probe pin high current coaxial probe coaxial probe Current probes
Read More -
Best Seller Customized Current Probe Battery Pin
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:20A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥9.0mm
Recommended Working Travel:2000g±20%(4.0mm)
Hot Tags : high current probe pin Current probes high current coaxial probe coaxial probe
Read More -
Factory Direct Sale 5A Current Spring Test Probe Pogo Pin
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:5A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥4.5mm
Recommended Working Travel:580g±20%(2.5mm)
Hot Tags : high current probe pin coaxial probe high current coaxial probe Current probes
Read More -

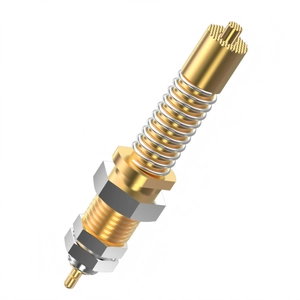

Famous Supplier Spring Test Probe Pogo Pin for Battery Tester
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:30A
Contact Resistance(Initial):≤1mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:550g±20%(5.0mm)
Hot Tags : high current probe pin coaxial probe high current coaxial probe Current probes
Read More -

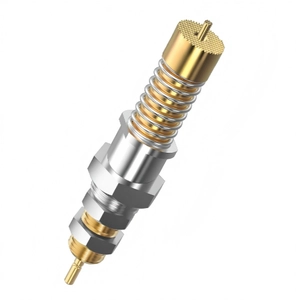

China Factory SFENG High Current Probe Pin Copper Alloy 61mm Length
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:50A
Contact Resistance(Initial):≤1mΩ
Maximum Travel:≥7.0mm
Recommended Working Travel:1500g±20%(5.0mm)
Hot Tags : coaxial probe high current coaxial probe high current probe pin Current probes
Read More -
Zhejiang factory 30A Coaxial Probe pin Spring test probe
Model: SF-PV1-H-H M7.0x44.5
Material: Copper Alloy
Current Rating: 30A
Contact Resistance (Initial)：≤1mΩ
Maximum Travel：≥8.0mm
Recommended Working Travel：550g±20%(5mm)
Hot Tags : Current probes China spring probe supplier coaxial probe
Read More -
China pogo pin factory 5A Coaxial Probe pin SF-2.9X36-5.0
Model: SF-2.9X36-5.0
Material: Copper Alloy
Current Rating: 5A
Contact Resistance (Initial)：≤5mΩ
Maximum Travel：≥4.5mm
Recommended Working Travel：580g±20%(2.5mm)
Hot Tags : Current probes China spring probe supplier coaxial probe
Read More -
China pogo pin supplier 5A Coaxial Probe pin
Model: SF33.4-2.0
Material: Copper Alloy
Current Rating: 5A
Contact Resistance (Initial)：≤20mΩ
Maximum Travel：≥6.4mm
Recommended Working Travel：100g±20%(4.3mm)
Hot Tags : Current probes China spring probe supplier coaxial probe
Read More -
3A current test probe pin Coaxial probe pin
Material: Copper Alloy
Surface Plating：Partial gold-plated over nickel
Current Rating: 3A
Maximum Travel ≥4.5mm
Recommended Working Travel: 180g±20%（3.0mm）
Contact Resistance (Initial)：≤20mΩ
Operating Temperature：-40℃/+105℃
Hot Tags : coaxial probe Current probes China spring probe supplier
Read More
