Gold plated Spring loaded pogo pin with ball
Item: SF-PPA3.1X12-J2.4
Materials: Brass
Spring: SUS304
Finish: gold platedHot Tags : China test probe supplier China spring probe supplier PCB test probe pin spring loaded connector
Read More -
Normally open 100 mil switching probe SF-KP1.65*44.6-G1.8 (NO)
Item: Switching probe SF-KP1.65*44.6-G1.8 (NO)
Materials: Beryllium Copper
Spring: Music wire
Finish: gold platedHot Tags : China test probe supplier China spring probe supplier PCB test probe pin spring loaded connector
Read More -
Normally open 100 mil switching probe SF-KP1.65*44.6-J1.0 (round tip)
Item: Switching probe SF-KP1.65*44.6-J (round tip)
Materials: Beryllium Copper
Spring: Music wire
Finish: gold platedHot Tags : China test probe supplier China spring probe supplier PCB test probe pin spring loaded connector
Read More -
Normally open 100 mil switching probe SF-KP1.65*44.6-A1.5
Item: Switching probe SF-KP1.65*44.6-A1.5
Materials: Beryllium Copper
Spring: Music wire
Finish: gold platedHot Tags : China test probe supplier China spring probe supplier PCB test probe pin spring loaded connector
Read More -
100mil ø1.8 Cup tip screw probe for cable harness testing
Item: SF-L106-A1.8
Material:Brass
Finish:Gold platedHot Tags : China spring pogo pin supplier China test probe supplier China spring probe supplier semiconductor testing spring loaded connector
Read More -
Factory Direct Sale Spring Contact Probes 500A High Current Probe
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:500A
Contact Resistance(Initial):≤0.2mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:15000g±20%(6.0mm)
Hot Tags : high current probe pin spring loaded probe pin spring loaded connector Current probes
Read More -
SFENG High Current 300A Battery Probe Coaxial Probe
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:300A
Contact Resistance(Initial):≤0.2mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:10000g±10%(5.0mm)
Hot Tags : high current probe pin spring loaded probe pin spring loaded connector Current probes
Read More -
Factory Custom Gold Plated High Current Probe Pogo Pin
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+200℃
Current Rating:200A
Contact Resistance(Initial):≤0.2mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:10000g±20%(5.0mm)
Hot Tags : high current probe pin spring loaded probe pin spring loaded connector Current probes
Read More -

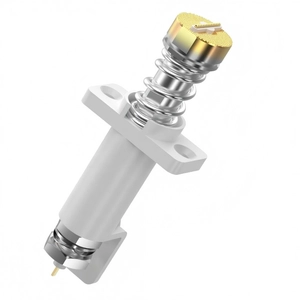

Original Manufacturer's 160A High Current Formation Test Probes
Material:Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+120℃
Current Rating:160A
Contact Resistance(Initial):≤0.3mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:8000g±20%(5.0mm)
Hot Tags : high current probe pin high current coaxial probe spring loaded probe pin spring loaded connector Current probes
Read More -

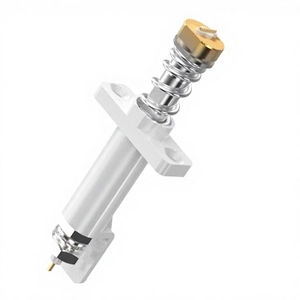

Factory Direct Sale Spring Test Probe High Current Contact Probe
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+120℃
Current Rating:80A
Contact Resistance(Initial):≤0.5mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:7000g±15%(5.0mm)
Hot Tags : high current probe pin Current probes spring loaded connector
Read More -

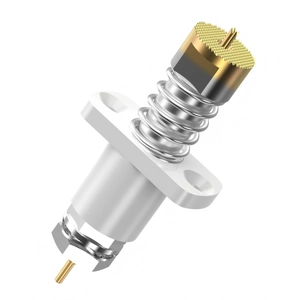

Hot Sale 30A Current Spring Loaded Pogo Pin for Cell Formation
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:30A
Contact Resistance(Initial):≤0.5mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:3000g±20%(5.0mm)
Hot Tags : high current probe pin spring loaded connector Current probes
Read More -
2026 New Product Pogo Pin Battery Connector
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Temperature Rise:≤15℃
Current Rating:30A
Contact Resistance(Initial):≤0.6mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:2500g±20%(5.0mm)
Hot Tags : high current probe pin Current probes spring loaded connector
Read More
