| Product Description |

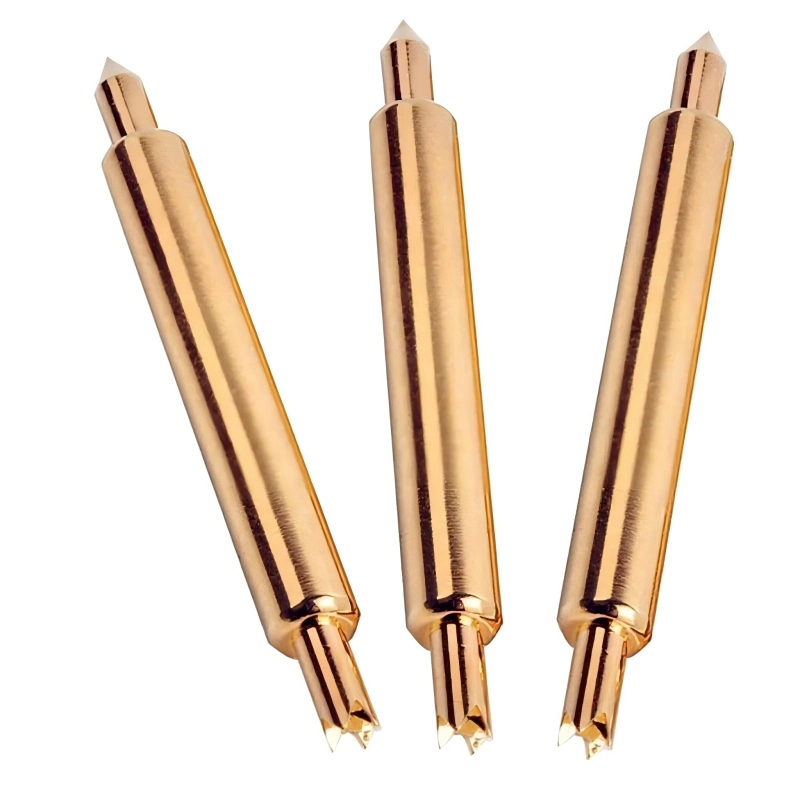

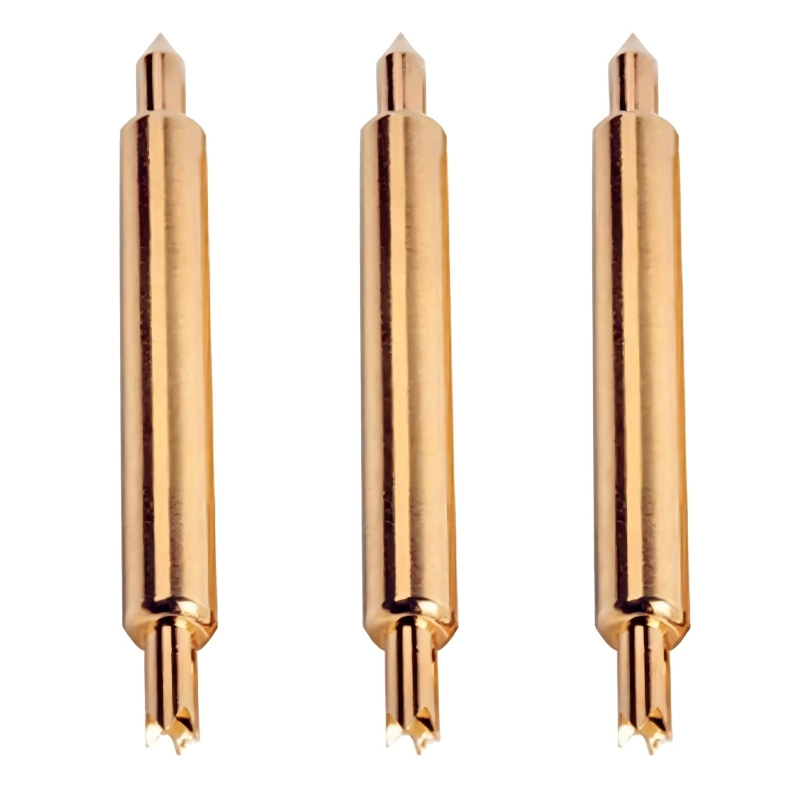

Double headed test probes can be used to test the circuit connection of a circuit board. (semiconductor test probe pin price china) By connecting one head to the test instrument and the other head to the circuit node on the circuit board, you can detect whether the circuit on the circuit board is working properly. This is very important for manufacturers of electronic products, as they need to ensure that the circuit connections on the circuit board are correct to ensure the normal operation of the product.
Double headed test probes can be used to test the voltage and current of batteries. (thread pogo pin for battery china) By connecting one head to the testing instrument and the other head to the positive and negative poles of the battery, the voltage and current of the battery can be measured. This is very important for battery manufacturers as they need to ensure that the voltage and current of the battery meet the specifications to ensure the normal use of the product.
| Product drawing |
| Product Parameters |
| Product Name | Famous Brand BGA Test Probe Double-head Pin |
| Item No. | SF-038B570U35 |
| Plating | Au plated |
| Material |
Plunger:Becu Plunger:Becu Spring:SWP |
| Full Travel | 0.80mm |
| Spring Force | 35g±20%at0.65mm |
| Current Rating | 2.0A |
| Contact Resistance | <50mΩ(AVG) |
| Bandwidth | >16GHz@-3d |
| Applications |
Double headed test probes are a common testing tool that can be used to test various electronic products. This probe has two heads, one connected to the testing instrument and the other connected to the product being tested.
| Package |
| Logistics |
Sample order ship by DHL, UPS, FedEx, TNT, EMS etc.
For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer’s forwarder or ours.
| Factory Show |
| FAQ |
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Model Number:SF-031B300U22
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:0.75mm
Spring Force:22g±20% at 0.50mm
Electrical:
Current Rating:1.0A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>29GHz@-3dB
Model Number:SF-031B255U18
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:0.60mm
Spring Force:18g±20% at 0.45mm
Electrical:
Current Rating:1.0A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>27GHz@-3dB
Model Number:SF-020B240J13
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:0.50mm
Spring Force:13g±20% at 0.45mm
Electrical:
Current Rating:0.5A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>25GHz@-3dB
Model Number:SF-020J220U
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:0.50mm
Spring Force:13g±20% at 0.45mm
Electrical:
Current Rating:0.5A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>25GHz@-3dB
