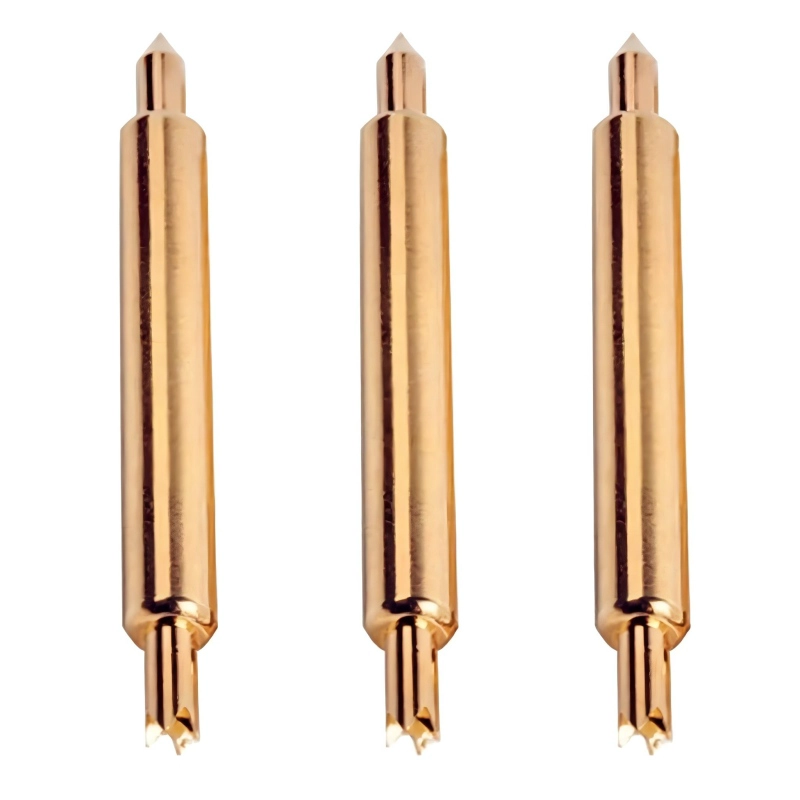

China Supplier 2.20mm Double Head Contact Pogo Pin Connector

Model Number:SF-020J220U

Material:

Plunger:BeCu /Au Plated

Barrel:PhBz /Au Plated

Spring:SWP /Au Plated

Mechanical:

Full Travel:0.50mm

Spring Force:13g±20% at 0.45mm

Electrical:

Current Rating:0.5A

Contact Resistance:<50mΩ(AVG)

Bandwidth:>25GHz@-3dB

Display Parameters Contact Now

Product Details

Specifications

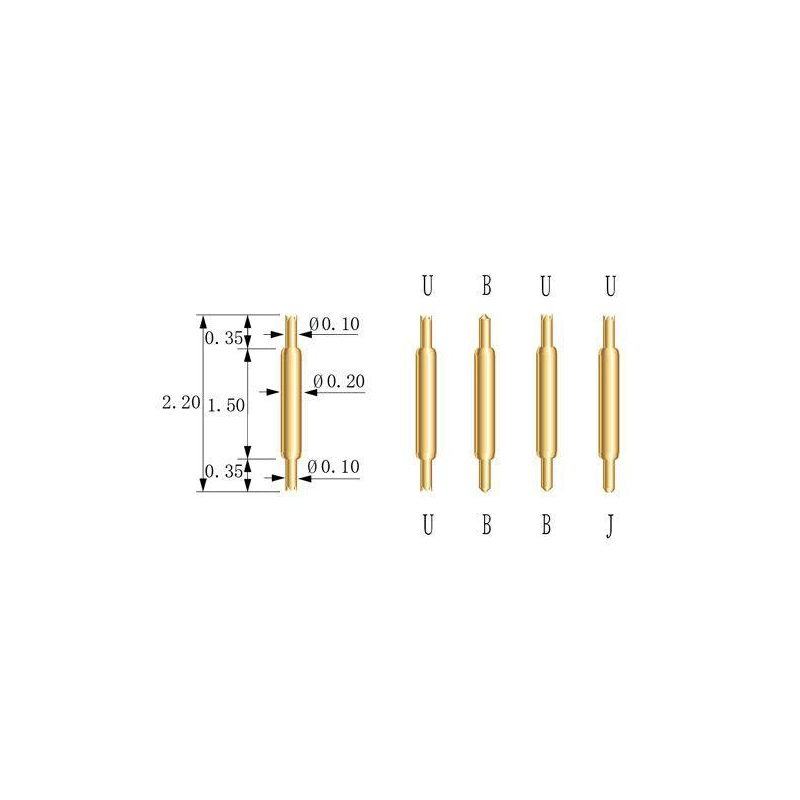

Product Name	China Supplier 2.20mm Double Head Contact Pogo Pin Connector
Model Number	SF-020J220U
Material	Plunger:Becu Plunger:Becu Barrel:PhBz Spring:SWP
Plating	Gold plating
Full Travel	0.5mm
Spring Force	13g±20%af0.45mm
Current Rating	0.5A
Contact Resistance	<50mΩ(AVG)
Bandwidth	>25GHzg@-3dB
MOQ	100pcs
Leadtime	7-10days

.png

Main Products

1.Terminal & receptacle /socket;

2.High current probe, Switch probe, Capacitance needle;

3.Spring loaded pin (single) for PCB, ICT, FCT testing etc;

4.Double ended probe for BGA and Semiconductor testing;

5.Universal pin without spring, coating pin, LM pin with QZ and VZ series;

6.Other related electronic components, 30# OK wire, Jig locks, POM, Iron hinge etc

7.Pogo pin (connector) to establish connection between two printed circuit boards for charging, locating, Battery,
Semiconductor&Interconnect applications;

If you require custom items, please feel free to send us inquiry for more solutions.

Product Flow

Measuring Equipment

Certification

Company Introduction

.png

Exhibition

.png

Customer Visits

.png

FAQs

01 What is terms of SFENG payment?

For the orders, we prefer 100% payment before the delivery. You can choose Wire transfer, Pay Pal. USD dollar, Japanese Yuan and RMB are accepted.

02 Does SFENG provide free samples?

Yes, SFENG are pleased to provide free samples for testing before orders. It’s the biggest things that you trust us and our product quality.

03 What is the lead time of orders?

SFENG can send the goods out within 3 days after receiving the order. For customized products, we will adjust the lead time accordingly.

04 What is your QC process?

SFENG have skilled QC team and professional testing equipment. From the raw material to the finished products, we will make the testing. Only appearance, dimension, tips, spring force, plating and life span are checked ok by professional equipment. the goods can be sent to customers.

05 Can customized products be accepted?

Yes, one of our main features is customization. Just providing the drawing, we will make the product specially for you.

06 What test probes can SFENG provide?

SFENG can mainly provide 5 kinds of test probes, including in-circuit test probe, semiconductor test probes, battery contact pins, guide pins and related accessories.
