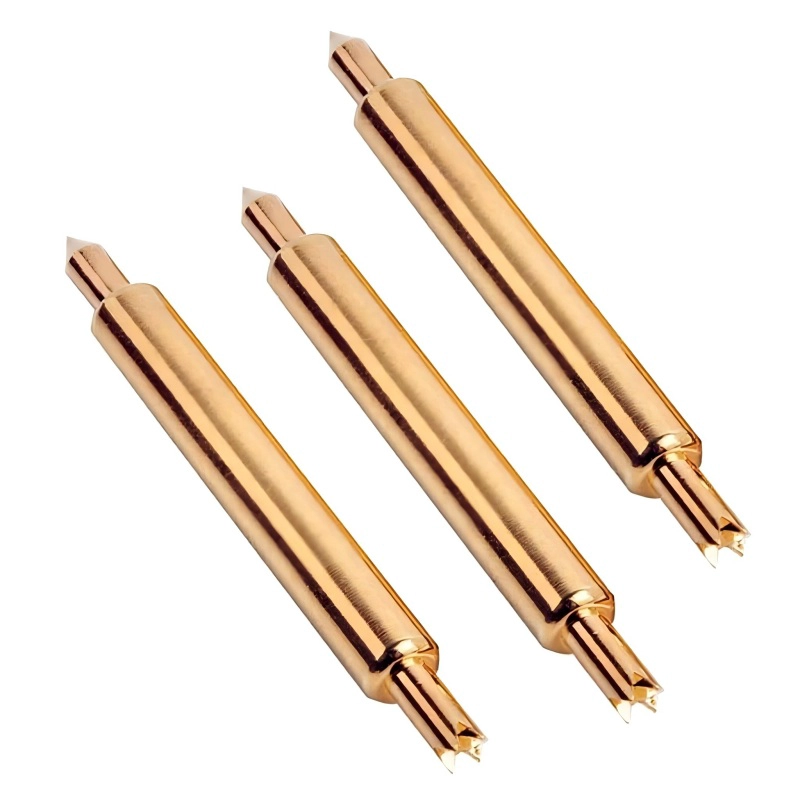

Free Sample Becu Double Head Pin
- Plunger:BeCu /Au Plated
- Plunger:BeCu /Au Plated
- Barrel:PhBz /Au Plated
- Spring:SWP /Au Plated
- Full Travel:0.80mm
- Spring Force :21g±20%at 0.50 mm
- Current Rating:0.5A
- Contact Resistance:<50mΩ(AVG)
- Bandwidth :>15GHz@-3dB
- MOQ:100pcs
- Leadtime:7-10days
- Product Details
Product Description
Double headed test probes are a common testing tool that can be used to test various electronic products. This probe has two heads, one connected to the testing instrument and the other connected to the product being tested.

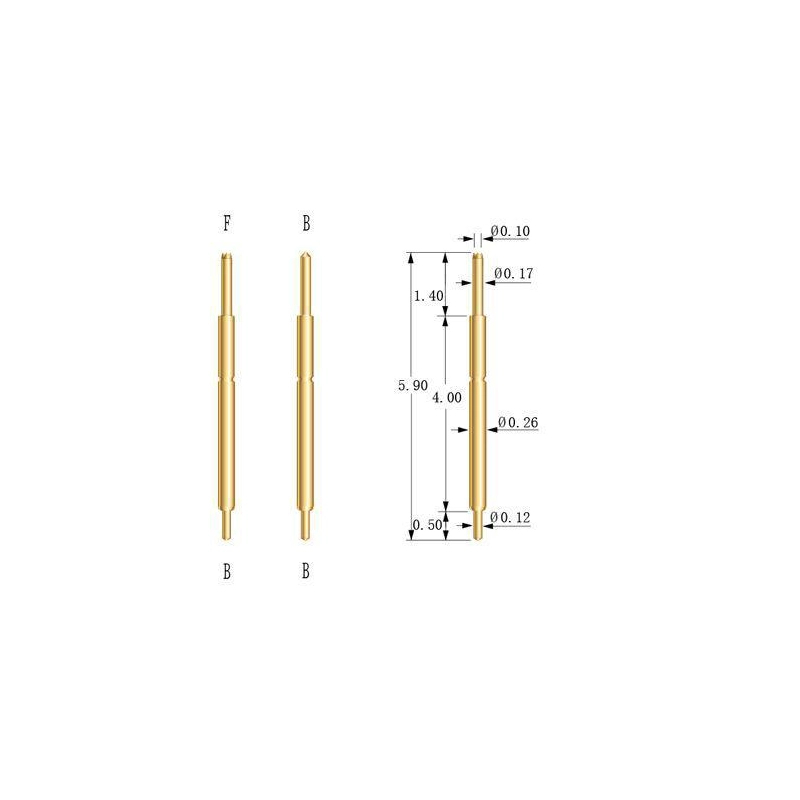

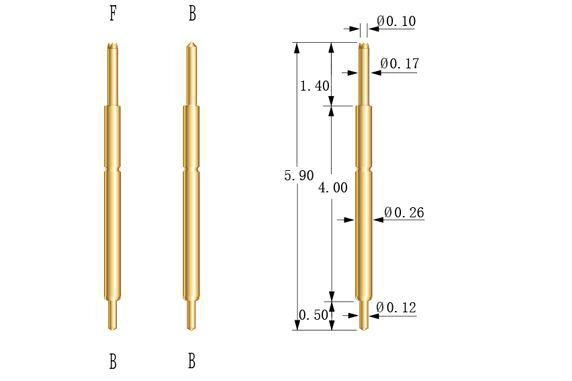

Technical Parameters
| Product Name | Free Sample Becu Double Head Pin |
| Item No. | SF-026B590F21 |
| Material |
Plunger:Becu BarrelPhBz Spring:SWP |
| Plating |
Au Plated |
| Full Travel | 0.80mm |
| Spring Force | 21g±20%at0.50mm |
| Current Rating | 0.5A |
| Contact Resistance | <50mΩ(AvG) |
| Bandwidth | >15GHz@-3dB |
Company Information
Suzhou Shengyifurui Electronic Technology Co.,Ltd is the leading test probe manufacturer in China. In 1984 we set up the first factory in Cixi City, Zhejiang Province.Factories have already passed the ISO90001 quality administration system.
In 2012 the brand SFENG was registered and also got many patents. This innovation spirit makes Suzhou Shengyifurui Electronics Co., Ltd the biggest manufacturer in the industry. In the past 30 years, the products are widely used in Southeast Asia, Europe and North America. We also have established the stable business relationship with many world’s famous enterprises, such as LG, SONY etc. With the dream of becoming the most competitive test link enterprises in the world, we keep moving on.
Certification
Why Choose Us?
Packaging & Shipping
FAQs
For the orders, we prefer 100% payment before the delivery. You can choose Wire transfer, Pay Pal. USD dollar, Japanese Yuan and RMB are accepted.
Yes, SFENG are pleased to provide free samples for testing before orders. It’s the biggest things that you trust us and our product quality.
SFENG can send the goods out within 3 days after receiving the order. For customized products, we will adjust the lead time accordingly.
SFENG have skilled QC team and professional testing equipment. From the raw material to the finished products, we will make the testing. Only appearance, dimension, tips, spring force, plating and life span are checked ok by professional equipment. the goods can be sent to customers.
Yes, one of our main features is customization. Just providing the drawing, we will make the product specially for you.
SFENG can mainly provide 5 kinds of test probes, including in-circuit test probe, semiconductor test probes, battery contact pins, guide pins and related accessories.
