Double-head Pogo Pin

China BGA test probe diameter 0.35 length 7.7 with B and U tip factory

BGA test probe diameter 0.35 length 7.7 with B and U tip

Item: SF-035B770U15
Material: Beryllium Copper
Finish:Gold platedMore
China Gold plated BGA test probe diameter 0.56 length 5.4 with double B tips factory

Gold plated BGA test probe diameter 0.56 length 5.4 with double B tips

Item: SF-double head pin 0.56*5.4
Material: Beryllium Copper
Finish:Gold platedMore
China Double ended pin contact pogo pin for BGA Test factory

Double ended pin contact pogo pin for BGA Test

Material:
Plunger : BeCu / Au Plated
Plunger : BeCu / Au Plated
Barrel : PhBz / Au Plated
Spring : SWP / Au Plated
Mechanical:
Full Travel :0.8 mm
Spring Force :30g ± 20% at 0.65 mm
Electrical:
Current Rating : 1.0AMore
China Double ended pin contact pogo pin SF-PPA0.31 BY 6.3-BB factory

Double ended pin contact pogo pin SF-PPA0.31 BY 6.3-BB

Material:
Plunger : BeCu / Au Plated
Plunger : BeCu / Au Plated
Barrel : PhBz / Au Plated
Spring : SWP / Au Plated
Mechanical:
Full Travel : 1.1 mm
Spring Force :20g ± 20% at 0.70 mm
Electrical:
Current Rating : 1.0A
Contact Resistance : < 50 mΩ (AVG)More

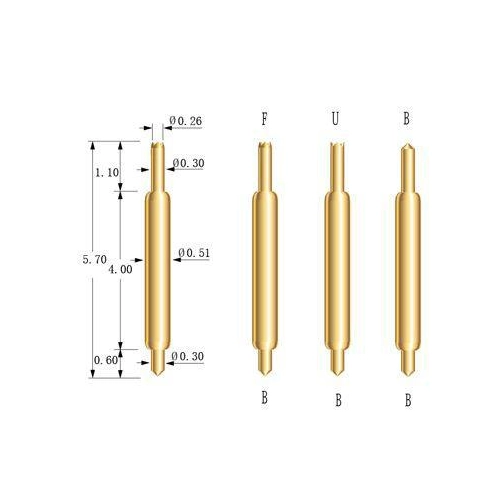

China 5.7mm Length double ended pin for BGA factory

5.7mm Length double ended pin for BGA

Plunger Material(Btip and Btip for double head end): BeCu, Au plated;
Barrel Material: PhBz, Au plated;
Spring: SWP, Au plated;
Working stroke: 0.7mm;
Spring force: 35g±20% ;
Full stroke: 1.1mm;
Lifetime: 100000times;More
China small diameter probe SF-760 for BGA socket test probe factory

small diameter probe SF-760 for BGA socket test probe

small diameter probe SF-760 for BGA socket test probe
size: standard size BGA socket test probe
plunger material:brass gold plated
barrel material:brass gold plated
spring:music wire
sample:we can provide samplesMore
China high precision semiconductor test pin for BGA factory

high precision semiconductor test pin for BGA

semiconductor test pin
size: standard size BGA socket test probe
plunger material:brass gold plated
barrel material:brass gold plated
spring:music wire
sample:we can provide samplesMore
China China low price 030 series round head double-ended pogo pin BGA spring loaded pin factory

China low price 030 series round head double-ended pogo pin BGA spring loaded pin

Material:
Plunger : BeCu / Au Plated
Plunger : BeCu / Au Plated
Barrel : PhBz / Au Plated
Spring : SWP / Au Plated
Mechanical:
Full Travel : 0.75 mm
Spring Force :30g ± 20% at 0.50 mm
Electrical:
Current Rating : 1.0A
Contact Resistance : < 50 mΩ (AVG)
Bandwidth : >25GHz@ -3dBMore
China small diameter probe SF-670 for BGA socket test probe factory

small diameter probe SF-670 for BGA socket test probe

BGA socket test probe
size: standard size BGA socket test probe
plunger material:brass gold plated
barrel material:brass gold plated
spring:music wire
sample:we can provide samplesMore

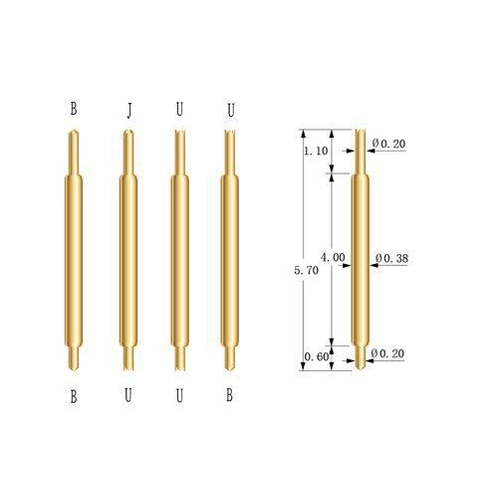

China BGA test probe double-head pin factory

BGA test probe double-head pin

1. material:
Barrel: PhBz, Au plated; Au: 0.3µm, Ni:1-3µm;
Plunger 1: BeCu, Au Plated;  Au: 0.8µm, Ni: 4-6µm;
Plunger 2: SK4F,Au plated; Au: 0.8µm, Ni: 4-6µm;
Spring: SWP, Au plating;
2. Full stroke: 1.2mm;
    Working stroke: 0.8mm;
3. Spring force: 20±7gf @0.80mm;
4. Pin swing: ≤0.03mm ( the pin center line is the measurement reference);
5. Current ration: 2A;
6. Recommended minimum center: 0.7mm;More
China Double Head contact Pogo Pin Connector factory

Double Head contact Pogo Pin Connector

Material:
Plunger : BeCu / Au Plated
Plunger : BeCu / Au Plated
Barrel : PhBz / Au Plated
Spring : SWP / Au Plated
Mechanical:
Full Travel : 0.75 mm
Spring Force :30g ± 20% at 0.50 mm
Electrical:
Current Rating : 1.0A
Contact Resistance : < 50 mΩ (AVG)
Bandwidth : >25GHz@ -3dBMore
China Hot Sell BGA Test Probe Double Head Spring Loaded Pogo Pin factory

Hot Sell BGA Test Probe Double Head Spring Loaded Pogo Pin

Barrel Material:            PhBz;
Plunger 1 tip Material:     Becu;
Plunger 2 tip Material:     Becu;
Spring Material:SWP;
Plating:                    Gold plated over nickel;
Full Stroke:                0.75mm;
Spring Force:               30g or customized;
Contact Resistance:         <50m ohm;
Current Ration:             1A;More
China Best quality double head pogo pin with customized size factory

Best quality double head pogo pin with customized size

Item: Pogo Pin
Material: Brass or Bronze or Becu;
Spring force: 150g or customized;
Current ration: 3A or customized;
Size: Customized;
Packaging: plastic box, into cartons;More
China Double head pogo pin for testing factory

Double head pogo pin for testing

1. material:
Barrel: PhBz, Au plated; Au: 0.3µm, Ni:1-3µm;
Plunger 1: BeCu, Au Plated;  Au: 0.8µm, Ni: 4-6µm;
Plunger 2: SK4F,Au plated; Au: 0.8µm, Ni: 4-6µm;
Spring: SWP, Au plating;
2. Full stroke: 1.2mm;
    Working stroke: 0.8mm;
3. Spring force: 20±7gf @0.80mm;
4. Pin swing: ≤0.03mm ( the pin center line is the measurement reference);
5. Current ration: 2A;
6. Recommended minimum center: 0.7mm;More
China 026 series high precision double head pogo pin factory

026 series high precision double head pogo pin

SF026B530U20:
Material:
Plunger : BeCu / Au Plated
Plunger : BeCu / Au Plated
Barrel : PhBz / Au Plated
Spring : SWP / Au Plated
Mechanical:
Full Travel : 0.60 mm
Spring Force :20g ± 20% at 0.50 mm
Electrical:
Current Rating : 0.5A
Contact Resistance : < 50 mΩ (AVG)
Bandwidth : >17GHz@ -3dB

SF026B330U19:
Material:
Plunger : BeCu / Au Plated
Plunger : BeCu / Au Plated
Barrel : PhBz / Au Plated
Spring : SWP / Au Plated
Mechanical:
Full Travel : 0.50 mm
Spring Force :19g ± 20% at 0.35 mm
Electrical:
Current Rating : 0.5A
Contact Resistance : < 50 mΩ (AVG)
Bandwidth : >23GHz@ -3dB

SF026B570U13:
Material:
Plunger : BeCu / Au Plated
Plunger : BeCu / Au Plated
Barrel : PhBz / AuMore
