Specifications

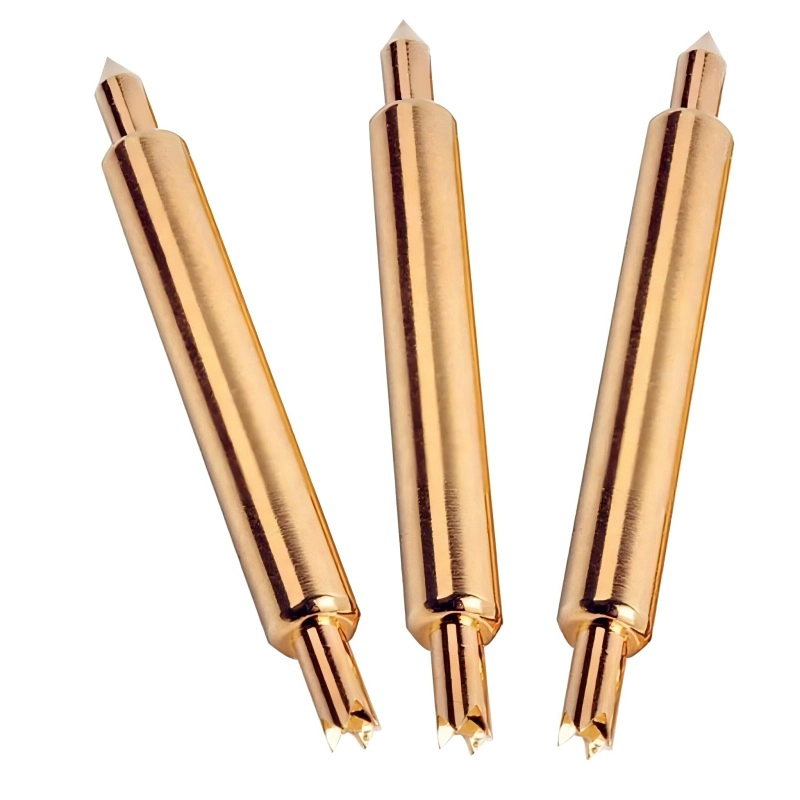

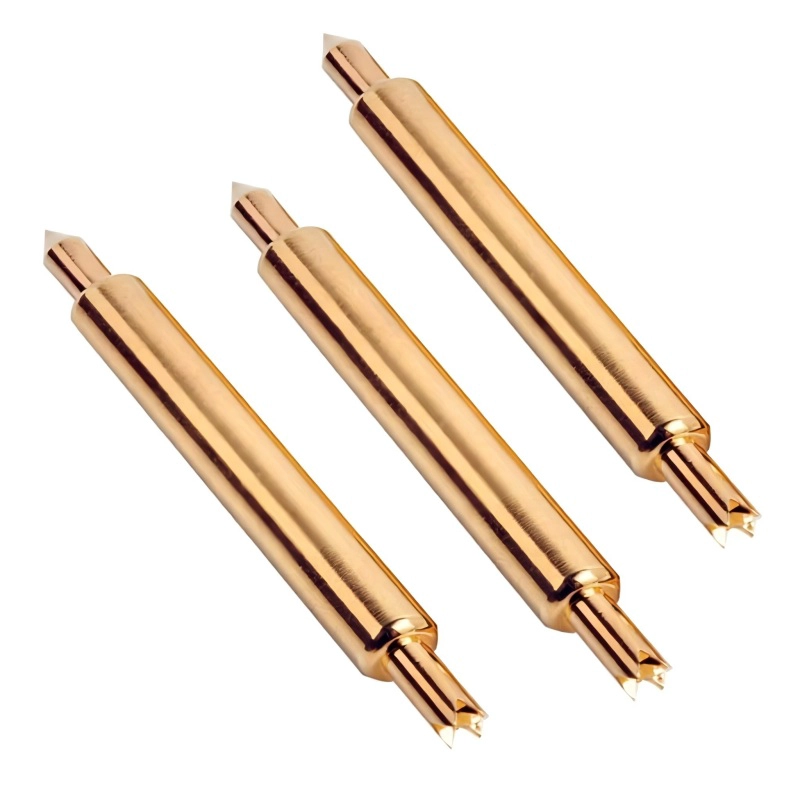

| Product Name | Zhejiang Factory BGA Test Probe with Two Heads |
| Item Number | SF-031B330F28 |
| Material |
Plunger/Plunger:Becu Barrel:PhBz Spring:SWP |
| Plating | Au plating |
| Full Travel | 0.50mm |
| Spring Force | 28g±20% at 0.35mm |
| Current Rating | 1.0A |
| Contact Resistance | <50mΩ(AVG) |
| Bandwidth | >29GHz@-3dB |
Main Products
Spring-loaded pin (single) of PCB, ICT, FCT testing;
Spring pin (connector) to establish a connection between two printed circuit boards for charging, positioning, batteries, semiconductors and amplifiers; interconnect applications;
BGA and semiconductor test double-ended probe;
Universal pin no spring, paint needle, LM pin QZ and VZ series;
High current probe, the probe switches, capacitors needle;
Pier and amplifier; socket / socket;
Other related electronic components, 30 # OK line, jig lock, POM, iron hinges, etc.
Product Flow
Measuring Equipment
Certification
Company Introduction
Exhibition
Customer Visits
Packaging & Shipping
For the orders, we prefer 100% payment before the delivery. You can choose Wire transfer, Pay Pal. USD dollar,Japanese Yuan and RMB are accepted.
Yes, SFENG are pleased to provide free samples for testing before orders. It’s the biggest things that you trust us and our product quality.
SFENG can send the goods out within 3 days after receiving the order. For customized products, we will adjust the lead time accordingly.
SFENG have skilled QC team and professional testing equipment. From the raw material to the finished products, we will make the testing. Only appearance, dimension, tips, spring force, plating and life span are checked ok by professional equipment. the goods can be sent to customers.
Yes, one of our main features is customization. Just providing the drawing, we will make the product specially for you.
SFENG can mainly provide 5 kinds of test probes, including in-circuit test probe, semiconductor test probes, battery contact pins,guide pins and related accessories.
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Model Number:SF-038B570U35
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:0.80mm
Spring Force:35g±20% at 0.65mm
Electrical:
Current Rating:2.0A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>16GHz@-3dB
Model Number:SF-051B570F23
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:1.00 mm
Spring Force:23g±20% at 0.65mm
Electrical:
Current Rating:3.0A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>19GHz@-3dB
MOQ:100pcs
Leadtime:7-10days
Model Number:SF-057F310F25
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:0.70mm
Spring Force:25g±20% at 0.50mm
Electrical:
Current Rating:3.0A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>25GHz@-3dB
MOQ:100pcs
Leadtime:7-10days
