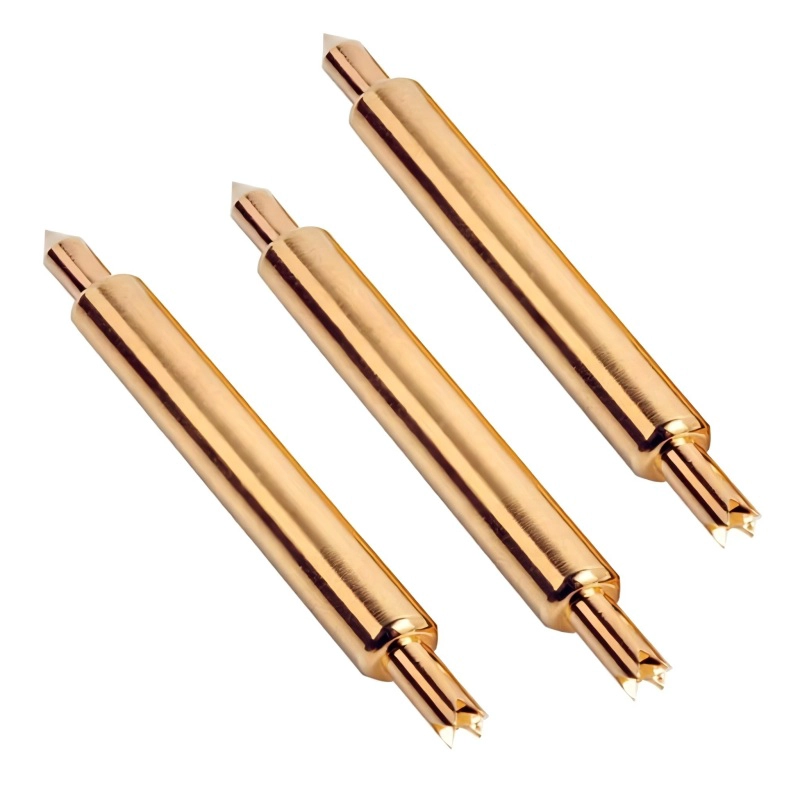

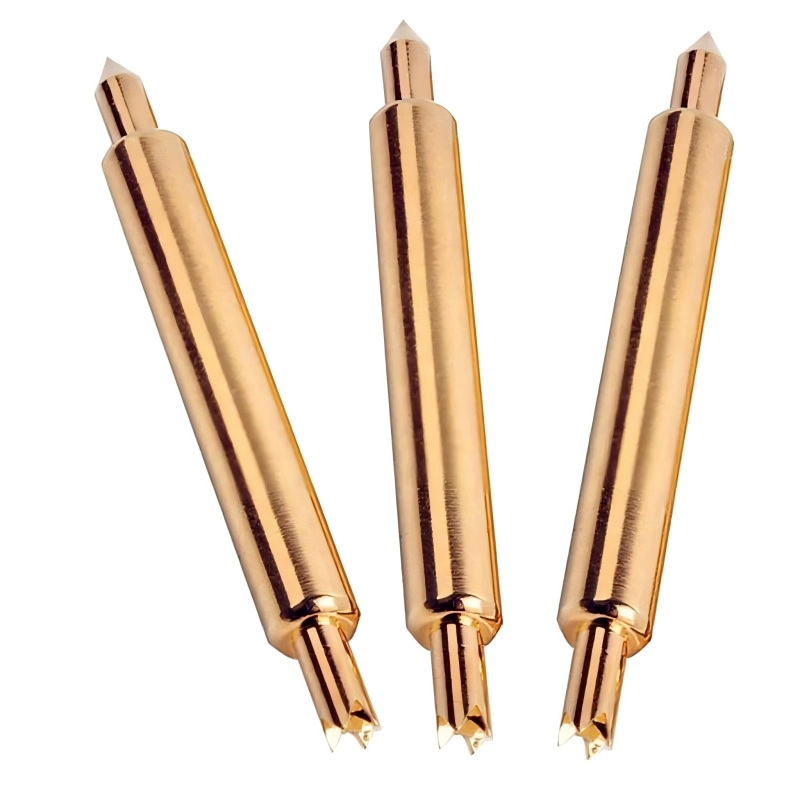

3.10mm Length Doule Ended Pin with B and U Tips
- Model Number:SF-057F310F25
- Material:
- Plunger:BeCu /Au Plated
- Plunger:BeCu /Au Plated
- Barrel:PhBz /Au Plated
- Spring:SWP /Au Plated
- Mechanical:
- Full Travel:0.70mm
- Spring Force:25g±20% at 0.50mm
- Electrical:
- Current Rating:3.0A
- Contact Resistance:<50mΩ(AVG)
- Bandwidth:>25GHz@-3dB
- MOQ:100pcs
- Leadtime:7-10days
- Product Details
Company Profile
1.Suzhou Shengyifurui Electronic Technology Co.,Ltd is the leading test probe manufacturer in China. In 1984 we set up the first factory in Cixi City, Zhejiang Province. With high quality and sweet service, our products are widely used in more than 50
countries in the world.
2.We are dedicate to being the most reliable test probe supplier in China Market.
3.We are committed to provide the most professional products and services to the customers in the world.
4.Products include in-circuit spring test probe, semiconductor spring test probe, battery charging pogo pin and the related accessories.
Factory
Product Specifications
| Product Name | 3.10mm Length Doule Ended Pin with B and U Tips |
| Item Number | SF-057F310F25 |
| Material |
Plunger/Plunger:Becu Barrel:PhBz Spring:SWP |
| Plating | Au plated |
| Full Travel | 0.70mm |
| Spring Force |
25g±20% at 0.5mm |
| Current Rating | 3.0A |
| Contact Resistance | <50mΩ(AVG) |
| Bandwidth | >25GHz@-3dB |
| MOQ | 100pcs |
