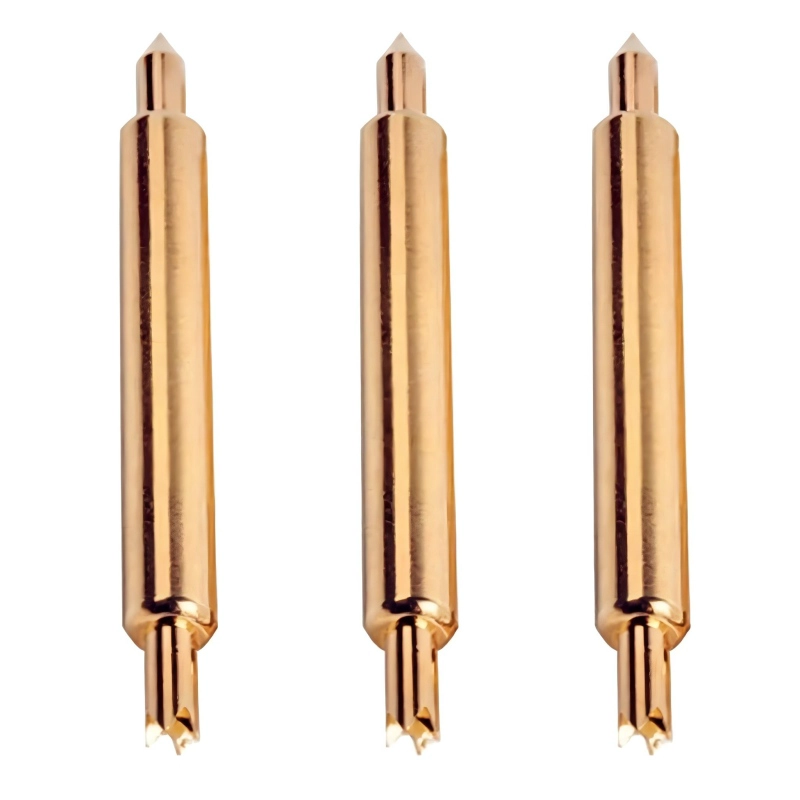

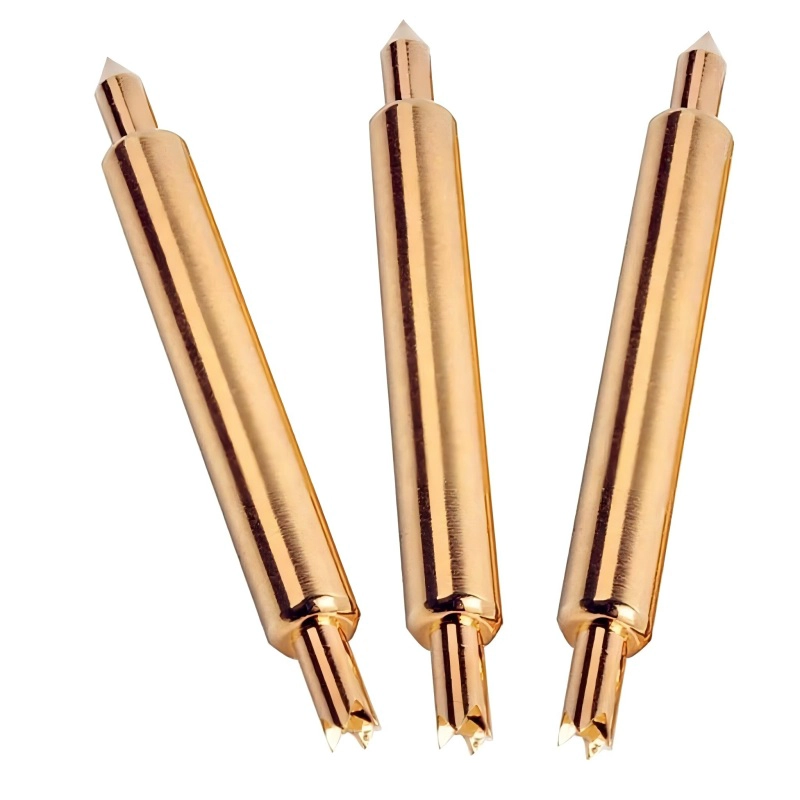

Professional Manufacturer Double Head Becu Pin SF075F430F32
Technical Parameters
| Model Number | SF-075F430F32 |
|
Material |
Plunger:Becu Barrel:PhBz Spring:SWP |
| Plating |
Au plated |
| Current Rating | 4A |
| Contact Resistance | <50mΩ(AVG) |
| Bandwidth | >23GHz@-3dB |
| Full Travel | 1.0mm |
| Spring Force | 32g±20% at 0.75mm |
---Spring loaded pin(single) for PCB,ICT,FCT testing,etc;
---Pogo pin(connector) to establish a(usuallytemporary)connection between two printed circuit boards for charing, locating, Battery, Semiconductor & interconnect Applications;
---Double ended probe or BGA&Semiconductor testing;
---Universal pin without spring,coating pin,LM pin withQZ&VZ series;
----High current probe,Switch probe,Capacitance needle...
---Terminal&receptacle/socket;
---Other related electronic compents,30#OK wire,Jig locks,POM,Ironhinge,etc.
Company Profile
Production Flow
Quality Control
Custom Visits
Global Sales
FAQ
1.What is terms of SFENG payment?
For the orders, we prefer 100% payment before the delivery. You can choose Wire transfer, Pay Pal. USD dollar,Japanese Yuan and RMB are accepted.
Yes, SFENG are pleased to provide free samples for testing before orders. It’s the biggest things that you trust us and our product quality.
SFENG can send the goods out within 3 days after receiving the order. For customized products, we will adjust the lead time accordingly.
SFENG have skilled QC team and professional testing equipment. From the raw material to the finished products, we will make the testing. Only appearance, dimension, tips, spring force, plating and life span are checked ok by professional equipment. the goods can be sent to customers.
Yes, one of our main features is customization. Just providing the drawing, we will make the product specially for you.
SFENG can mainly provide 5 kinds of test probes, including in-circuit test probe, semiconductor test probes, battery contact pins,guide pins and related accessories.
Packaging & Shipping
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Model Number:
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:0.50mm
Spring Force:28g±20% at 0.35mm
Electrical:
Current Rating:1.0A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>29GHz@-3dB
MOQ:100pcs
Leadtime:7-10days
Model Number:SF-057F310F25
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:0.70mm
Spring Force:25g±20% at 0.50mm
Electrical:
Current Rating:3.0A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>25GHz@-3dB
MOQ:100pcs
Leadtime:7-10days
Model Number:SF-051B570F23
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:1.00 mm
Spring Force:23g±20% at 0.65mm
Electrical:
Current Rating:3.0A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>19GHz@-3dB
MOQ:100pcs
Leadtime:7-10days
Model Number:SF-038B570U35
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:0.80mm
Spring Force:35g±20% at 0.65mm
Electrical:
Current Rating:2.0A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>16GHz@-3dB
