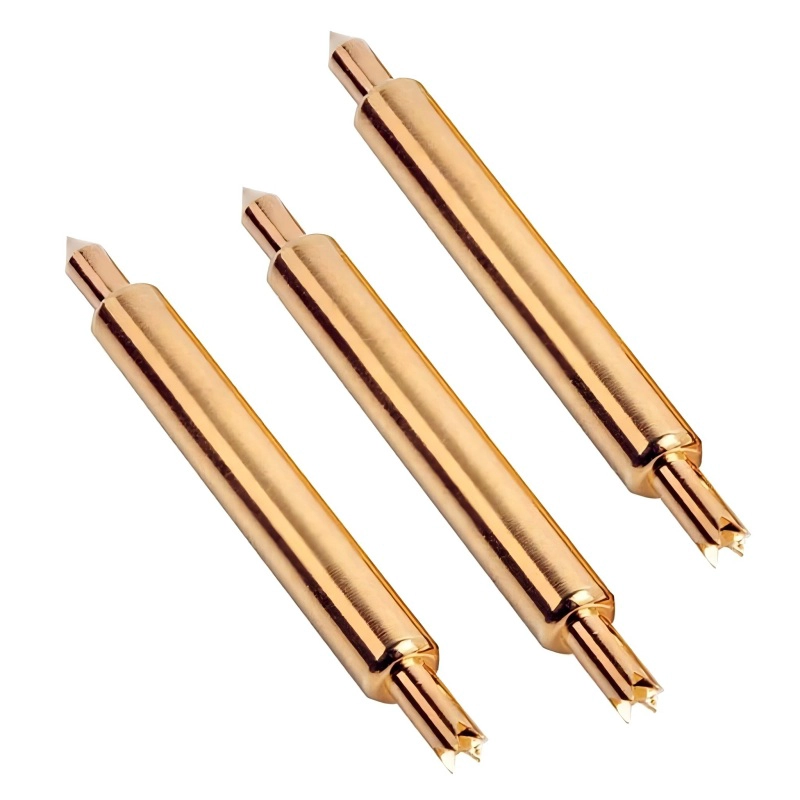

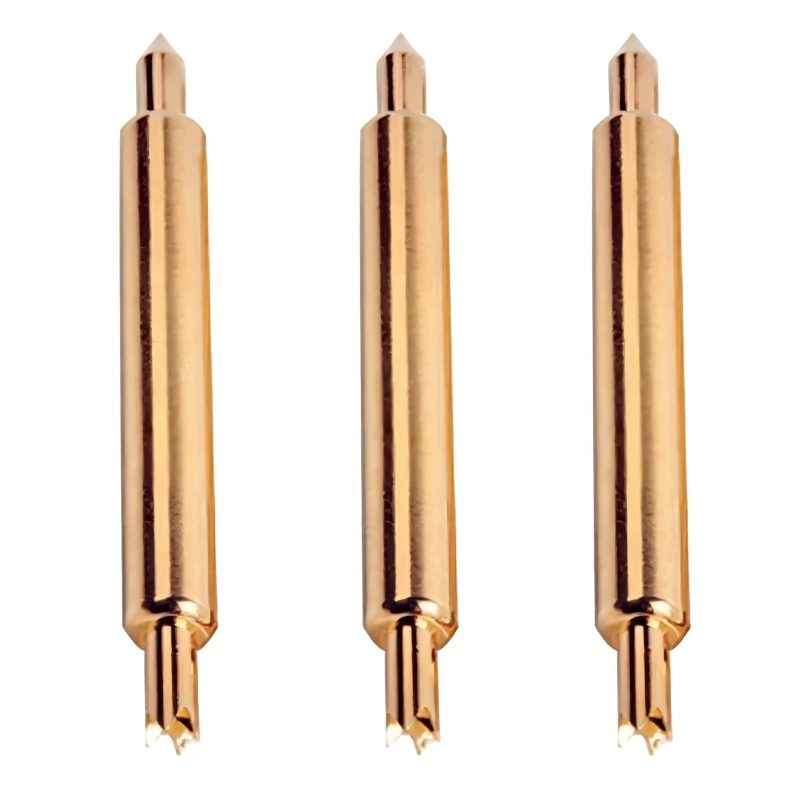

Hot Export 4.46mm Test Probe Pin with Double Head
Product Details
| Item Number | SF-067B446F39 |
| Material |
Plunger/Plunger:Becu Barrel:PhBz Spring:SWP |
| Plating | Au plating |
| Full Travel | 0.90mm |
| Spring Force | 39g±20% at 0.65mm |
| Current Rating | 3.0A |
| Contact Resistance |
<50mΩ(AVG) |
| Bandwidth | >25GHz@-3dB |
| MOQ | 100pcs |
| Leadtime | 7-10days |
Application
Double headed test probes can be used to test the circuit connection of a circuit board. (semiconductor test probe pin price china) By connecting one head to the test instrument and the other head to the circuit node on the circuit board, you can detect whether the circuit on the circuit board is working properly. This is very important for manufacturers of electronic products, as they need to ensure that the circuit connections on the circuit board are correct to ensure the normal operation of the product.
Double headed test probes can be used to test the voltage and current of batteries. (thread pogo pin for battery china) By connecting one head to the testing instrument and the other head to the positive and negative poles of the battery, the voltage and current of the battery can be measured. This is very important for battery manufacturers as they need to ensure that the voltage and current of the battery meet the specifications to ensure the normal use of the product.
Company Introduction
Suzhou Shengyifurui Electronic Technology Co.,Ltd is the leading test probe manufacturer in China. In 1984 we set up the first factory in Cixi City, Zhejiang Province. With high quality and sweet service, our products are widely used in more than 50 countries in the world.
We are dedicate to being the most reliable test probe supplier in China Market.
We are committed to provide the most professional products and services to the customers in the world.
Products include in-circuit spring test probe, semiconductor spring test probe, battery charging pogo pin and the related accessories.
Product Flow
Quality Check
Certification
Our Partners
Packaging and Shipment
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Model Number:
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:0.50mm
Spring Force:28g±20% at 0.35mm
Electrical:
Current Rating:1.0A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>29GHz@-3dB
MOQ:100pcs
Leadtime:7-10days
Model Number:SF-057F310F25
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:0.70mm
Spring Force:25g±20% at 0.50mm
Electrical:
Current Rating:3.0A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>25GHz@-3dB
MOQ:100pcs
Leadtime:7-10days
Model Number:SF-051B570F23
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:1.00 mm
Spring Force:23g±20% at 0.65mm
Electrical:
Current Rating:3.0A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>19GHz@-3dB
MOQ:100pcs
Leadtime:7-10days
Model Number:SF-038B570U35
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:0.80mm
Spring Force:35g±20% at 0.65mm
Electrical:
Current Rating:2.0A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>16GHz@-3dB
Model Number:SF-031B300U22
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:0.75mm
Spring Force:22g±20% at 0.50mm
Electrical:
Current Rating:1.0A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>29GHz@-3dB
Model Number:SF-031B255U18
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:0.60mm
Spring Force:18g±20% at 0.45mm
Electrical:
Current Rating:1.0A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>27GHz@-3dB
Model Number:SF-020B240J13
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:0.50mm
Spring Force:13g±20% at 0.45mm
Electrical:
Current Rating:0.5A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>25GHz@-3dB
Model Number:SF-020J220U
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:0.50mm
Spring Force:13g±20% at 0.45mm
Electrical:
Current Rating:0.5A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>25GHz@-3dB
Material:
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Mechanical:
Full Travel:0.65mm
Spring Force:14g±20%at 0.50mm
Electrical:
Current Rating:0.5A
Contact Resistance:<50mΩ(AVG)
Bandwidth:>19GHz@-3dB
MOQ:100pcs
Leadtime:7-10days
Plunger:BeCu /Au Plated
Plunger:BeCu /Au Plated
Barrel:PhBz /Au Plated
Spring:SWP /Au Plated
Full Travel:0.80mm
Spring Force :21g±20%at 0.50 mm
Current Rating:0.5A
Contact Resistance:<50mΩ(AVG)
Bandwidth :>15GHz@-3dB
MOQ:100pcs
Leadtime:7-10days
Material:
Plunger : Becu / Au on Ni Plated
Plunger : SK4 / Au on Ni Plated
Barrel : PhBz / Au on Ni Plated
Spring : SWP
Mechanical:
Full Travel : 6.8 mm
Electrical:
Contact Resistance : 100mohm
Material:
Plunger : Becu / Gold Plated
Plunger : Becu / Gold Plated
Barrel : PhBz / Gold Plated
Spring : Music wire / Gold Plated
Mechanical:
Full Travel : 1.10 mm
Electrical:
Contact Resistance : 100mohm
Cycle time: 100,000times
Item: Double head pin SF-0.86*18.5-BB
Material:
-Barrel: Ph, Au on Ni plated
-Plunger: Becu, Au on Ni plated
-Spring: SWP
Packaging: plastic box into cartons
Payment term: 100%TT in advance
Item: Double Head Pin SF-1.36*21.2-JJ
Material:
Barrel: Brass, Au on Ni plated
Plunger: Becu, Au on Ni plated
Spring: SUS
Size: ø1.36*21.2mm
Current Rating: 3A
Contact Resistance: 80mΩ
Full Stroke: 6.50mm
Rated Stroke: 4.30mm
Spring force: 70±10gf@ load 4.30mm
Packing: Plastic box and loaded into carton
Payment term: 100% TT in advance
Item: SF-1.36*20.8-JJ
Material:
-Barrel: Brass, Au on Ni plated
-Plunger: Becu, Au on Ni plated
-Spring: SUS
Packaging: plastic box into cartons
Payment term: 100%TT in advance
Item:SF-PP2.65*14.9
Material:
Barrel: Phosphor Bronze, Au on Ni plated
Plunger: Brass, Au on Ni plated
Spring: SUS304
Current Rating: 5A
Contact Resistance:40mΩ
Full Stroke: 1.7mm
Spring Force: 300g
Packing: Plastic box and loaded into carton
Item:SF-GB031D570D20-BB-A6
Material: Music Wire, Phosphor Copper, Becu
Finish: Gold-plated
Size: dia.0.31*5.7
Spring force:20g
Packing: Plastic box and loaded into carton
Brand:SFENG
Item number:SF6592
Size: dia0.31*L3.30mm
Plunger:Becu
Barrel:Phosphor Copper
Spring:SWP
Finish:Gold plated
Packing:Plastic bag and loaded into carton box
Brand:SFENG
Item number:SF6623
Size: dia0.38*L5.7mm
Plunger:Becu
Barrel:Phosphor Copper
Spring:Music wire
Finish:Gold plated
Packing:Plastic bag and loaded into carton box
