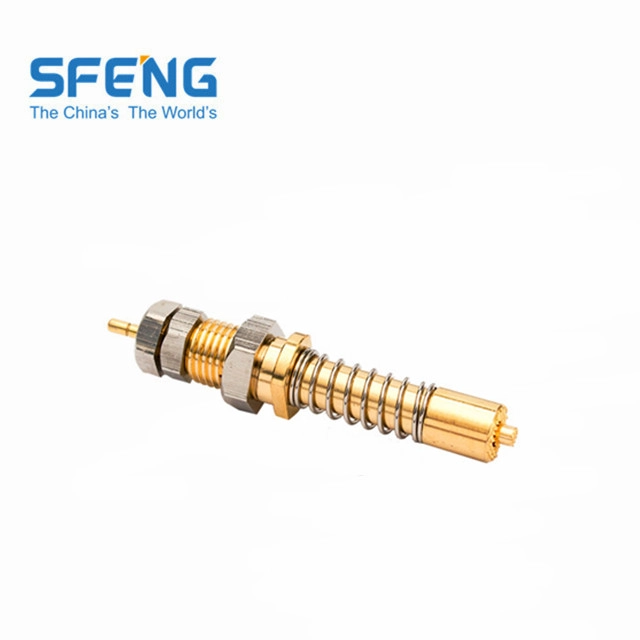

30A High current probe gold plating for Lithium Battery Testing
- Item: SF-PV1-H-H M7X24.5
- Barrel material: Brass
- Spring material: SUS304
- Finish: gold plating
- Product Details
Specifications
|
Brand |
SFENG |
|
Model |
SF-PV1-H-H M7X24.5 |
|
Plunger material |
Beryllium copper |
|
Barrel material |
Brass |
|
Spring material |
SUS304 |
|
Current probe spring force |
550g@8mm |
|
Voltage probe spring force |
250g@2mm |
|
Rating current |
30A |
|
MOQ |
100 pcs |
|
Delivery time |
15 days |

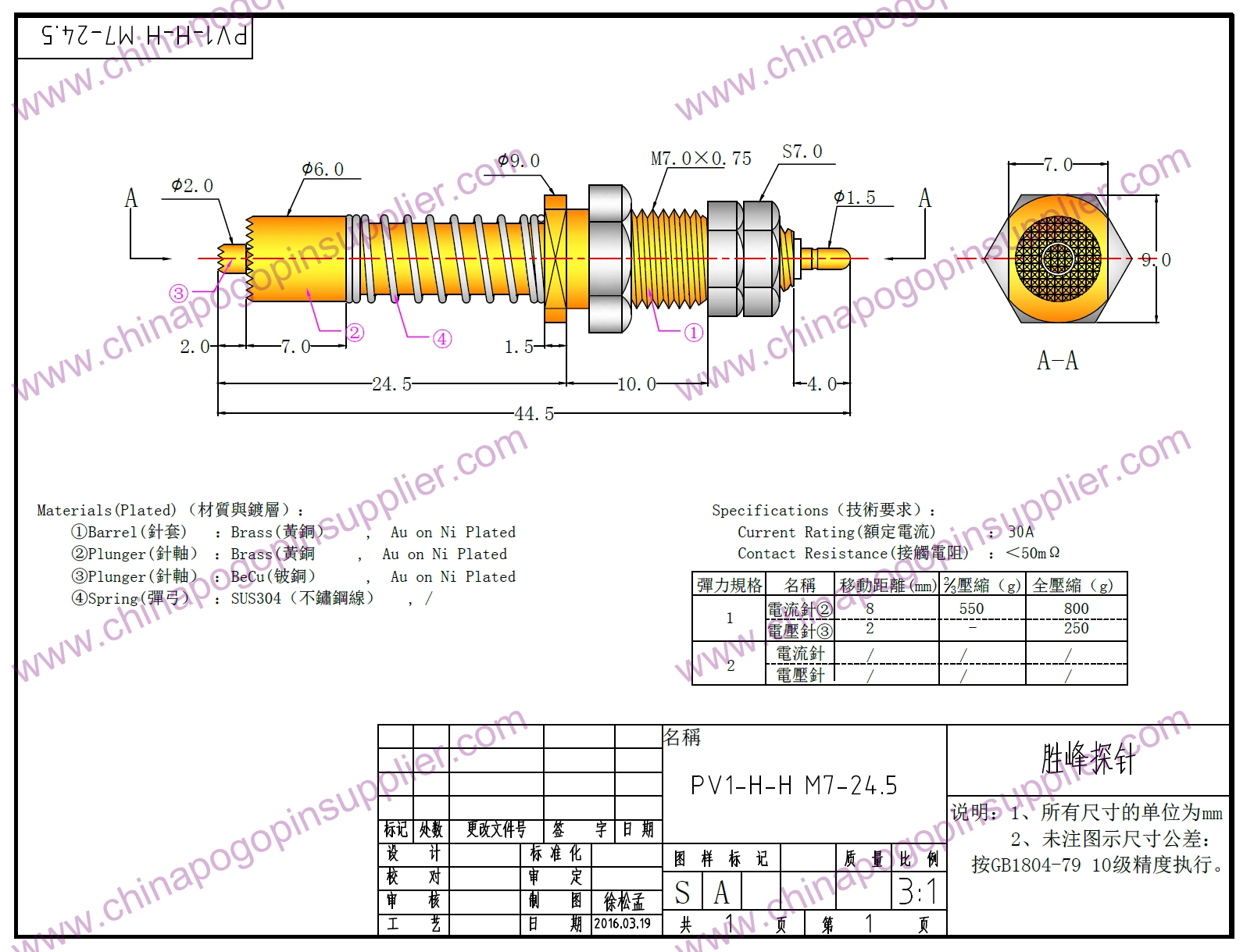

Drawing & Photo for real product
Our factory
Main products
Spring-loaded pin (single) of PCB, ICT, FCT testing;
Spring pin (connector) to establish a connection between two printed circuit boards for charging, positioning, batteries, semiconductors and amplifiers; interconnect applications;
BGA and semiconductor test double-ended probe;
Universal pin no spring, paint needle, LM pin QZ and VZ series;
High current probe, the probe switches, capacitors needle;
Pier and amplifier; socket / socket;
Other related electronic components, 30 # OK line, jig lock, POM, iron hinges, etc.
Production process
Testing equipment
Packing & delivery
