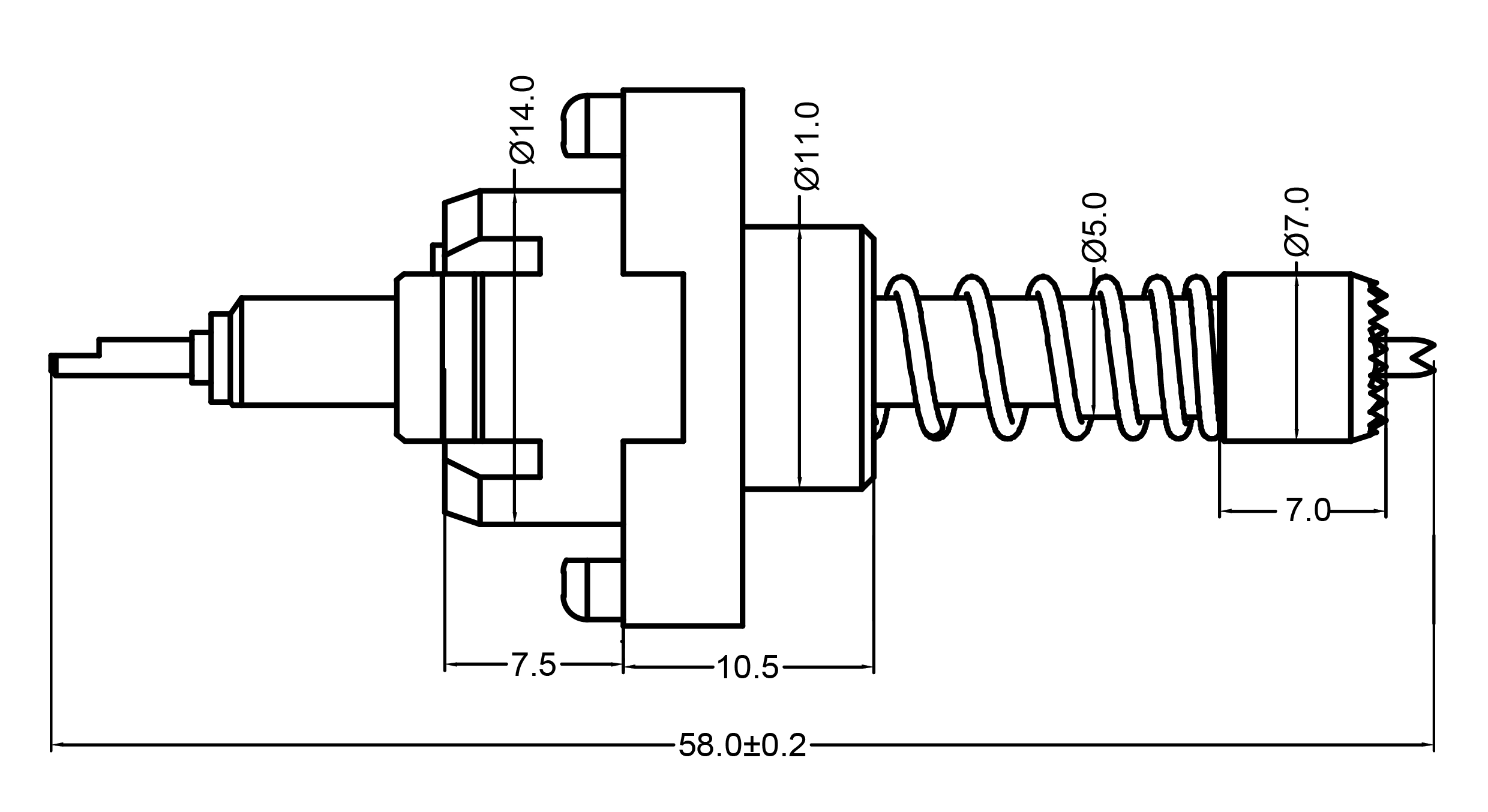

6A Gold Plated Current Pin for Lithium Battery Formation and Capacity Grading
Technical Parameters
| Model Number | SF58-7.0-Brass Charging Pogo Pin |
| Material | Copper Alloy |
| Surface Plating | Partial gold-plated over nickel |
| Mechanical Durability | ≥30000cycles |
| Operating Temperature | -40℃/+105℃ |
| Current Rating | 6A |
| Contact Resistance(Initial) | ≤5mΩ |
| Maximum Travel | ≥8.0mm |
| Recommended Working Travel | 1000g±20%(5.0mm) |
---Spring loaded pin(single) for PCB,ICT,FCT testing,etc;
---Pogo pin(connector) to establish a(usuallytemporary)connection between two printed circuit boards for charing, locating, Battery, Semiconductor & interconnect Applications;
---Double ended probe or BGA&Semiconductor testing;
---Universal pin without spring,coating pin,LM pin withQZ&VZ series;
---High current probe,Switch probe,Capacitance needle...
---Terminal&receptacle/socket;
---Other related electronic compents,30#OK wire,Jig locks,POM,Ironhinge,etc.
Quality Control
Application
Our Service
1.Reply your inquiry within 24 working hours.
2.Customized design is available,OEM are welcomed.
3.Delivery the probe pins to our clients all over the world with speed and precision.
4.Provide the competitive price with high quality to our client.
Packing Picture
Shipment
FAQ
For the orders, we prefer 100% payment before the delivery. You can choose Wire transfer, Pay Pal. USD dollar,Japanese Yuan and RMB are accepted.
Yes, SFENG are pleased to provide free samples for testing before orders. It’s the biggest things that you trust us and our product quality.
SFENG can send the goods out within 3 days after receiving the order. For customized products, we will adjust the lead time accordingly.
SFENG have skilled QC team and professional testing equipment. From the raw material to the finished products, we will make the testing. Only appearance, dimension, tips, spring force, plating and life span are checked ok by professional equipment. the goods can be sent to customers.
Yes, one of our main features is customization. Just providing the drawing, we will make the product specially for you.
SFENG can mainly provide 5 kinds of test probes, including in-circuit test probe, semiconductor test probes, battery contact pins,guide pins and related accessories.
