Product Specification
|
Brand |
SFENG |
|
Item number |
SF-PV1-H-H(2.9*40) |
|
Plating |
Au plated |
|
Lead time |
10 working days after receiving the payment |
Product drawing
Product Image
Our Service
1. We can reply yourinquiry within 24 working hours.
2. Customizeddesign is available and OEM are welcomed.
3. We can deliverthe probe pins to our clients all over the world with speed and precision.
4. We can providethe lowest price with high quality product to our client .
Main Products
Spring loaded pin (single) for PCB, ICT, FCT testing etc;
Pogo pin (connector) to establish connection between two printed circuit boards for charging, locating, Battery, Semiconductor & Interconnect applications;
Double ended probe for BGA and Semiconductor testing;
Universal pin without spring, coating pin, LM pin with QZ and VZ series;
High current probe, Switch probe, Capacitance needle;
Terminal & receptacle /socket;
Other related electronic components, 30# OK wire, Jig locks, POM, Iron hinge etc

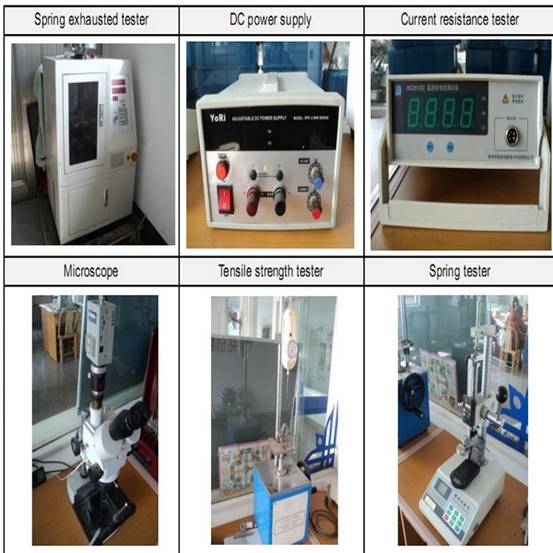

Quality Control
Packing Picture
Factory Image
Tel:008613862105944
Contact Person:Eve
PDF Show:PDF
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Model: SF-PV1-H-H M7.0x44.5
Material: Copper Alloy
Current Rating: 30A
Contact Resistance (Initial)：≤1mΩ
Maximum Travel：≥8.0mm
Recommended Working Travel：550g±20%(5mm)
Model: SF-2.9X36-5.0
Material: Copper Alloy
Current Rating: 5A
Contact Resistance (Initial)：≤5mΩ
Maximum Travel：≥4.5mm
Recommended Working Travel：580g±20%(2.5mm)
Model: SF33.4-2.0
Material: Copper Alloy
Current Rating: 5A
Contact Resistance (Initial)：≤20mΩ
Maximum Travel：≥6.4mm
Recommended Working Travel：100g±20%(4.3mm)
Material: Copper Alloy
Surface Plating：Partial gold-plated over nickel
Current Rating: 3A
Maximum Travel ≥4.5mm
Recommended Working Travel: 180g±20%（3.0mm）
Contact Resistance (Initial)：≤20mΩ
Operating Temperature：-40℃/+105℃
Material：Copper Alloy
Finishes：Partial gold-plated over nickle
Brand: SFENG
Model: PV1-H-H 5.7X24.5
Current rating: 30A
Lifetime: 300,000 times
Plating:Gold plated
Full stroke: 8.0mm
Rated stroke: 3.0mm
Spring force: 550±15% gf @ load 5.3mm
Lifetime: 300,000 times
Plating:Gold plated
Full stroke: 8.0mm
Rated stroke: 3.0mm
Spring force: 2000±20% gf @ load 5.0mm
Lifetime: 300,000 times
Brand: SFENG
Model: PV1-H-H ø4.2*44.5
Material: Brass
Recommend travel: 2.0mm
MOQ: 100pcs
Payment term: 100% TT in advance
Brand: SFENG
Model: PV1-H-H ø4.2*44.5
Material: Brass
Recommend travel: 2.0mm
MOQ: 100pcs
Payment term: 100% TT in advance
Item Code:SF-15*68.5
Material: Copper Alloy
Current:60A
Mechanical Life Exceeds： ＞30000times
MOQ: 100pcs
Payment: T/T 100% in advance
Brand: SFENG
Model: SF-9.0*62.0
Material: Copper Alloy
Finishes: Plated gold over Nickle
Current rating: 60A
Full Compression Travel: 10.0mm
Spring force: 4200g±20%
MOQ: 100pcs
Brand: SFENG
Model: PV1-H-H M11*26.5
Material:
Plunger 1 (dia.1.5): Becu, Gold plating
Plunger 2 (dia.10): Brass, Gold plating
Barrel: Brass, Ni plated
Spring: SUS304
MOQ: 100pcs
Brand:SFENG
Item number: SF-PV1-H-H 1.78*35.6
Material:
Barrel: Phosphorous copper, Au on Ni plated
Plunger: Bece, Au on Ni plated
Plunger: Becu: Becu, Au on Ni plated
Current Rating: 3A
Contact Resistance: ＜50mΩ
Packing:Plastic bag and loaded into carton box
Brand:SFENG
Item number: PV1-H-H5.7*24.5
Size:dia6.0*L44.5mm
Material:
Barrel: Brass, Au on Ni plated
Plunger: Brass, Au on Ni plated
Plunger: Brass: Becu, Au on Ni plated
Spring: SUS304
Current Rating: 30A
Contact Resistance: ＜50mΩ
Packing:Plastic bag and loaded into carton box
Item: SF-32*83.5
Materials:Brass, Becu, PEEK, SUS304
Surface:Au plated
Size:dia.12*83.50mm
Current 2A
Packaging: plastic box, into cartons
Item:SF-PV1-H-H
Material: Brass, SUS304, PEEK
Finish: Au plated
Size: ø5.7*44.5mm
Current Ration: 30A
Packing: Plastic box and loaded into carton
Item:SF3028
Material: Brass, SUS304, PEEK
Finish: Au plated
Size: ø4.2*44.5mm
Current Ration: 10A
Packing: Plastic box and loaded into carton
Item:SF-2.9*36
Material: Plunger: Becu; AU Planting
Barrel: Brass; AU Planting
Spring: SWP
Barrel: PEEK
Size:ø2.9*36mm
Current ration: 6A;
Resistance: ＜10mΩ
Temperature：△T＜20℃
Packaging: plastic box into cartons;
Brand:SFENG
Item number:SF2735
Size:dia26.0*L79.0mm
Weight:0.05kg
Packing:Plastic bag and loaded into carton box
