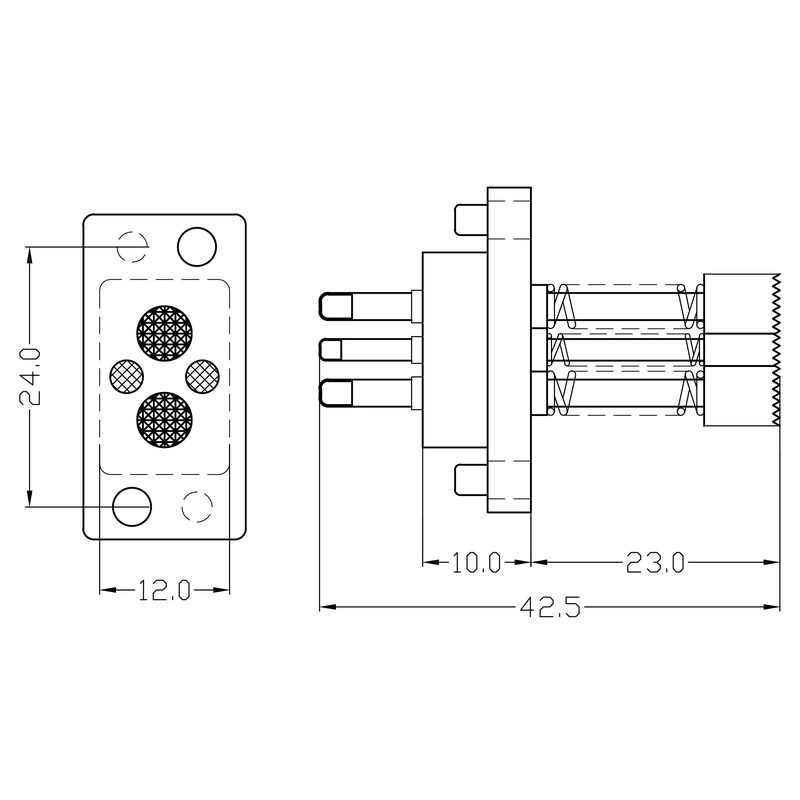

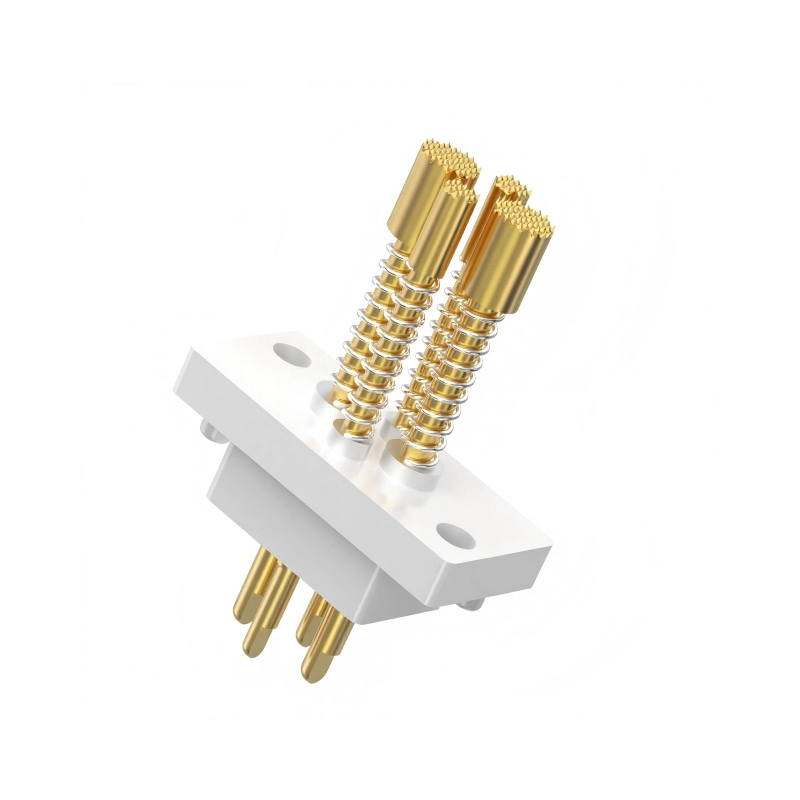

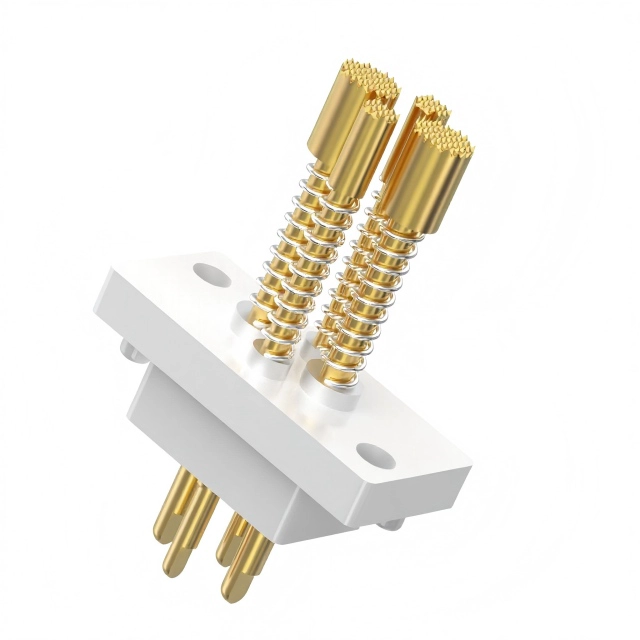

China Famous Brand SFENG 15A Customized Battery Pin
Technical Parameters

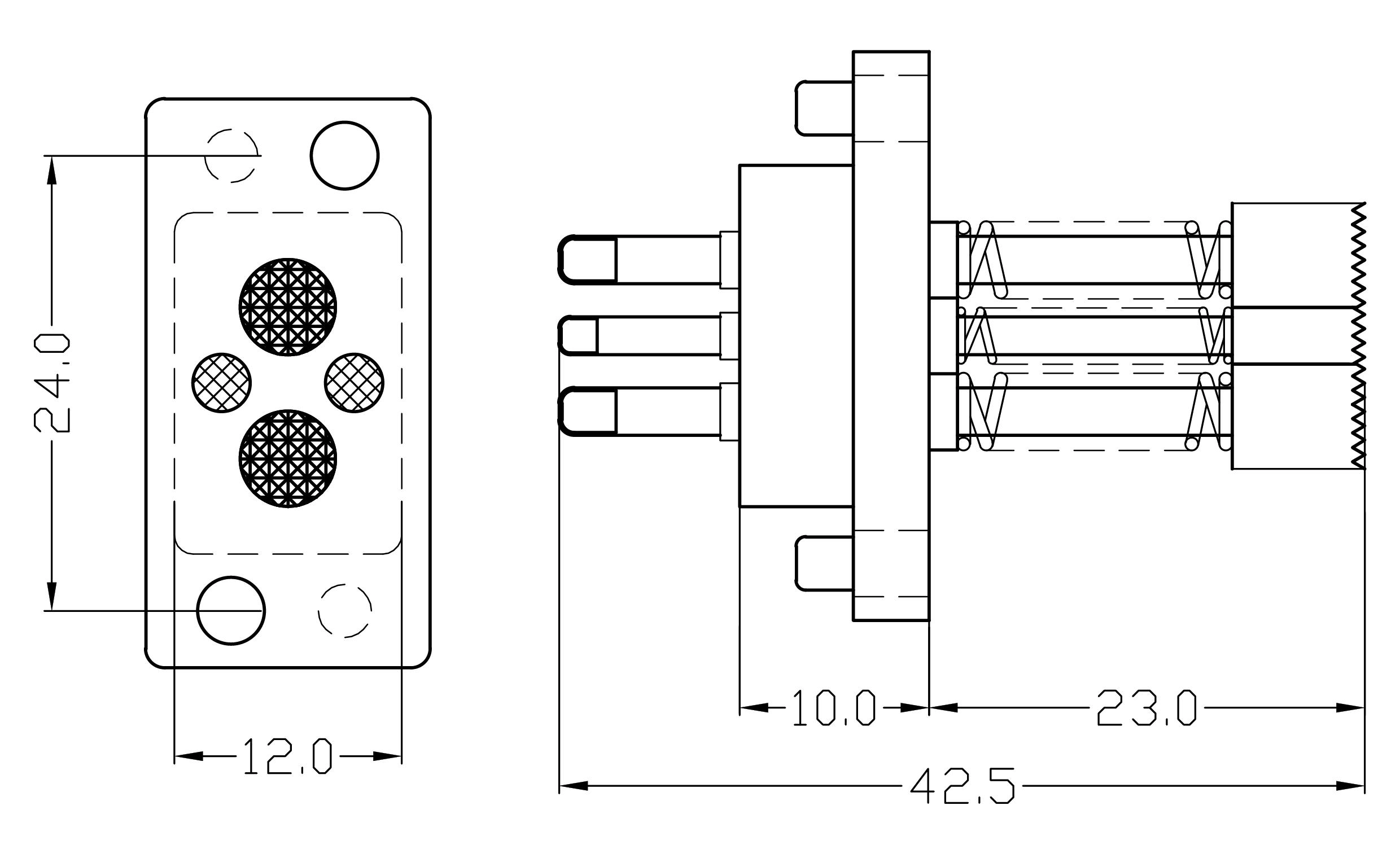

| Model Number | SF42.5-6.0-3.0 |
| Material | Copper Alloy |
| Surface Plating | Partial gold-plated over nickel |
| Mechanical Durability | ≥30000cycles |
| Operating Temperature | -40℃/+105℃ |
| Current Rating | 15A |
| Contact Resistance(lnitial) | ≤10mΩ |
| Maximum Travel | ≥7.0mm |
| Recommended Working Travel | 3200g±20%(6.0mm) |
Main Products
---Spring loaded pin(single) for PCB,ICT,FCT testing,etc;
---Pogo pin(connector) to establish a(usuallytemporary)connection between two printed circuit boards for charing, locating, Battery, Semiconductor & interconnect Applications;
---Double ended probe or BGA&Semiconductor testing;
---Universal pin without spring,coating pin,LM pin withQZ&VZ series;
---High current probe,Switch probe,Capacitance needle...
---Terminal&receptacle/socket;
---Other related electronic compents,30#OK wire,Jig locks,POM,Ironhinge,etc.
Product Flow
Company Profile
Our Service
1.Reply your inquiry within 24 working hours.
2.Customized design is available,OEM are welcomed.
3.Delivery the probe pins to our clients all over the world with speed and precision.
4.Provide the competitive price with high quality to our client.
Shipment
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:30A
Contact Resistance(Initial):≤1mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:550g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:40A
Contact Resistance(Initial):≤1mΩ
Maximum Travel:≥9.0mm
Recommended Working Travel:2500g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:5A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥4.5mm
Recommended Working Travel:580g±20%(2.5mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:20A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥9.0mm
Recommended Working Travel:2000g±20%(4.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:10A
Contact Resistance(Initial):≤10mΩ
Maximum Travel:≥7.5mm
Recommended Working Travel:450g±20%(5.0mm)
