Factory Sales Be Cu Round Tip Pogo Pin Top Quality FCT Test Probe Pin

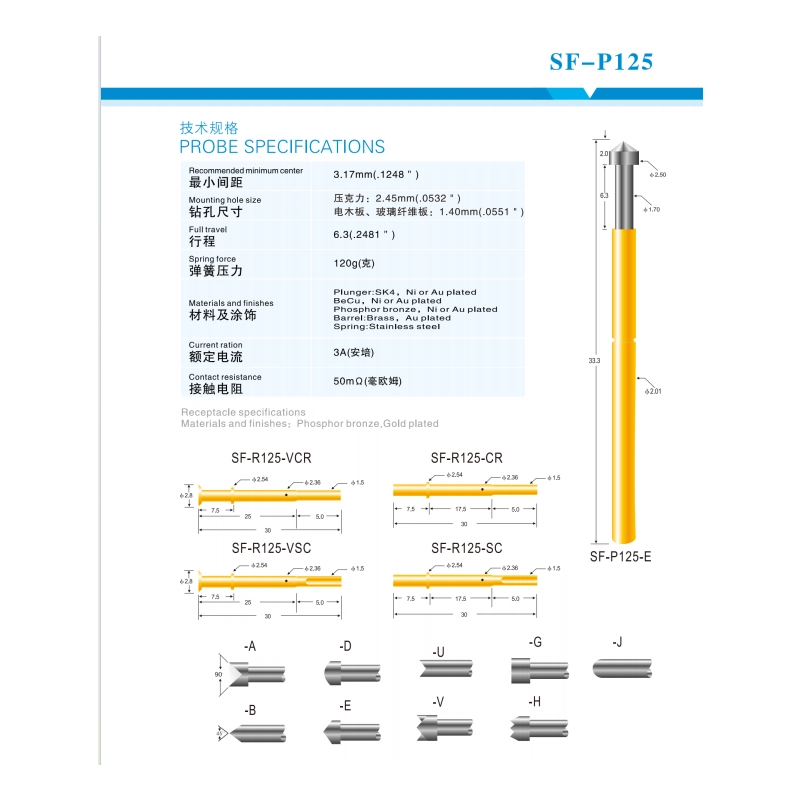

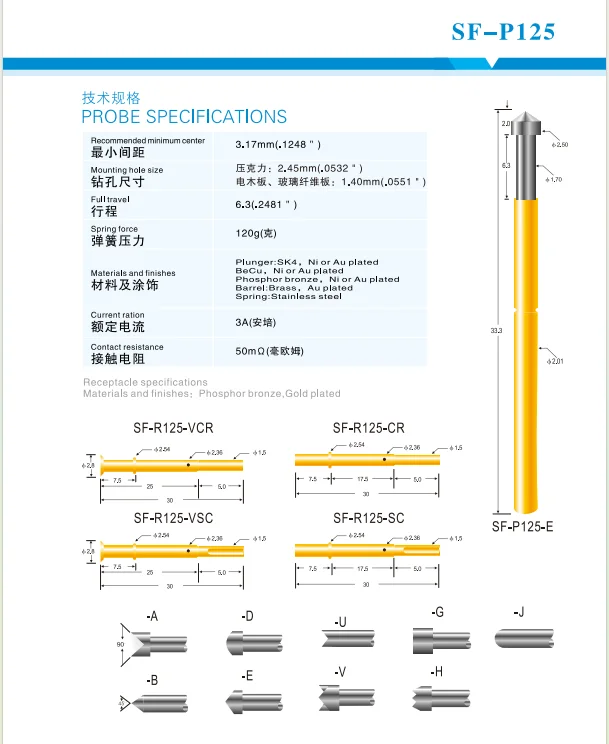

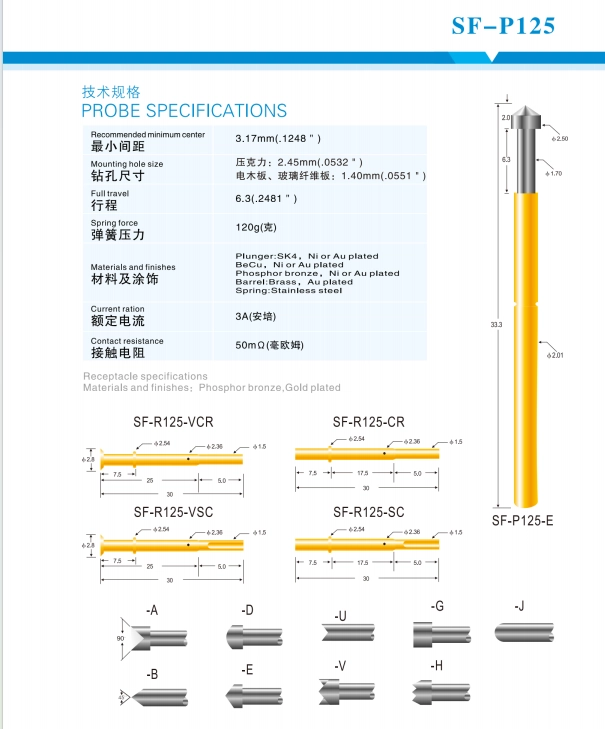

Test Probe Specifications
| Model Number | SF-P125-Pogo Pin |
| Recommended minimum center |
3.17mm |
| Mounting hole size |
Acrylic:2.45mm; Bakelite, fiberglass board:1.40mm |
| Full Travel | 6.3 |
| Spring force | 120g |
| Materials and finishes |
Materials and finishesPlunger:SK4, Ni plated Barrel:Brass, Au plated Spring:Stainless steel |
| Current ration | 3A |
| Contact resistance | 50mΩ |

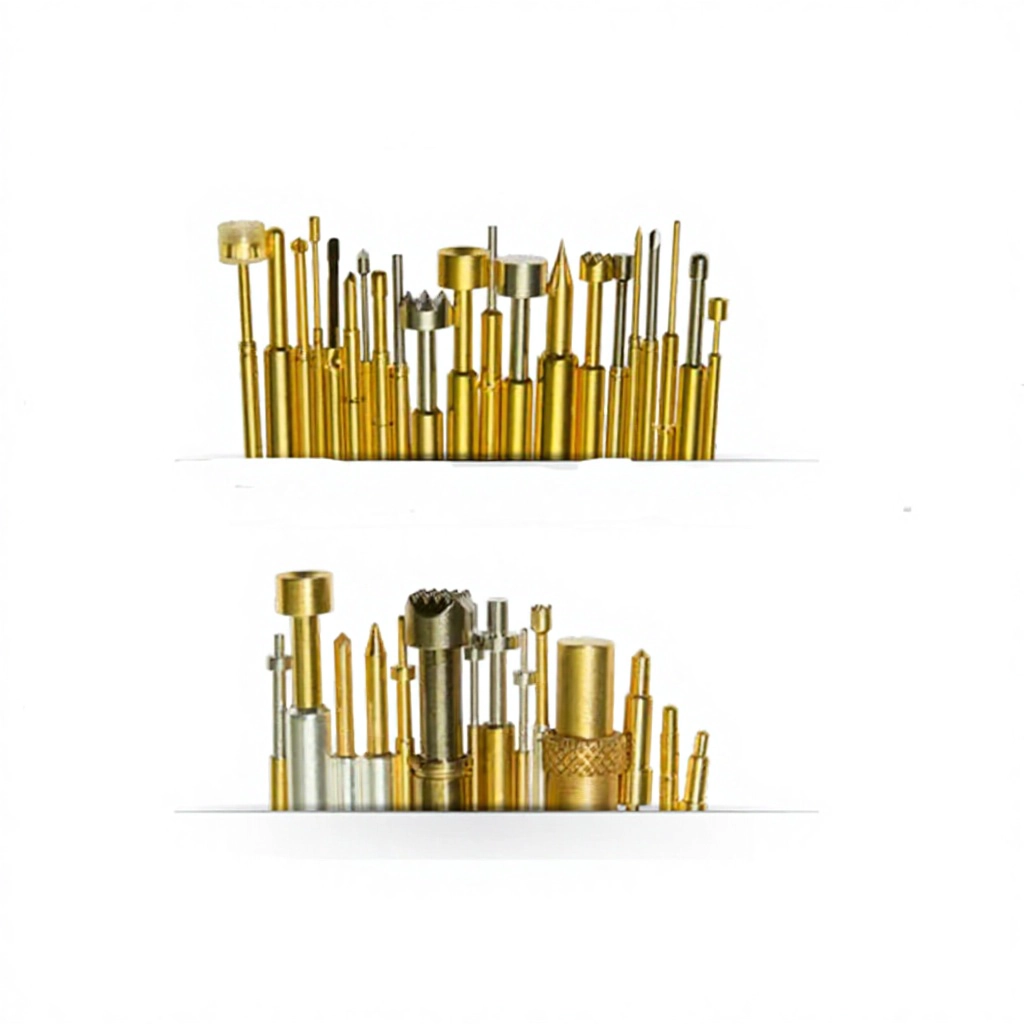

Main Products
1.Terminal & receptacle /socket;
2.High current probe, Switch probe, Capacitance needle;
3.Spring loaded pin (single) for PCB, ICT, FCT testing etc;
4.Double ended probe for BGA and Semiconductor testing;
5.Universal pin without spring, coating pin, LM pin with QZ and VZ series;
6.Other related electronic components, 30# OK wire, Jig locks, POM, Iron hinge etc
7.Pogo pin (connector) to establish connection between two printed circuit boards for charging, locating, Battery,
Semiconductor&Interconnect applications;
If you require custom items, please feel free to send us inquiry for more solutions.
Product Flow
Measuring Equipment
Certification
Company Introduction
Exhibition
Customer Visits
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Brand：SFENG
Model：GP6.0*39
Size：L.37.50mm
Material：Brass
Finish：Ni-plated
Packing：Plastic box and loaded into carton
MOQ：100pcs
Leadtime：7-10days
Brand：SFENG
Model：GP6.0*50-M3
Size：L.50mm
Material：Brass
Finish：Ni-plated
Packing：Plastic box and loaded into carton
MOQ:100pcs
Leadtime:7-10days
Type: Guide Pin
Model: SF-GP6.0x59
Material: Brass and SUS
Plating: Ni Plated
Rated travel: 23.00mm
Spring force: 450±90gf@ load 23.00mm
MOQ:100pcs
Leadtime:7-10days
Type: Guide Pin
Model: SF-GP6.0*64 with hat
Material: Brass and SUS
Plating: Ni Plated
Rated travel: 1.65mm
Spring force: 1590±15%gf@ load 1.65mm
MOQ:100pcs
Leadtime:7-10days
