| Product Description |
Guide pins are cylindrical components typically made from high-strength materials like hardened or stainless steel. They offer alignment and guidance support between two or more structures during assembly or operation.
A guide pin, also known as an alignment or locating pin, are cylindrical components that aid in the alignment and positioning of mold halves in injection molding machines.

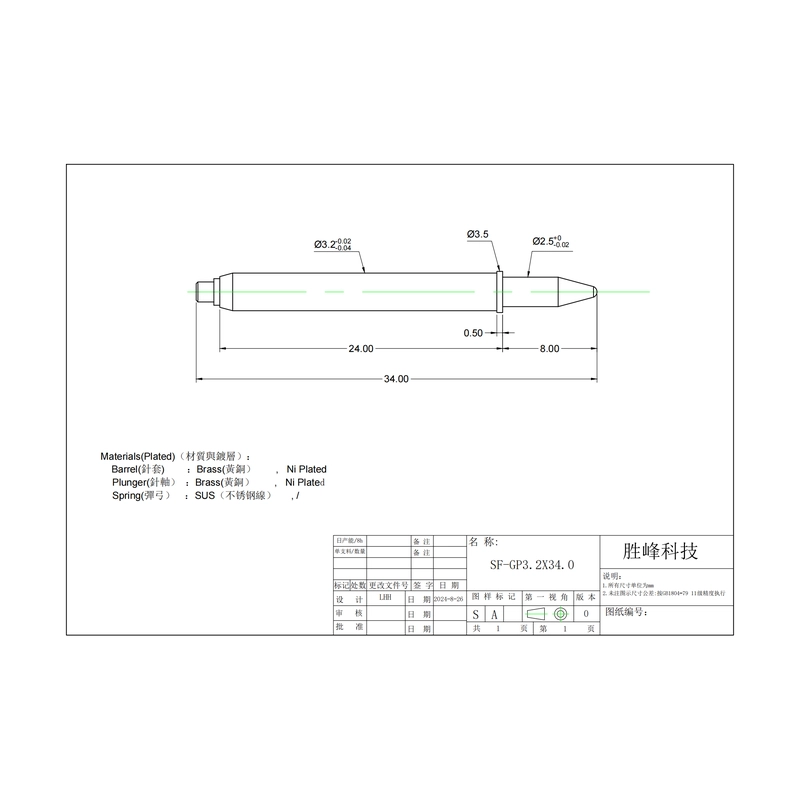

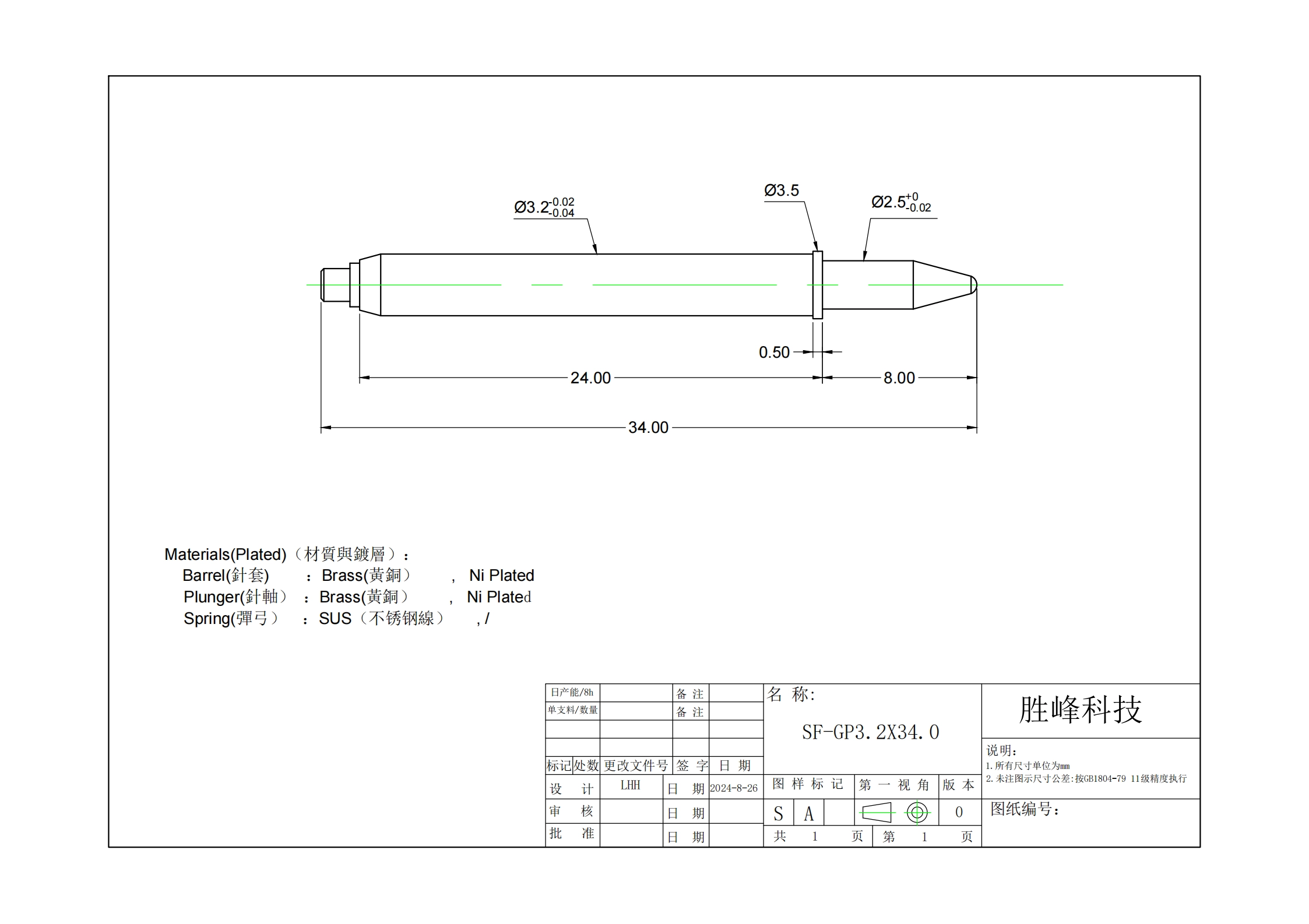

| Product Drawing |
| Product Parameters |

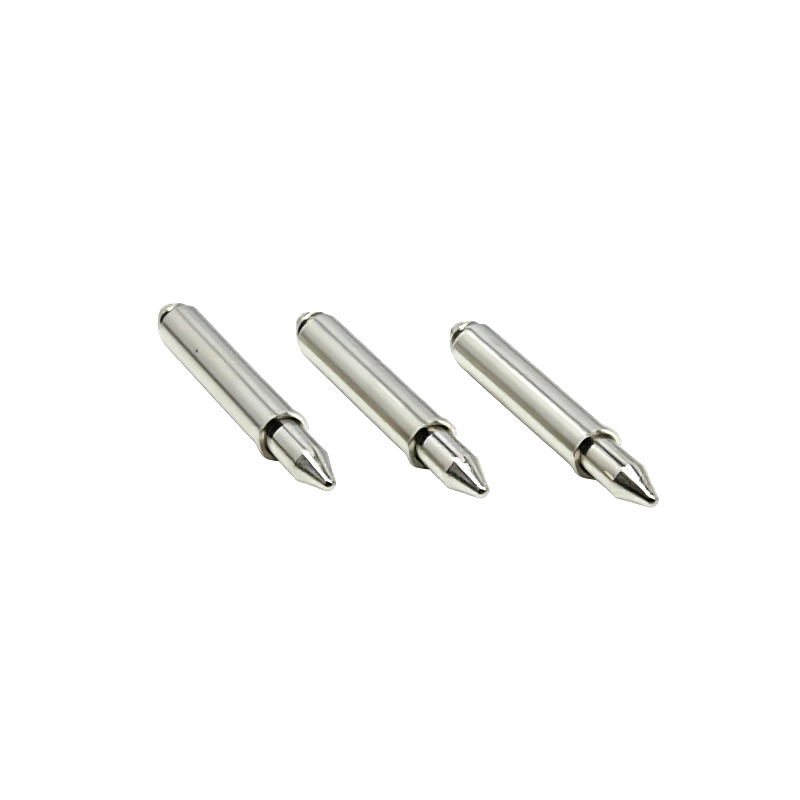

| Poduct Name | Free Sample Stainless Steel Guiding Pin |
| Item No. | SF-GP3.2x34 |
| Material |
Plunger/Barrel:Brass Spring:SUS |
| Surface Plating | Nickel Plating |
| Custom Support | OEM/ODM |
| MOQ | 100pcs |
| Lead Time | 7-10days |
| Applications |
Guide pins are cylindrical components typically made from high-strength materials like hardened or stainless steel. They offer alignment and guidance support between two or more structures during assembly or operation. They are conventionally used with guide bushings or sleeves to complete a guide system.
These pins are vital to ensure that moving parts are precisely aligned to avoid misalignment, excessive wear, and long-term damage. Industries like automotive, aerospace, manufacturing, and even medical equipment are using guide pins in a wide variety.
| Package |
| Logistics |
Sample order ship by DHL, UPS, FedEx, TNT, EMS etc.
For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer’s forwarder or ours.
| Factory Show |
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Type:Guide Pin
Model: SF-GP3.2*31.5
Material: Brass
Plating: Ni Plated
Full travel: 9.5mm
Rated travel: 6.0mm
Spring force: 200±20%gf@ load 6.0mm
| Model Number | SF-GP3.2*32 |
|
Material |
Barrel/Plunger:Brass Sping:304 Stainless Steel |
| Surface Plating | Ni Plated |
| Full Stroke | 10.5mm |
| Rated Stroke | 7.0mm |
| Spring Force | 170±10%gf 1oad 7.0mm 250±10%gf 1oad 10.5mm |
| MOQ | 100pcs |
| Lead Time | 7-10days |
