| Product Description： |
High-current probes are characterised by a specific probe design with low resistance. ( big current probe on sales china ) The main focus here is to avoid a too strong temperature increase of the probes or the individual probe components and to optimise the contact to the test item.

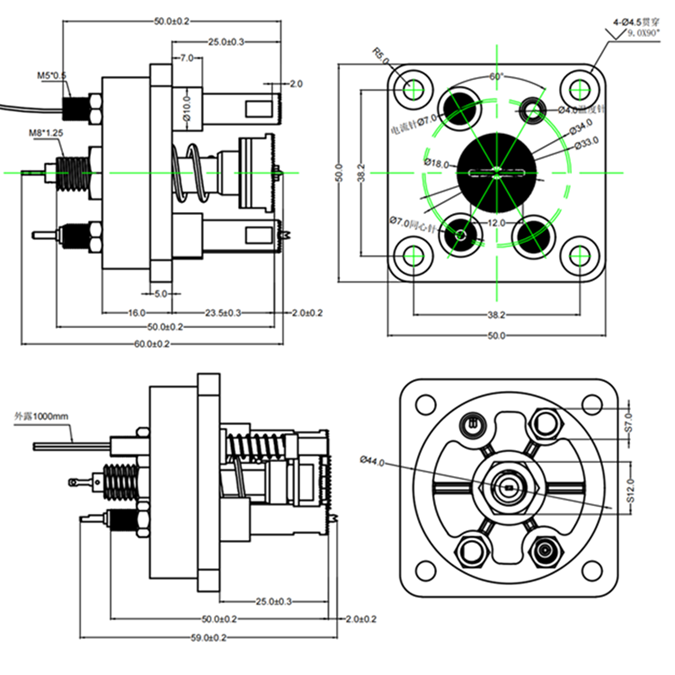

| Product drawing: |
| Product Parameters: |
|
Product Name |
60A probe pin set |
|
Item No. |
SF-15-7-6 |
|
60A Probe pin sets |
18.0 voltage pin, 7.0 coaxial pin, 7.0 current pin, 4.0 temperature needle |
|
15.0 Voltage pin |
Material: Copper, Gold plated or Ni plated Full travel ≥ 8.0mm Spring force: 5kg±20% when working travel 5.0mm Current rating: 60A |
|
7.0 Coaxial pin, 7.0 Current pin |
Material: Copper, Gold plated or Ni plated Full travel ≥ 8.0mm Spring force: 2kg±20% when working travel 5.0mm Current rating: 20A |
|
6.0 Temperature needle |
Material: Copper, Ni plated Full travel ≥ 8.0mm Spring force: 200g±20% (when working travel to 5.0mm) |
| Applications: |
The applications for high-current probes are diverse and range from fixture construction and wire harness testing to special applications, such as charging and discharging processes in battery production.
| Package: |
| Logistics: |
Sample order ship by DHL, UPS, FedEx, TNT, EMS etc
For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer’s forwarder or ours
