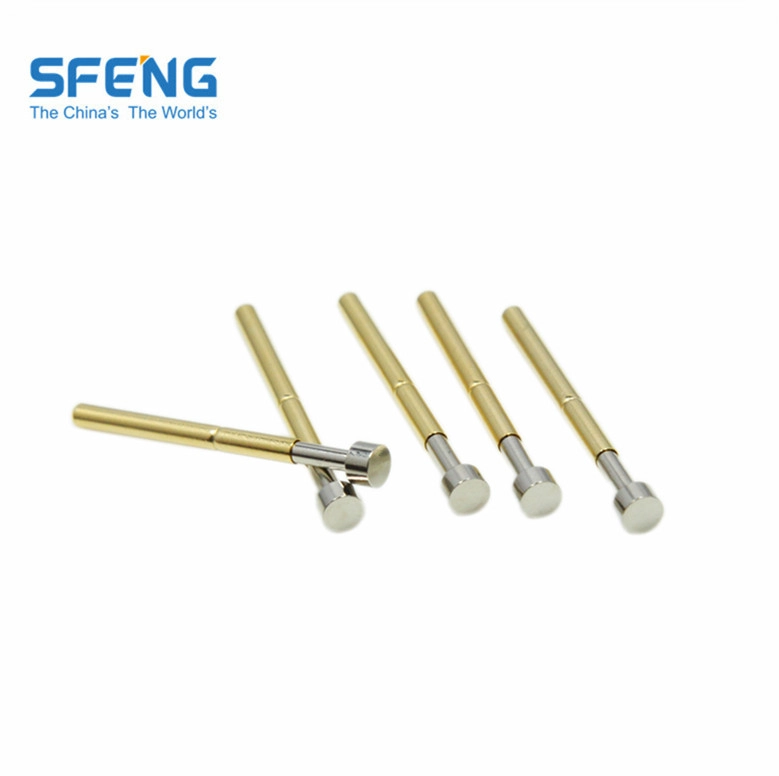

New Trend PCB&ICT Pin For Probe Supplier

New Trend PCB&ICT Pin For Probe Supplier

  • Brand:SFENG
  • Model:SF-P75
  • Size:L.16.4mm
  • Material: Brass
  • Finish: Ni-plated or Gold-plated
  • Packing: Plastic box and loaded into carton
  • Product Details
About Us

SFENG was founded in 1984 and headquartered in Ningbo. It is a professional enterprise integrating research, development, production, and sales. ( spring loaded testing probes factory china) Products include in-circuit spring test probe, semiconductor spring test probe, battery charging pogo pin and the related accessories. Products are widely used in technology, automobiles, energy, telecommunications, medical, and other peripheral electronic products.

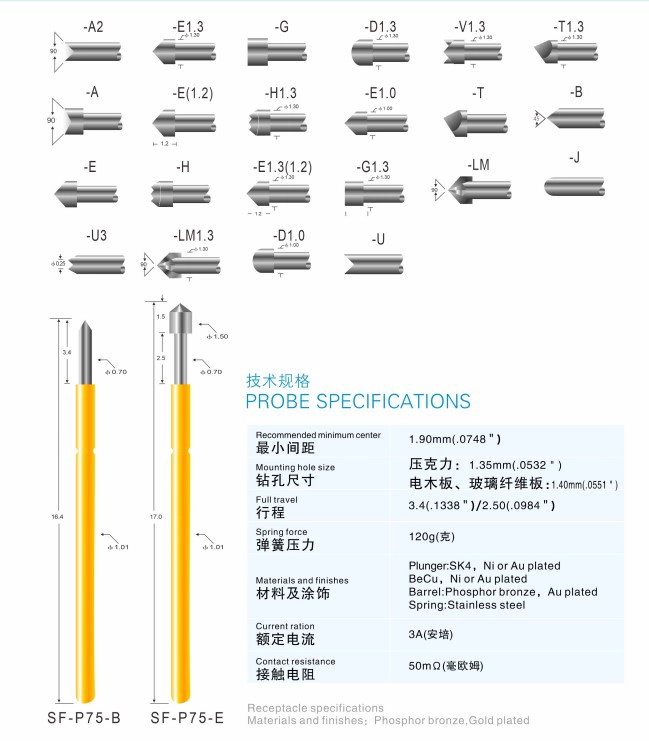

Product Specification:








Product Parameters:



Model Number

SF-P75

Recommended minimum center

1.90mm(.0748")

Mounting hole size

Acrylic:1.35mm(.0532")

Bakelite、fiberglass board:1.40mm(.0551")

Full travel

3.40(.1338")/2.50(.0984")

Spring force

100g

Materials and finishes

plunger:Be Cu,Rh plated;SK4,Rh plated

Barrel:Phosphor bronze,Gold plated

Spring:Stainless steel

Current ration

3A

Contact resistance

50mΩ

MOQ

100pcs

Lead time

7 working days after receiving the payment





Our Service

1. We can reply your inquiry within 24 working hours.
2. Customized design is available and OEM are welcomed.
3. We can deliver the probe pins to our clients all over the world with speed and precision.
4. We can provide the lowest price with high quality product to our client




Main Products

1.Spring loaded pin (single) for PCB, ICT, FCT testing etc;
2.Pogo pin (connector) to establish connection between two printed circuit boards for charging, locating, Battery, Semiconductor &  Interconnect applications;
3.Double ended probe for BGA and Semiconductor testing;
4.Universal pin without spring, coating pin, LM pin with QZ and VZ series;
5.High current probe, Switch probe, Capacitance needle;
6.Terminal & receptacle /socket;
7.Other related electronic components, 30# OK wire, Jig locks, POM, Iron hinge etc

If you require custom items,please feel free to send us inquiry for more solutions!



Package:






Production Flow




Quality Control
