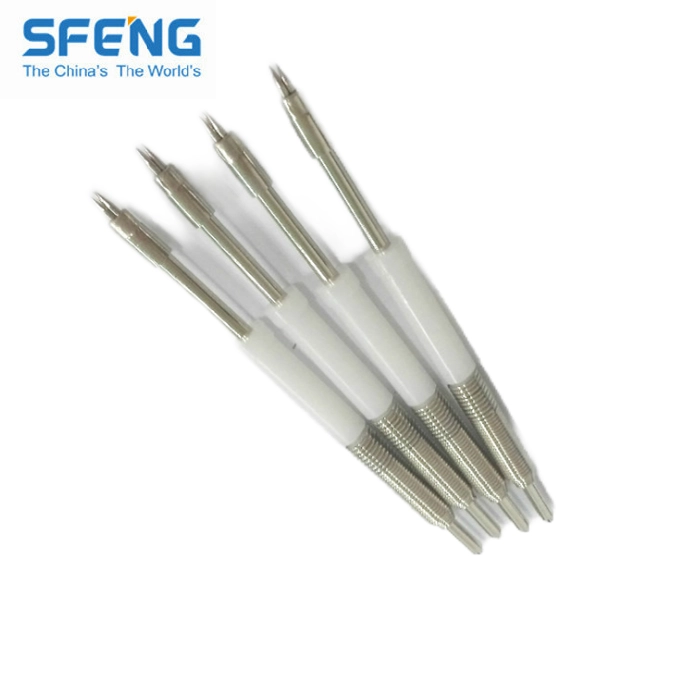

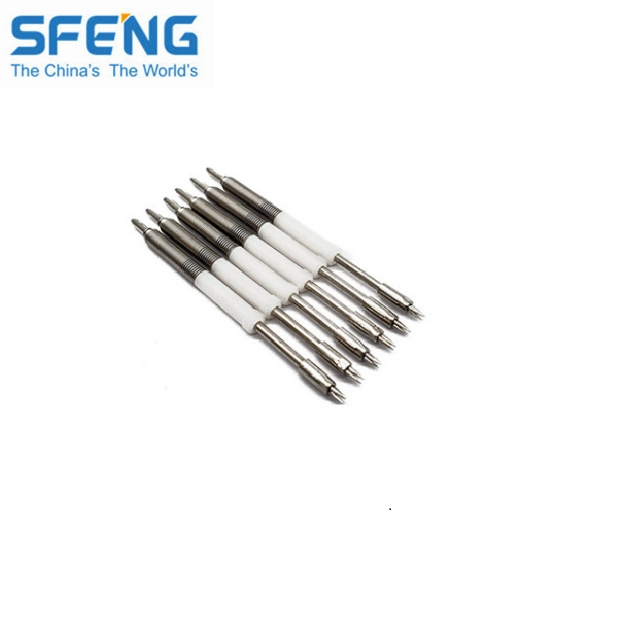

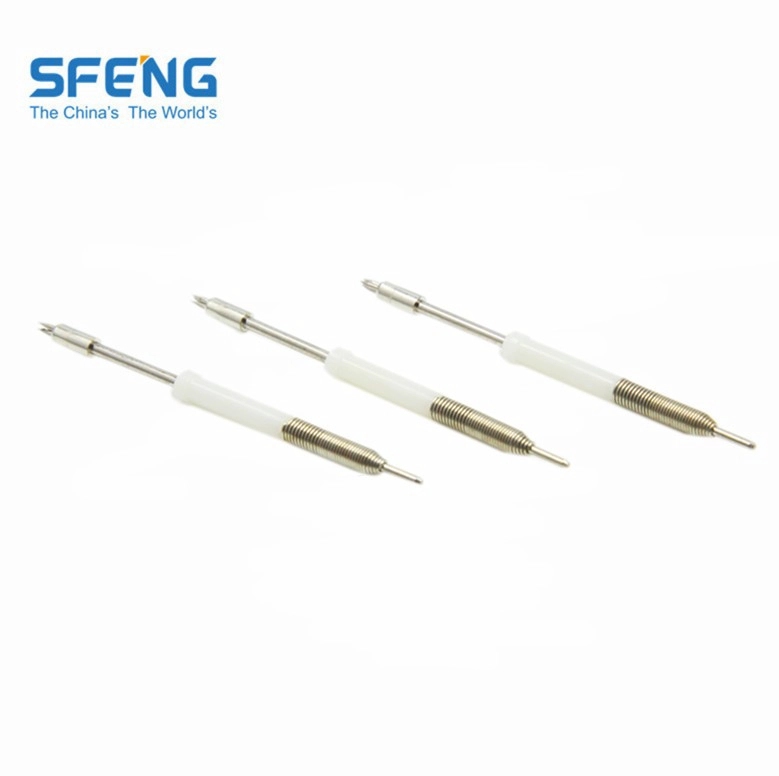

SFENG Electronic Test Probe Board Test Fixture Probes

SFENG Electronic Test Probe Board Test Fixture Probes

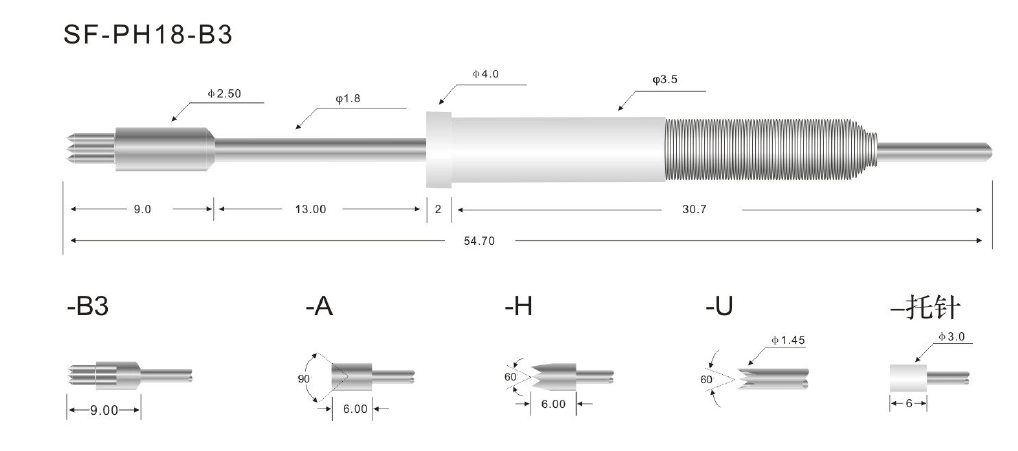

  • Item:SF-PH-18
  • Material: Barrel: POM
  •           Plunger:Becu, Au on Ni plated
  •           Spring: SUS304
  • Size:L.54mm
  • Full Stroke: 13.0mm
  • Spring force:300g
  • Packing: Plastic box and loaded into carton
  • Product Details

Product Specification

Brand

SFENG

Item number

SF-PH-18

Plunger

Becu

Barrel

POM

Spring

SUS304

Spring Force

300g

Full Travel

13.0

MOQ

100



Product Picture


Our Service

1. We can reply your inquiry within 24 working hours.

2. Customized design is available and OEM are welcomed.

3. We can deliver the probe pins to our clients all over the world with speed and precision.

4. We can provide the lowest price with high quality product to our client      .



Main Products

Spring loaded pin (single) for PCB, ICT, FCT testing etc;

Pogo pin (connector) to establish connection between two printed circuit boards for charging, locating, Battery, Semiconductor &  Interconnect applications;

Double ended probe for BGA and Semiconductor testing;

Universal pin without spring, coating pin, LM pin with QZ and VZ series;

High current probe, Switch probe, Capacitance needle;

Terminal & receptacle /socket;

Other related electronic components, 30# OK wire, Jig locks, POM, Iron hinge etc
