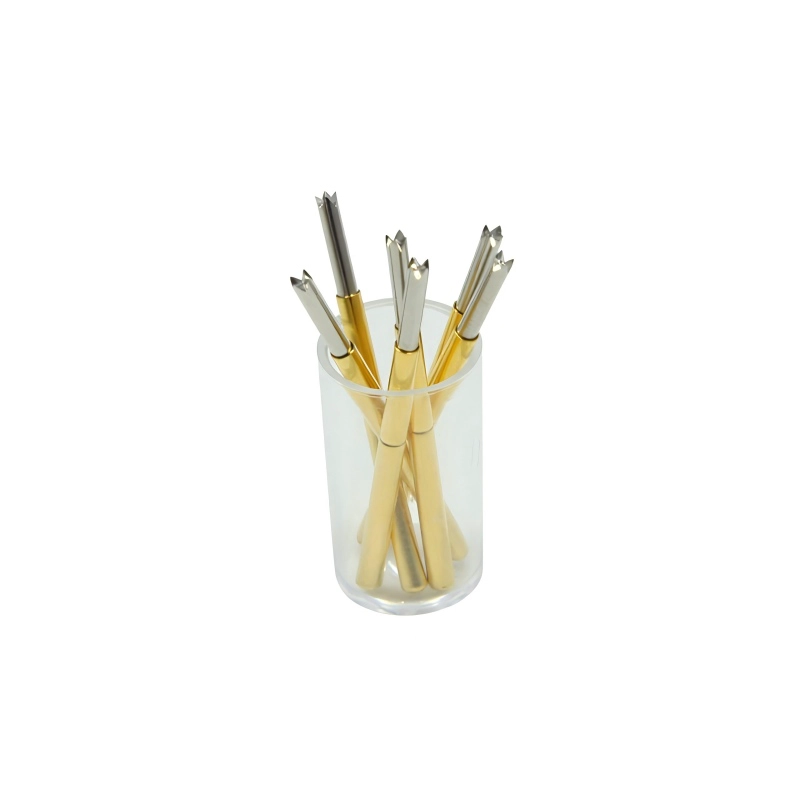

SFENG Enough Stock ICT Test Probe Pin Hot Sale Spring Probe Pin
Standard Pogo Pins Product Description
Product Flow
Testing Equipment
Custom Visits
Packing & Delivery
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Recommended minimum center:1.27mm
Mounting hole size:V:0.90mm/W:0.95mm
Full travel:2.5
Spring force:100g
Materials and finishes:Plunger:SK4, Ni or Au plated; Barrel:Brass; Spring:Stainless steel
Current ration:1.5A
Contact resistance:50mΩ
Recommended minimum center:1.27mm
Mounting hole size:V:0.90mm/W:0.95mm
Full travel:4.20
Spring force:120g
Materials and finishes:Plunger:Be Cu,Ni plated; SK4 Au plated Barrel:Brass Spring:Stainless steel
Current ration:3A
Contact resistance:50mΩ
Model number:SF-P060-Test Probe Pin
Recommended minimum center:0.65mm
Mounting hole size: 0.45mm
Full travel:1.5
Spring force:40g
Materials and finishes:Plunger:Becu, Ni plated; Barrel:Brass; Spring:Music wire
Current ration:0.5A
Contact resistance:50mΩ
Brand:SFENG
Item number:SF-P050-B
Origin place:Zhejiang China
Size: dia0.35*length12.5mm
Plunger:SK4
Barrel:Phosphor Bronze
Spring:Music wire
Finish:Ni or Gold plated
Packing:Plastic bag and loaded into carton box
MOQ:100PCS
Customization:OEM,ODM
