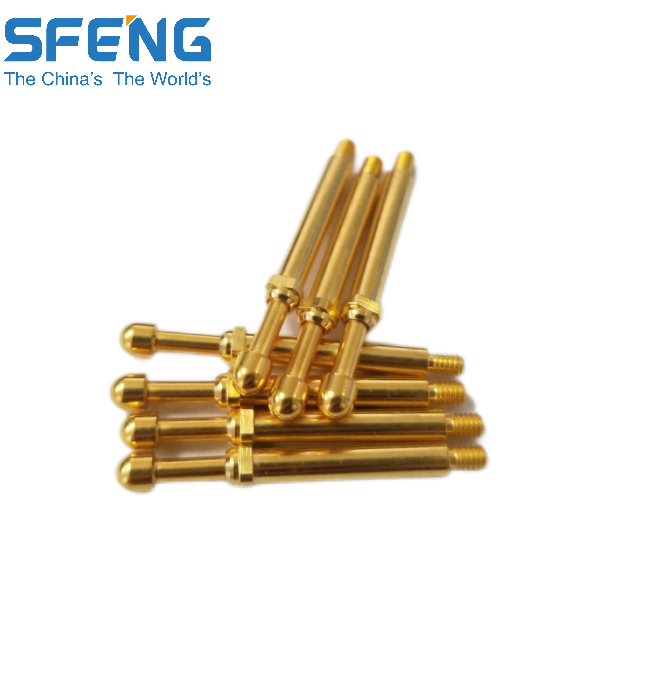

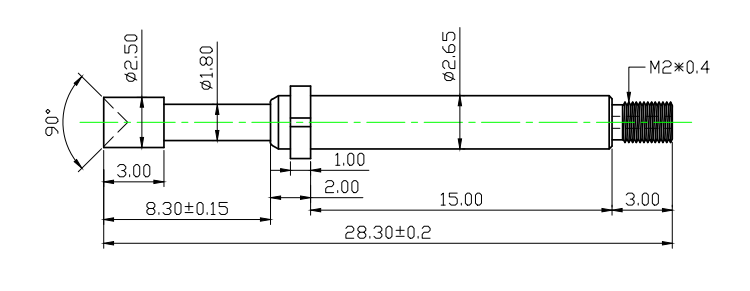

SFENG Screw-in test probe for cable harness testing by length 28.3mm

SFENG Screw-in test probe for cable harness testing by length 28.3mm

  • Place of Origin:Cixi,Zhejiang
  • Model no.: SF-113-303-250-A-1502M
  • Material:
  • Barrel: Brass, Au on Ni plated
  • Plunger: Ph, Au on Ni plated
  • Spring: SWP, Au on Ni plated
  • Current Rating:3A
  • Contact Resistance: ≤50mΩ
  • Full Stroke:5.3mm
  • Rated Stroke:4.0mm
  • Spring force:150±25%gf@ load 4.0mm
  • Package:plastic,carton
  • Product Details



Product description

Company introduction

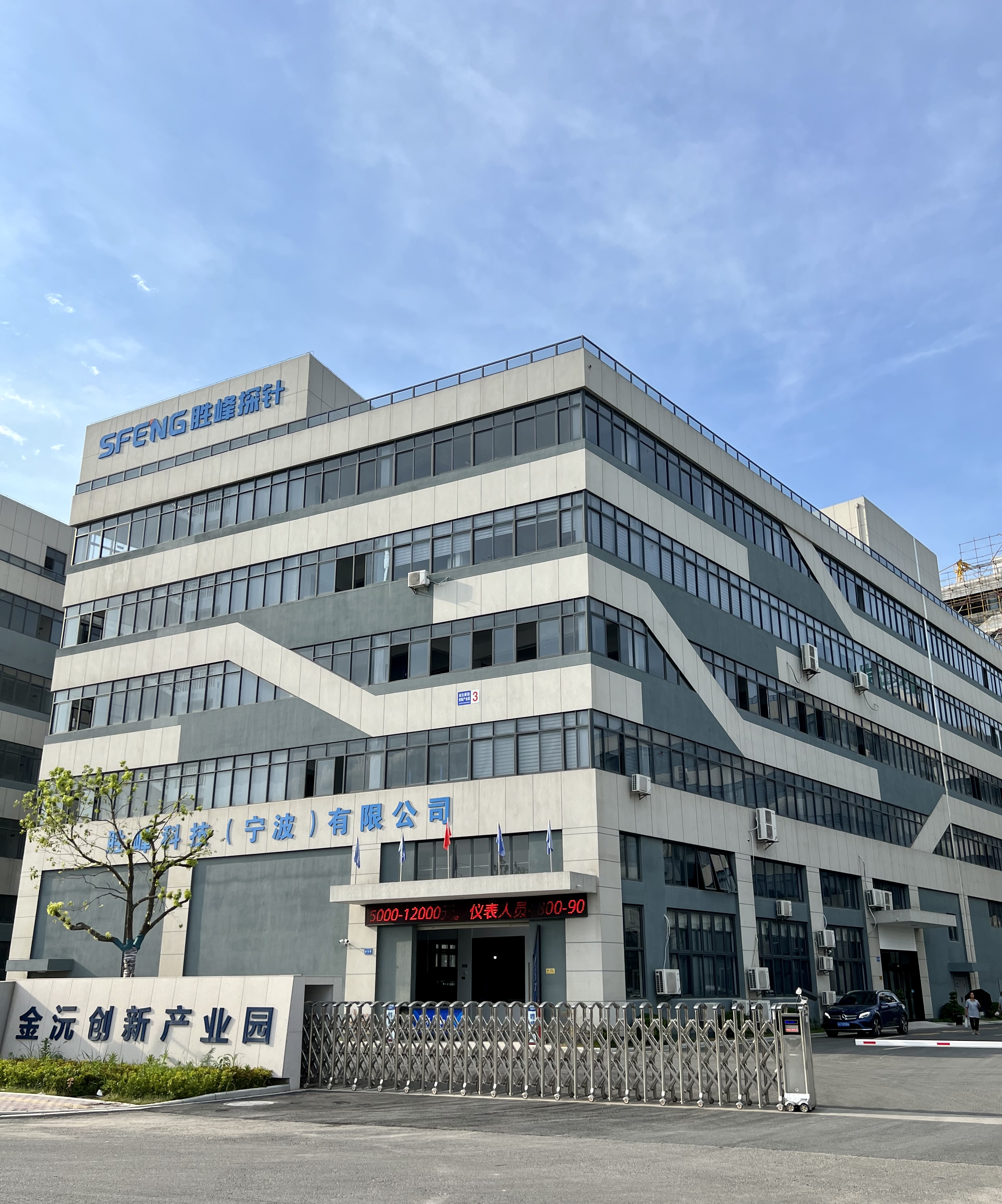

Suzhou Shengyifurui Electronic Technology Co.,Ltd is the leading probe pin supplier in China. We set up a large production plant in Cixi City, Zhejiang Provincein 1984. The monthly production amount reaches 300,000 units and all orders can be finished within 15 working days. The factory has set up I S O 9 0 0 0 1 quality management system.

Company established domestic  and international sales department in Suzhouin 2010. It is dedicated to provide professional products and convenient services to the clients all over the world.the products lines  include spring pin, pogo pin, switch pin, current pins and accessories. They are widely used in PCB, ICT, SMT, IC industries. Thequality has reached international advanced level and won the high praise in theprobe indus

Our main products

1.     PCB,ICT,FCT testing pins

2.     pogo pin connectors

3.     Lithium battery's charge and discharge

4.     customized pins

Measuring Equipment
