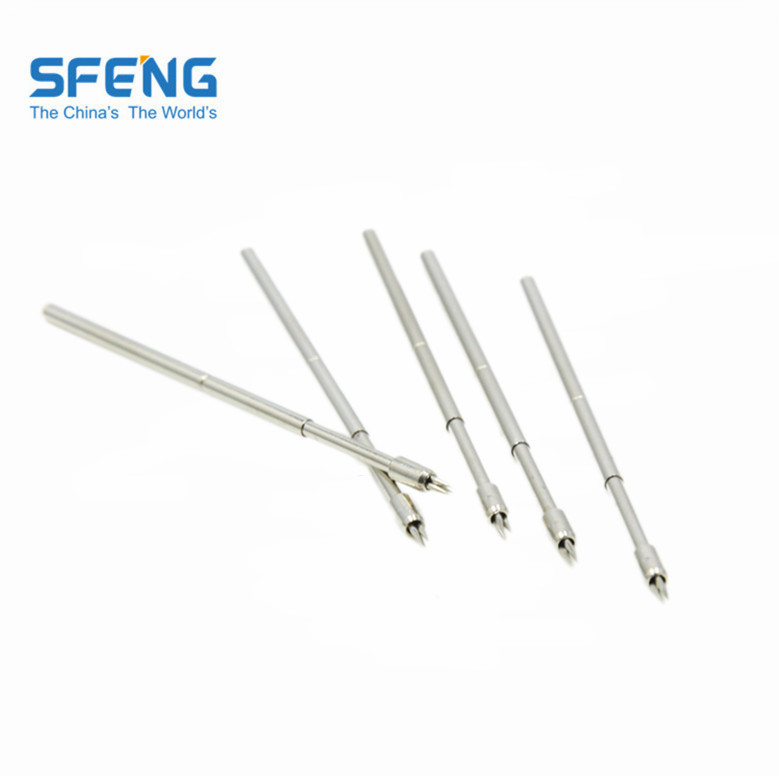

Brass Spring Contact Probes Switching Probes for component detection tests

Brass Spring Contact Probes Switching Probes for component detection tests

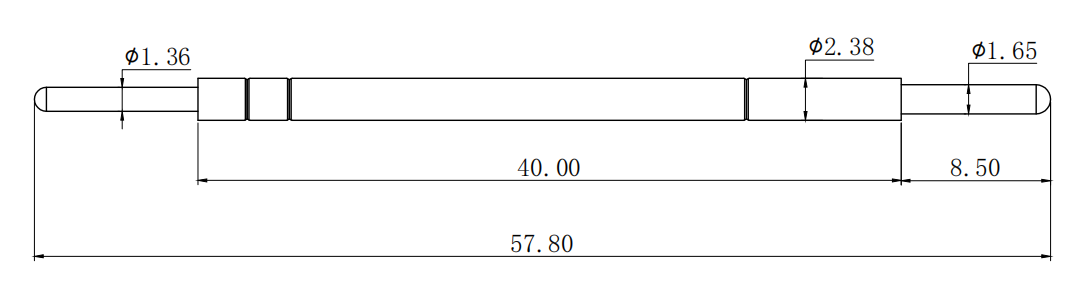

  • Item Code:SF-switch-2.38*57.80-J
  • Material: Barrel: Brass, Ni plated
  •           Plunger: 1214 Fe, Ni plated
  •           Spring: SUS
  • Full stroke:6.9mm
  • Rated stroke:4.6mm
  • Spring force: 250g±20%
  • Switching path:2.8mm
  • Product Details

Production Specification

Switching probes are suitable for many various applications: not only can they be used for component detection tests, switches for closed/open checks, but also as a signal trigger for process control.
Furthermore, in combination with other test probes (e.g., push-back probes), position determination of contact terminals in plug housings is possible.

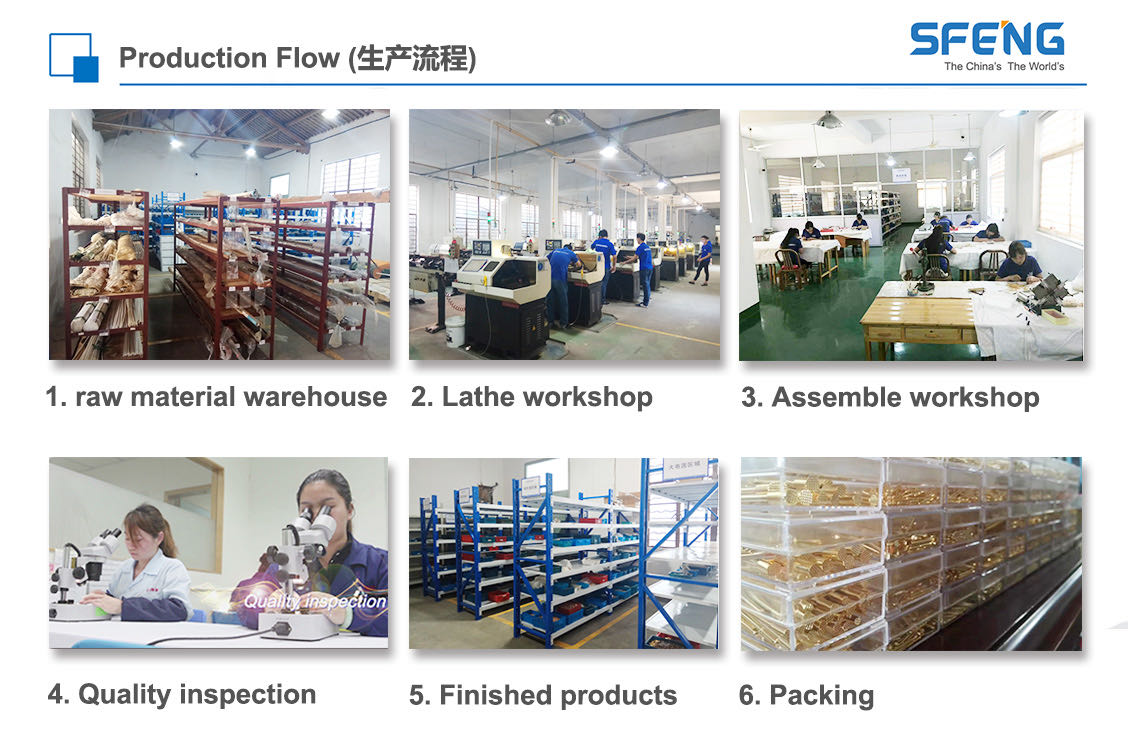

Production Flow

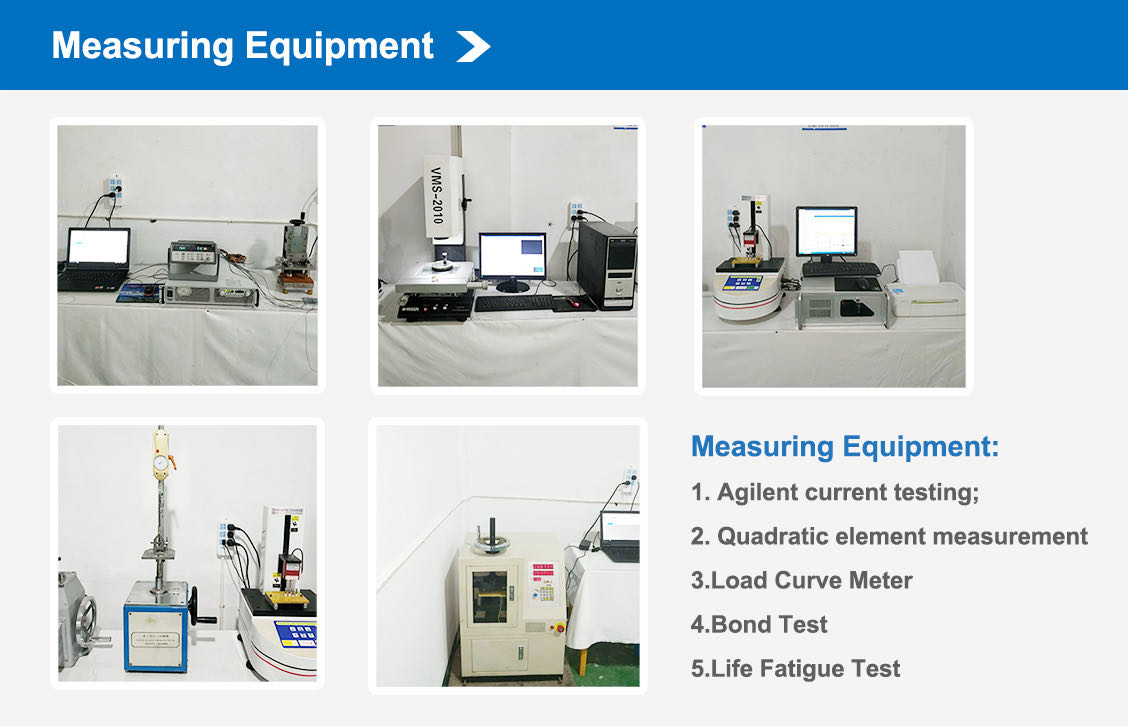

Test Equipment

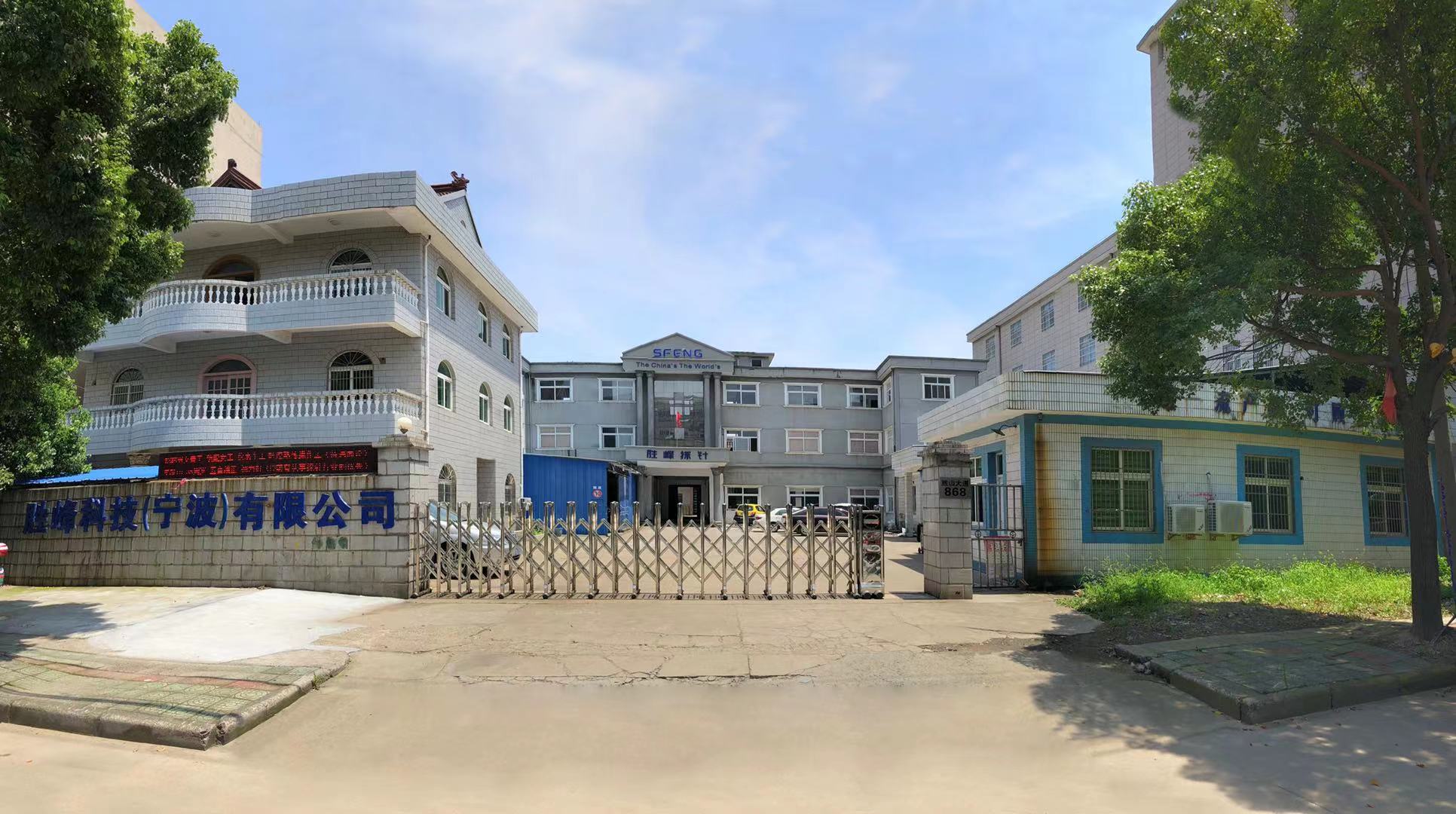

Company Profile


Suzhou Shengyifurui Electronic Technology Co.,Ltd is the leading test probe manufacturer in China. In 1984 we set up the first
factory in Cixi City, Zhejiang Province. With high quality and sweet service, our products are widely used in more than 50
countries in the world. We are dedicate to being the most reliable test probe supplier in China Market.We are committed to
providethe most professional products and services to the customers in the world. Products include in-circuit spring test
probe,semiconductor spring test probe, battery charging pogo pin and the related accessories.
