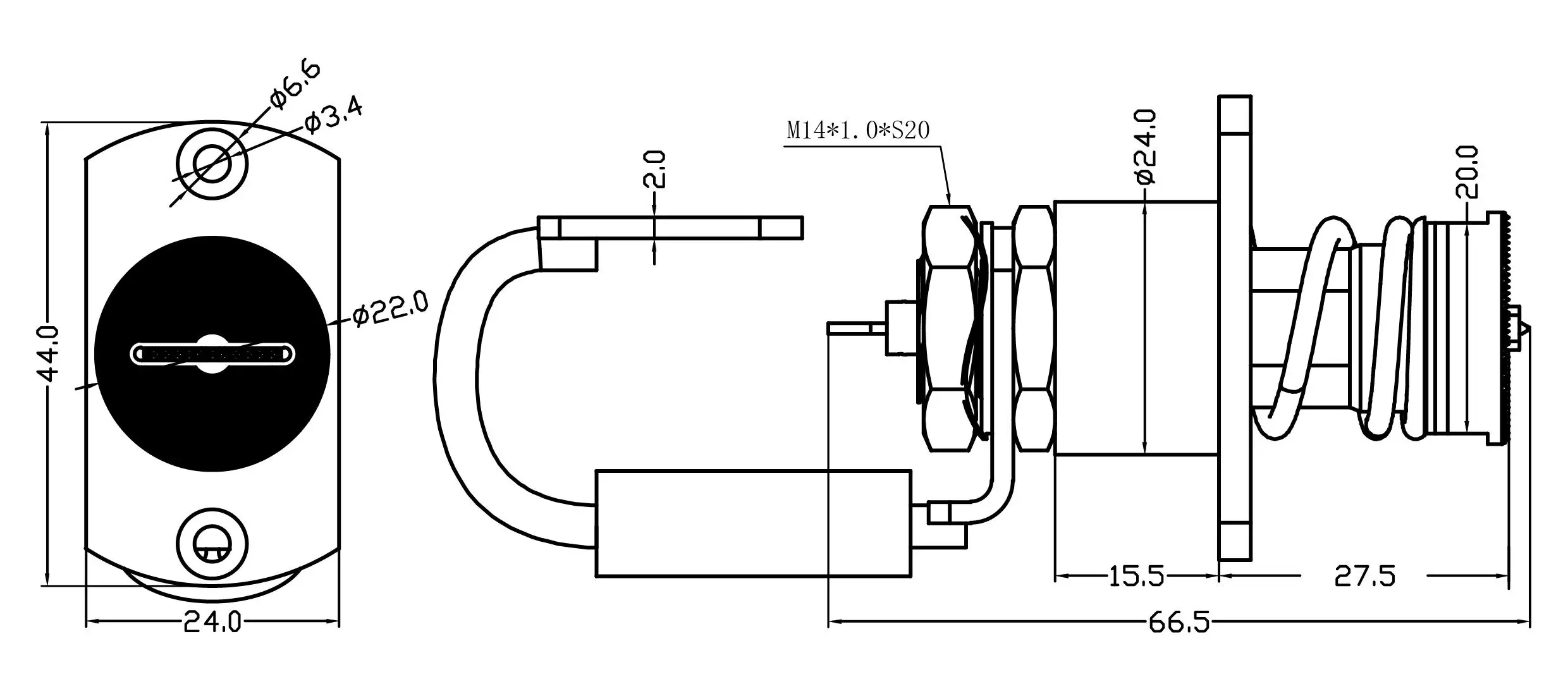

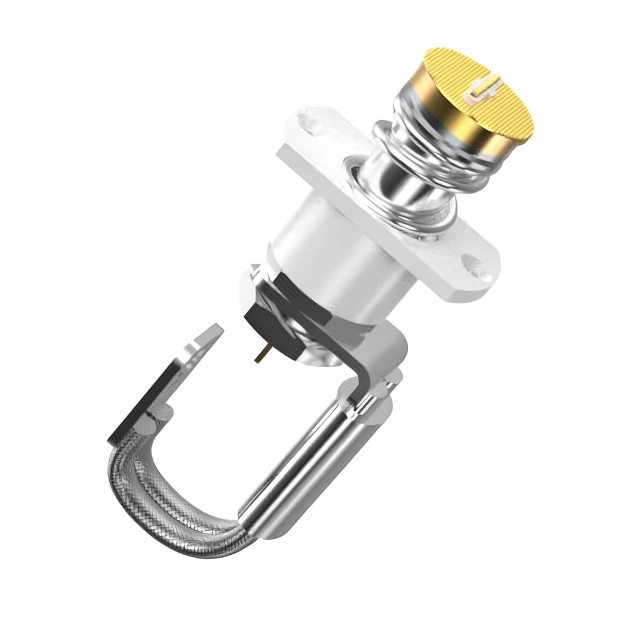

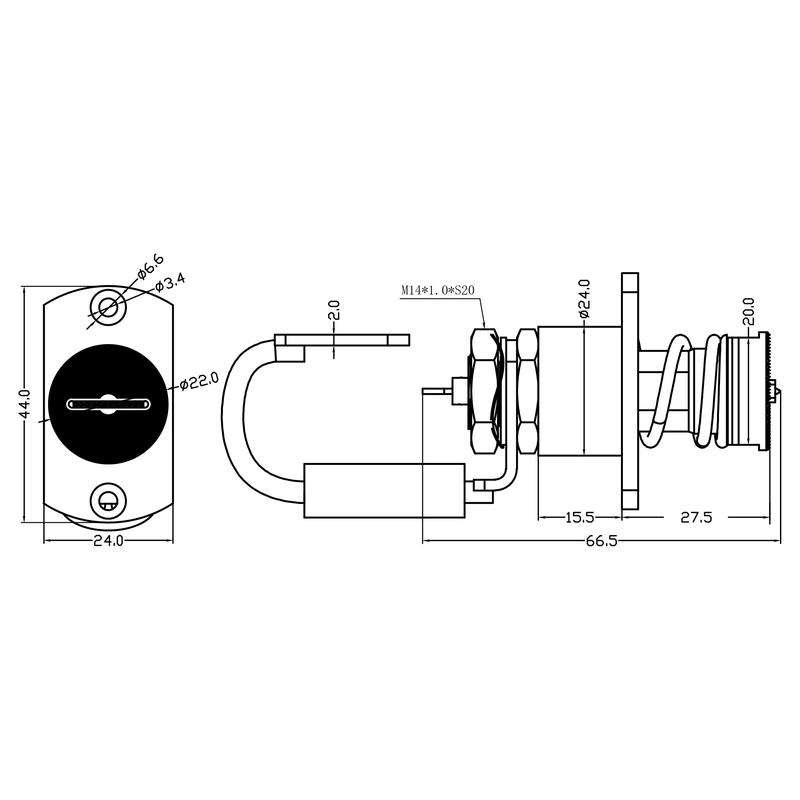

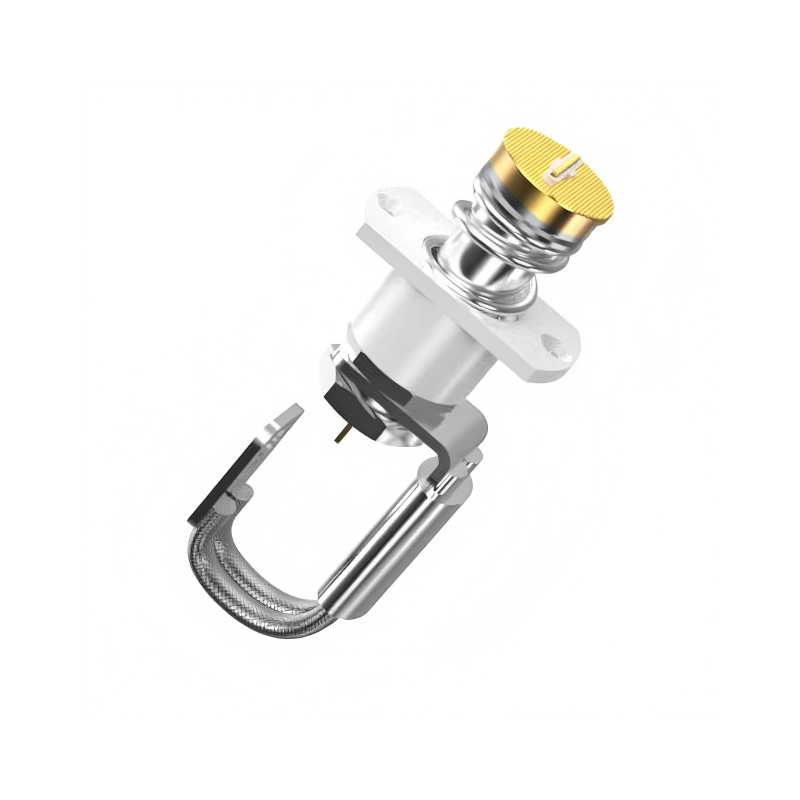

Customized High Quality 200A High Current Test Probe
Test Probe Specifications
| Item No. | SF66.5-20.0 |
| Material |
Copper Alloy |
| Surface Plating |
Partial gold-plated over nickel |
| Mechanical Durability | ≥30000cycles |
| Operating Temperature | -40℃/+105℃ |
| Current Rating | 200A |
| Contact Resistance(lnitial) | ≤0.2mΩ |
| Maximum Travel | ≥10.0mm |
| Recommended Working Travel |
9000g±20%(5.0mm) |
Main Products
1.Terminal & receptacle /socket;
2.High current probe, Switch probe, Capacitance needle;
3.Spring loaded pin (single) for PCB, ICT, FCT testing etc;
4.Double ended probe for BGA and Semiconductor testing;
5.Universal pin without spring, coating pin, LM pin with QZ and VZ series;
6.Other related electronic components, 30# OK wire, Jig locks, POM, Iron hinge etc
7.Pogo pin (connector) to establish connection between two printed circuit boards for charging, locating, Battery,
Semiconductor&Interconnect applications;
If you require custom items, please feel free to send us inquiry for more solutions.
Product Flow
Measuring Equipment
Certification
Company Introduction
Exhibition
Customer Visits
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:20A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥9.0mm
Recommended Working Travel:2000g±15%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:600A
Contact Resistance(Initial):≤0.5mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:8000g±20%(5.0mm)

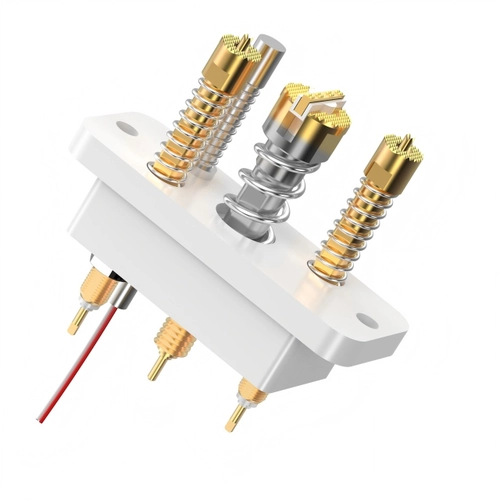

1.Material: Copper Alloy
2.Surface Plating: Partial gold-plated over nickel
3.Mechanical Durability:≥30000cycles
4.Temperature Rise:≤20℃
5.Current Rating:25A
6.Contact Resistance(Initial):≤1mΩ
7.Maximum Travel:≥8.0mm
8.Recommended Working Travel:2500g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Temperature Rise:≤15℃
Current Rating:30A
Contact Resistance(Initial):≤0.6mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:2500g±20%(5.0mm)
