| Product Description |
High-current probes are characterised by a specific probe design with low resistance. ( big current probe on sales china ) The main focus here is to avoid a too strong temperature increase of the probes or the individual probe components and to optimise the contact to the test item.

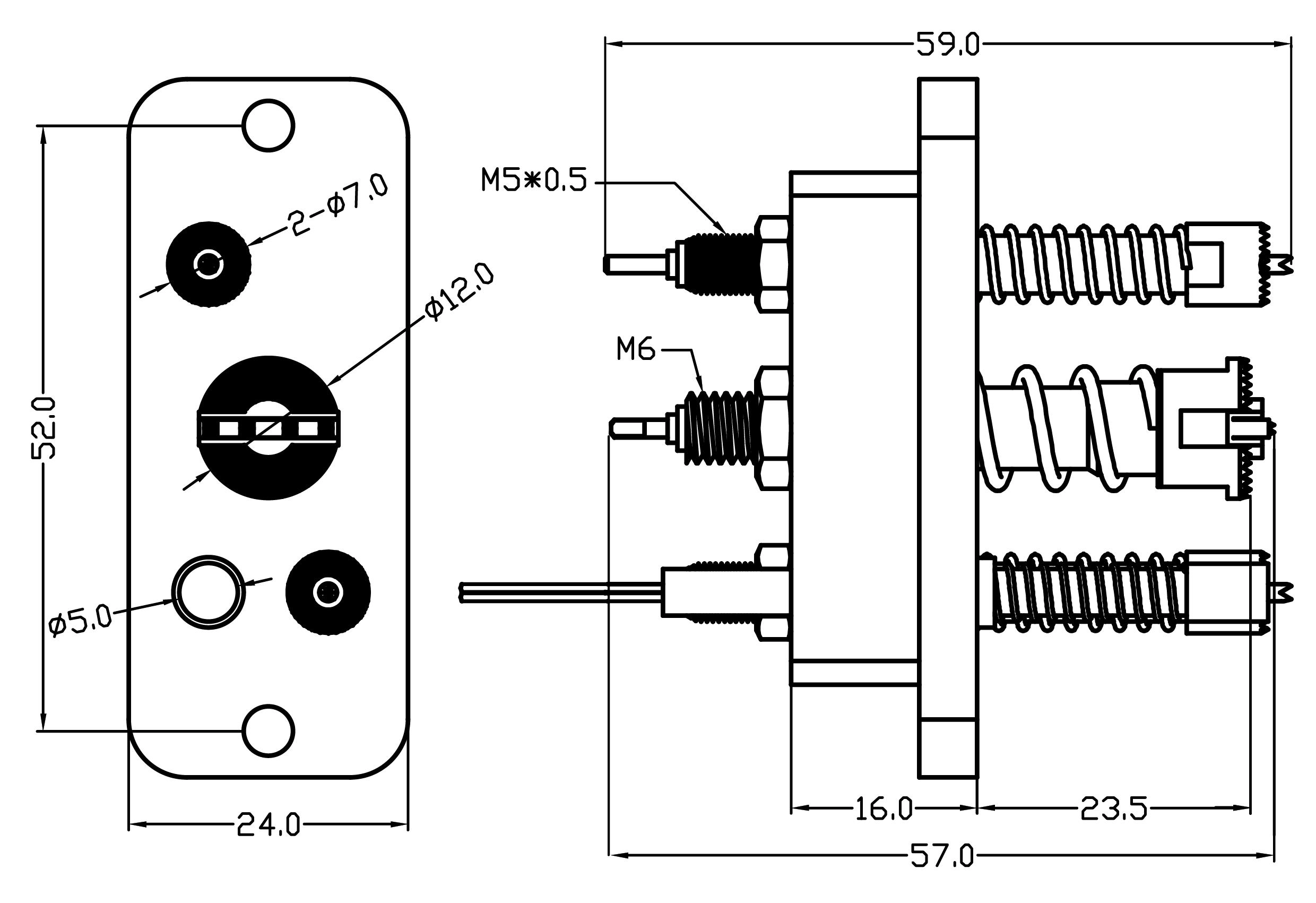

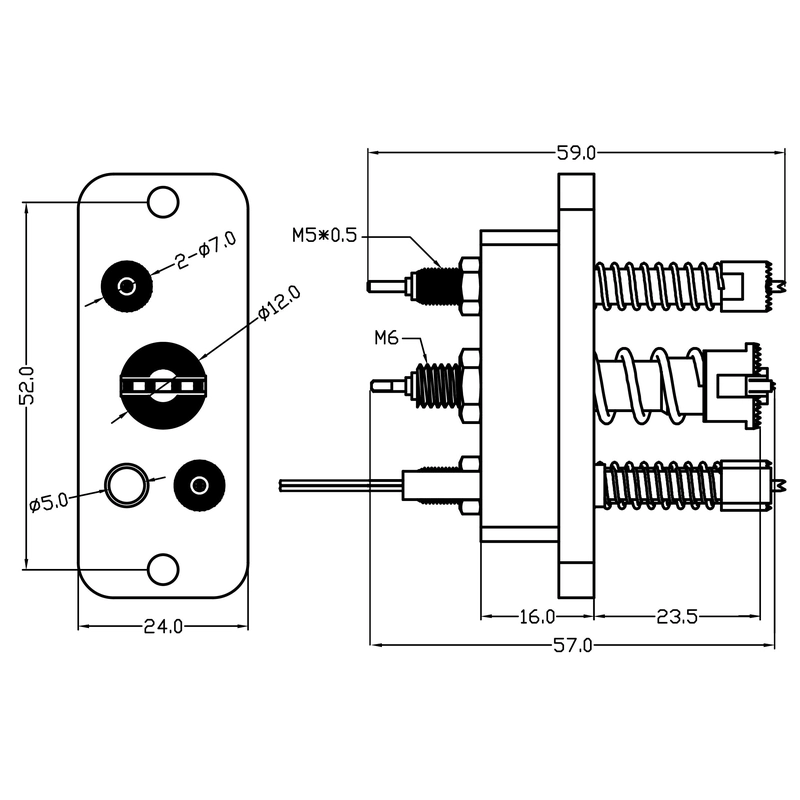

| Product drawing |
| Product Parameters |

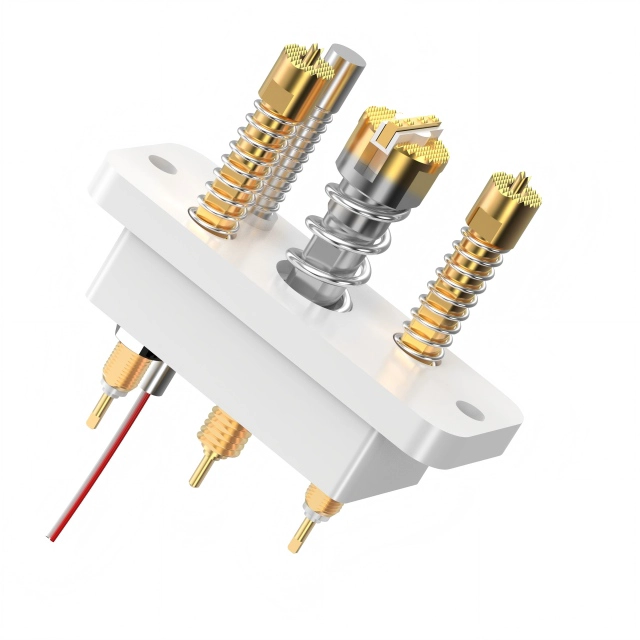

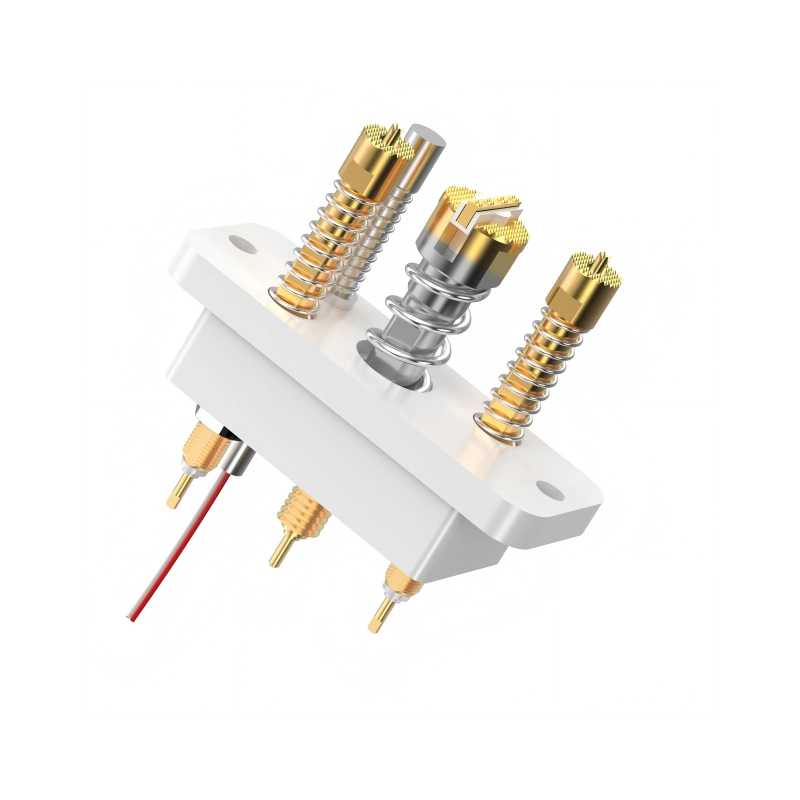

| Poduct Name | Zhejiang Factory Gold Plated 25A Current Probe Pin Set for 4680 Cylinder Type |
| Item No. | SF12-7-5 |
| Material | Copper Alloy |
| Surface Plating | Partial gold-plated over nickel |
| Mechanicak Durability | ≥30000cycles |
| Temperature Rise | ≤20℃ |
| Current Rating | 25A |
| Contact Resistance(lnitial) | ≤1mΩ |
| Maximum Travel | ≥8.0mm |
| Recommended Working Travel |
2500g±20%(5.0mm) |
| Applications |
The applications for high-current probes are diverse and range from fixture construction and wire harness testing to special applications, such as charging and discharging processes in battery production.
| Package |
| Logistics |
Sample order ship by DHL, UPS, FedEx, TNT, EMS etc.
For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer's forwarder or ours.
| Factory Show |
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:5A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥4.5mm
Recommended Working Travel:580g±20%(2.5mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:20A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥9.0mm
Recommended Working Travel:2000g±20%(4.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:10A
Contact Resistance(Initial):≤10mΩ
Maximum Travel:≥7.5mm
Recommended Working Travel:450g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:6A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:1000g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:20A
Contact Resistance(Initial):≤2mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:2000g±15%(5.0mm)
