Electrical brass spring loaded pogo pin SF-PPA2.5*7.1

Electrical brass spring loaded pogo pin SF-PPA2.5*7.1

  • Item code:SF-PPA2.5*7.1
  • Material:
  • Plunger:Brass, Au on Ni plated
  • Barrel:Becu, Ni plated
  • Spring:SWP
  • Full Stroke: 2.1mm
  • Rated Stroke: 1.4mm
  • Spring Force: 95g@ load 1.4mm
  •               120g@ load 2.1mm
  • MOQ:100PCS
  • Product Details

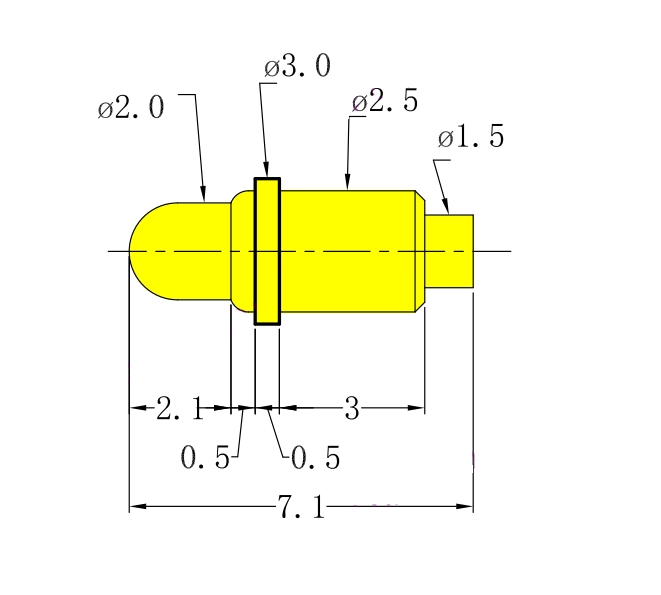

Product Drawing



 Item code  SF-PPA2.5*7.1
 Material Plunger:Brass, Au on Ni plated
Barrel: Becu, Au on Ni plated
Spring: SWP
 Full Stroke 2.1mm
 Rated Stroke 1.4mm
 Spring force 95g @ load 1.4mm
120g @ load 2.1mm
 MOQ 100pcs



Our main products

---Spring loaded pin(single) for PCB,ICT,FCT testing,etc;
---Pogo pin(connector) to establish a(usually temporary)connection between
two printed circuit boards for charging, locating, Battery, Semiconductor &
interconnect Applications;
---Double ended probe for BGA&semiconduction testing;
---Universal pin without spring,coating pin,LM pin with QZ&VZ series;
---High current probe,Switch probe,Capacitance needle...
---Terminal&receptacle/socket;
---Other related electronic components,30#OK wire,Jig locks,POM,etc
battery contact pin photos

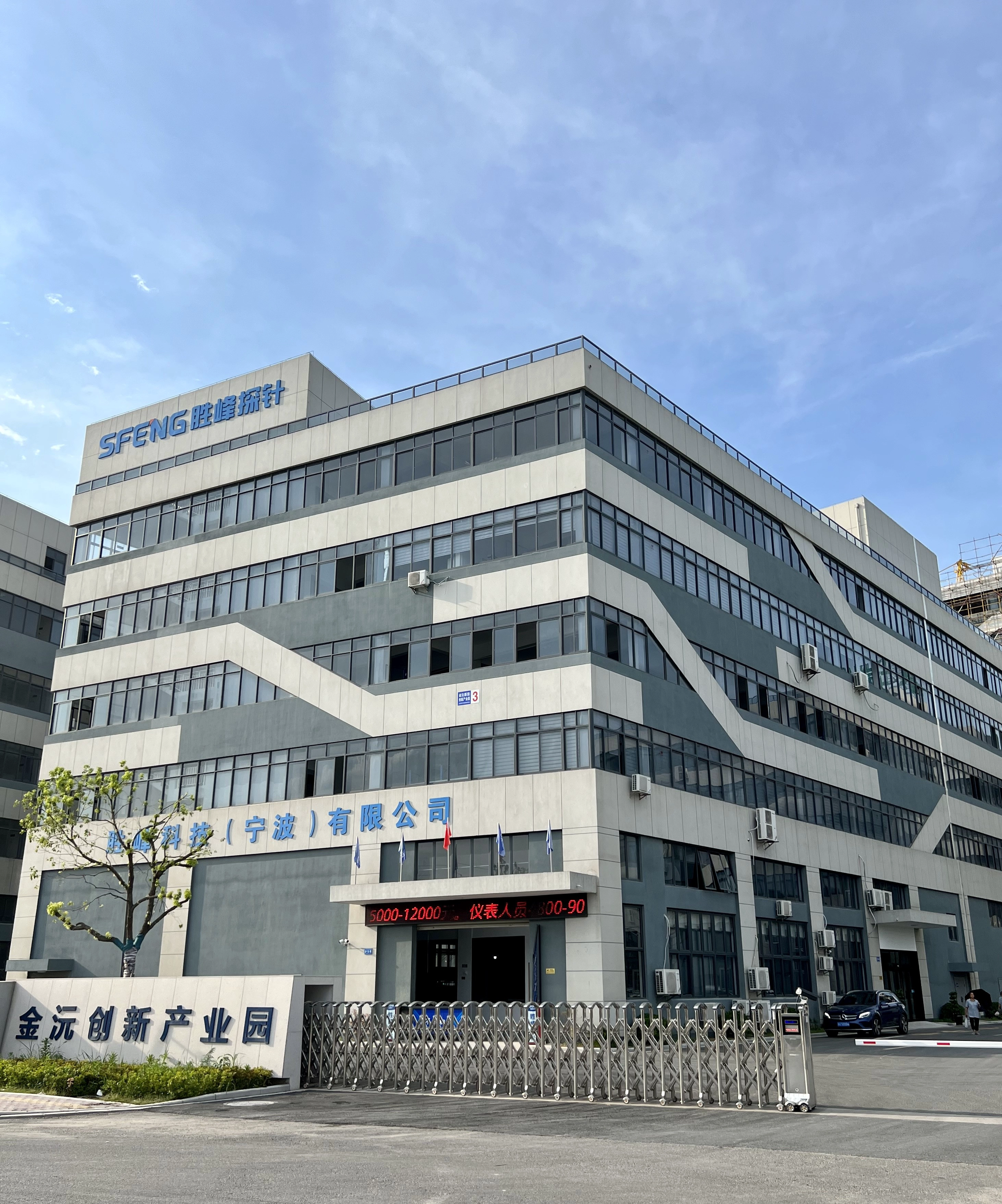

Factory Image




FAQ


1)  Can we make a different size or different materail, say like customized item?
Surely, one of our main feature is OEM

2) Are those spring probe or pogo pins produced by your company?
Yes, our production department are with over 30 sets of CNC equipments.

3) Do you have a registed brand?
Yes, SFENG PROBE is our own brand.

4) Do you have QC process?
Yes, we have a testing department.

5) How is it going with Suzhou shengteng & shengfeng probe?
Suzhou shengteng Electronic Company is our registed company name;
shengfeng probe is registed brand name.

6) can I have a free sample before placing order?
If the standard items, with in stock, No problem, we can send 3 ~ 5 pcs for your testing approval;
if a special request of item, supposed a new mould, we will charge a certain deposit and can be refundable.
