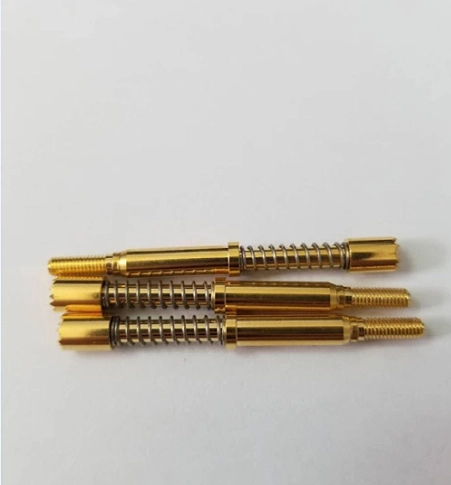

Famous Brand Be Cu Contact Probes High Current SF420*4850

Famous Brand Be Cu Contact Probes High Current SF420*4850

  • Brand:SFENG
  • Model:SF-420*4850
  • Size:L.48.5mm
  • Material: Brass
  • Finish: Ni-plated
  • Packing: Plastic box and loaded into carton
  • Product Details

About Us

SFENG was founded in 1984 and headquartered in Ningbo. It is a professional enterprise integrating research, development, production, and sales.(test pin charging wholesales china)Products include in-circuit spring test probe, semiconductor spring test probe, battery charging pogo pin and the related accessories. Products are widely used in technology, automobiles, energy, telecommunications, medical, and other peripheral electronic products.

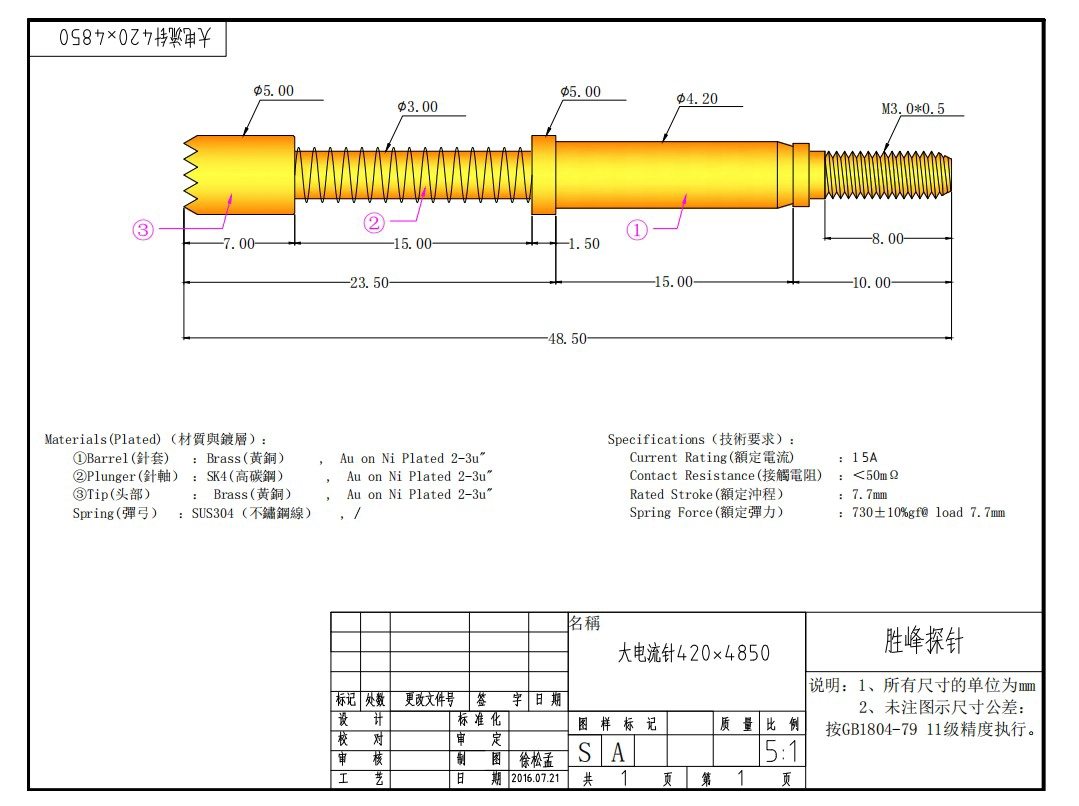

Product Parameters

Model Number

SF-420*4850

Rated Stroke

7.7mm

Spring Force

730±10%gf@ load 7.7mm

Materials and finishes

plunger:SK4,Au on Ni plated 2-3u'

Barrel:Brass,Au on Ni plated 2-3u'

Tip:Brass,Au on Ni plated 2-3u'

Spring:SUS304

Current Rating 15A
Contact Resistance <50mΩ

MOQ

100pcs

Lead time

7 working days after receiving the payment



Product Details




Our Service

1. We can reply your inquiry within 24 working hours.

2. Customized design is available and OEM are welcomed.

3. We can deliver the probe pins to our clients all over the world with speed and precision.

4. We can provide the lowest price with high quality product to our client



Mains products

1.Spring loaded pin (single) for PCB, ICT, FCT testing etc;

2.Pogo pin (connector) to establish connection between two printed circuit boards for charging, locating, Battery, Semiconductor &  Interconnect applications;

3.Double ended probe for BGA and Semiconductor testing;

4.Universal pin without spring, coating pin, LM pin with QZ and VZ series;

5.High current probe, Switch probe, Capacitance needle;

6.Terminal & receptacle /socket;

7.Other related electronic components, 30# OK wire, Jig locks, POM, Iron hinge etc

If you require custom items,please feel free to send us inquiry for more solutions!
