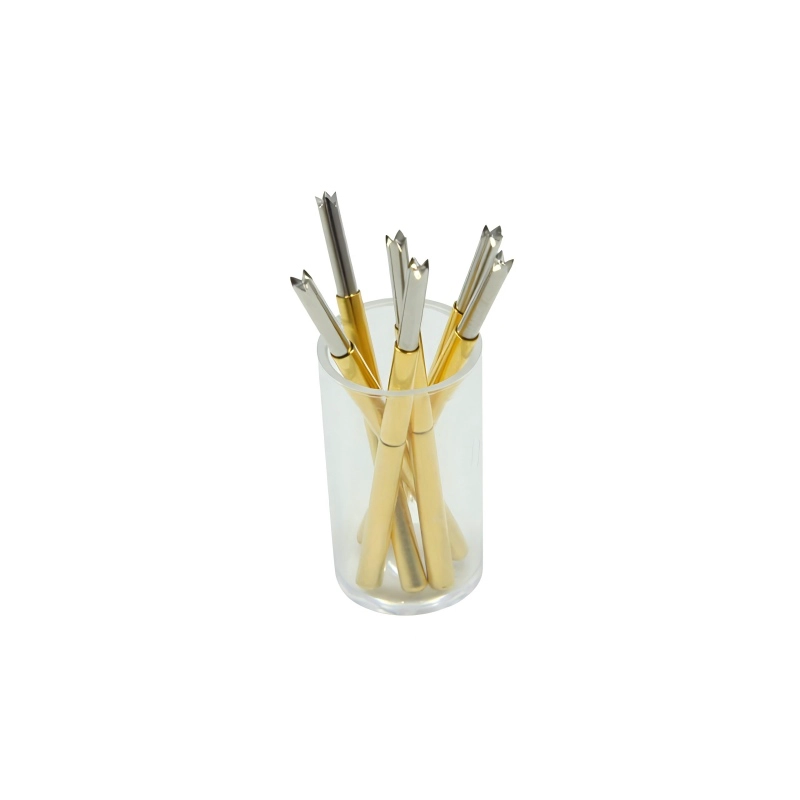

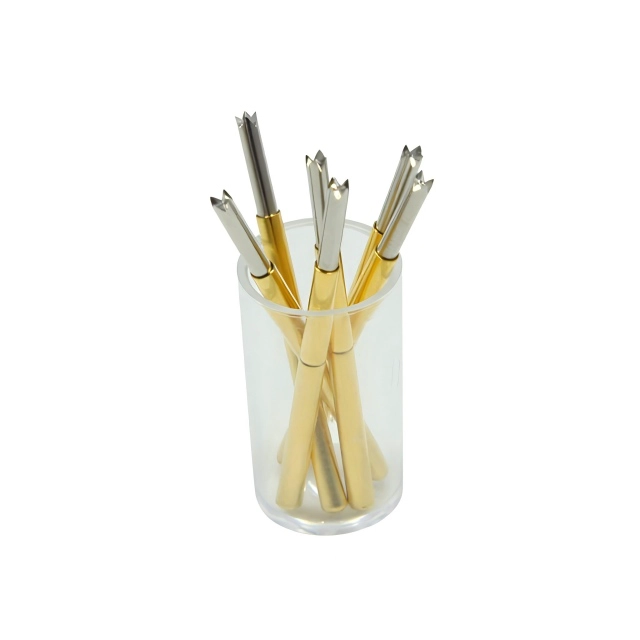

Famous Brand Spring Loaded ICT Probe Free Sample Board Test Fixture Probe

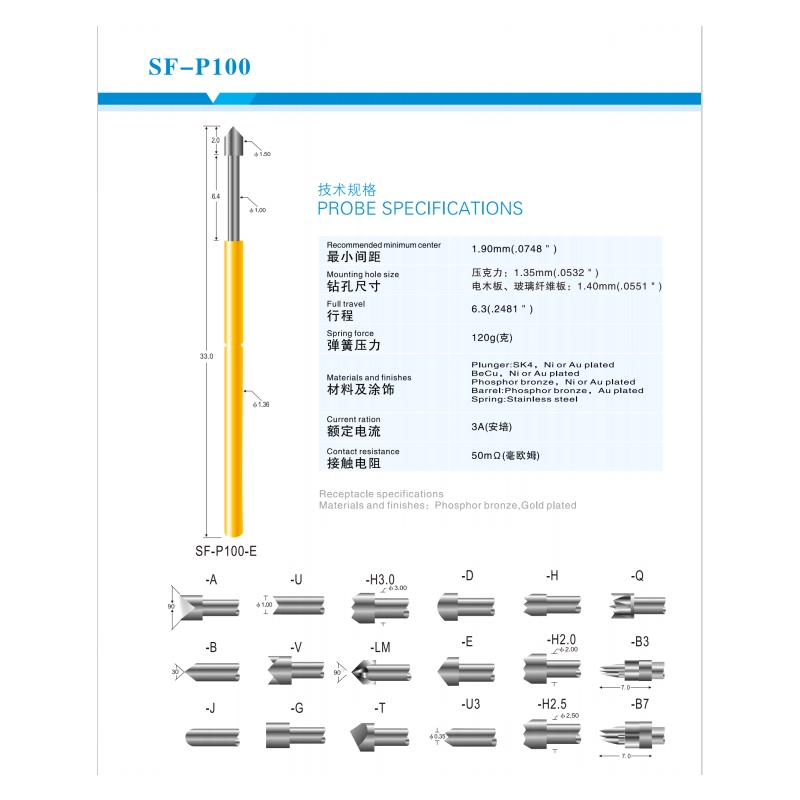

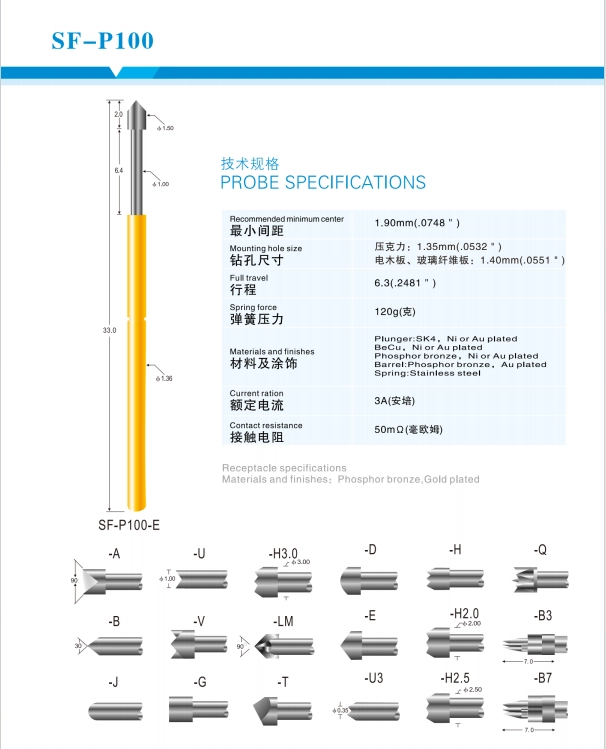

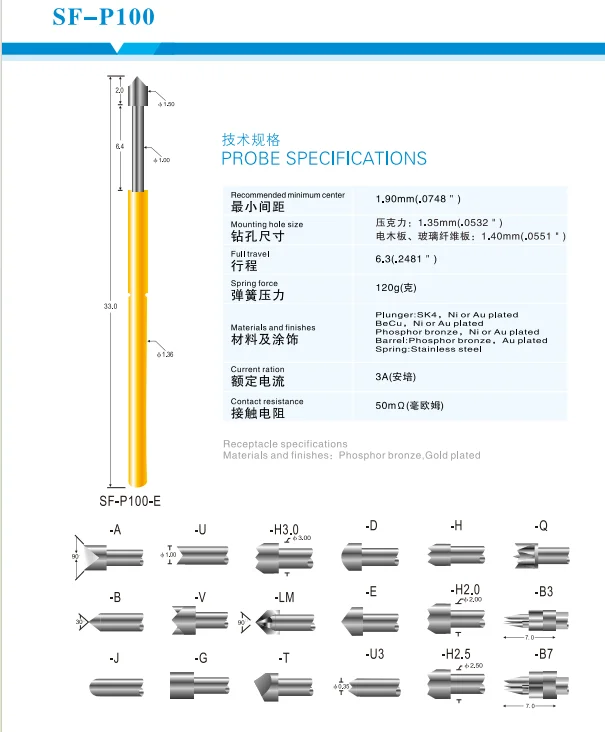

Specifications

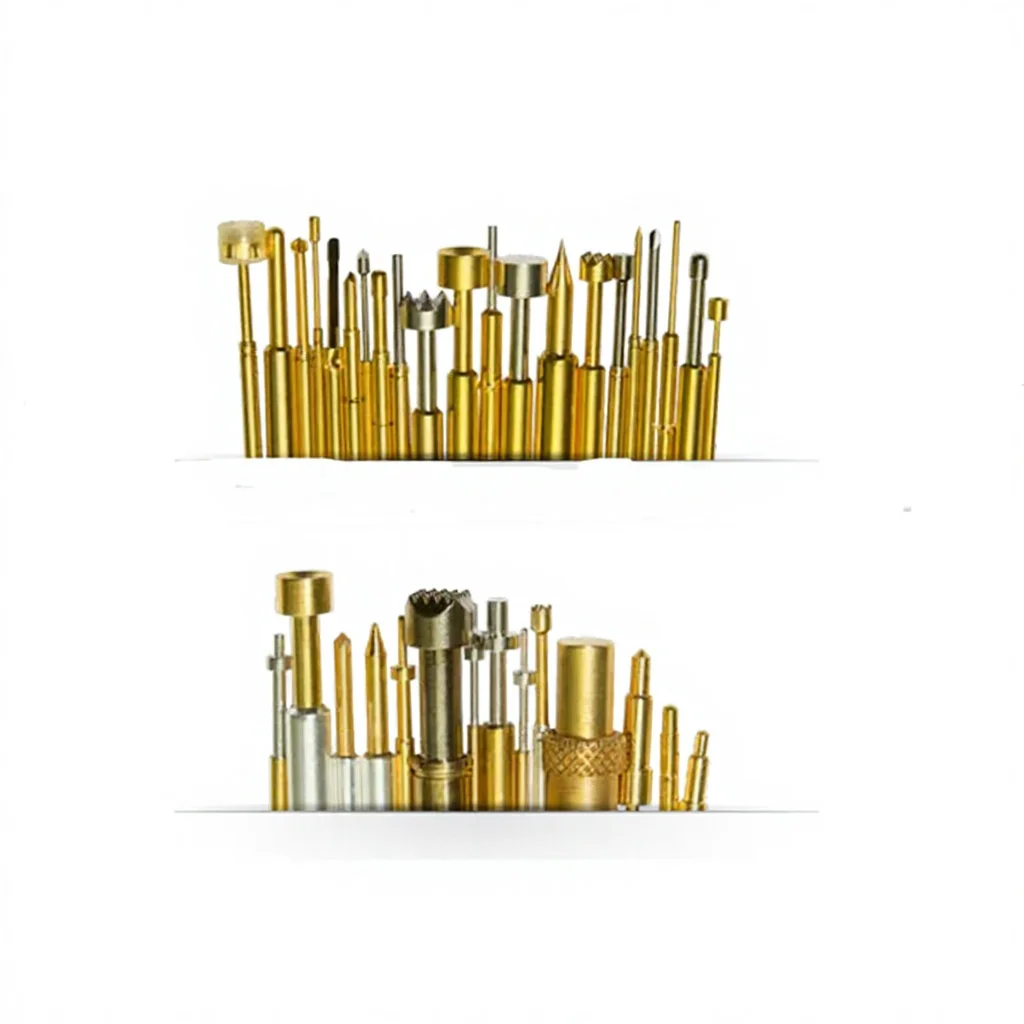

Main Products
Spring-loaded pin (single) of PCB, ICT, FCT testing;
Spring pin (connector) to establish a connection between two printed circuit boards for charging, positioning, batteries, semiconductors and amplifiers; interconnect applications;
BGA and semiconductor test double-ended probe;
Universal pin no spring, paint needle, LM pin QZ and VZ series;
High current probe, the probe switches, capacitors needle;
Pier and amplifier; socket / socket;
Other related electronic components, 30 # OK line, jig lock, POM, iron hinges, etc.
Product Flow
Measuring Equipment
Certification
Company Introduction
Exhibition
Customer Visits
Packaging & Shipping
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:20A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥9.0mm
Recommended Working Travel:2000g±15%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:600A
Contact Resistance(Initial):≤0.5mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:8000g±20%(5.0mm)
1.Material: Copper Alloy
2.Surface Plating: Partial gold-plated over nickel
3.Mechanical Durability:≥30000cycles
4.Temperature Rise:≤20℃
5.Current Rating:25A
6.Contact Resistance(Initial):≤1mΩ
7.Maximum Travel:≥8.0mm
8.Recommended Working Travel:2500g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Temperature Rise:≤15℃
Current Rating:30A
Contact Resistance(Initial):≤0.6mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:2500g±20%(5.0mm)
