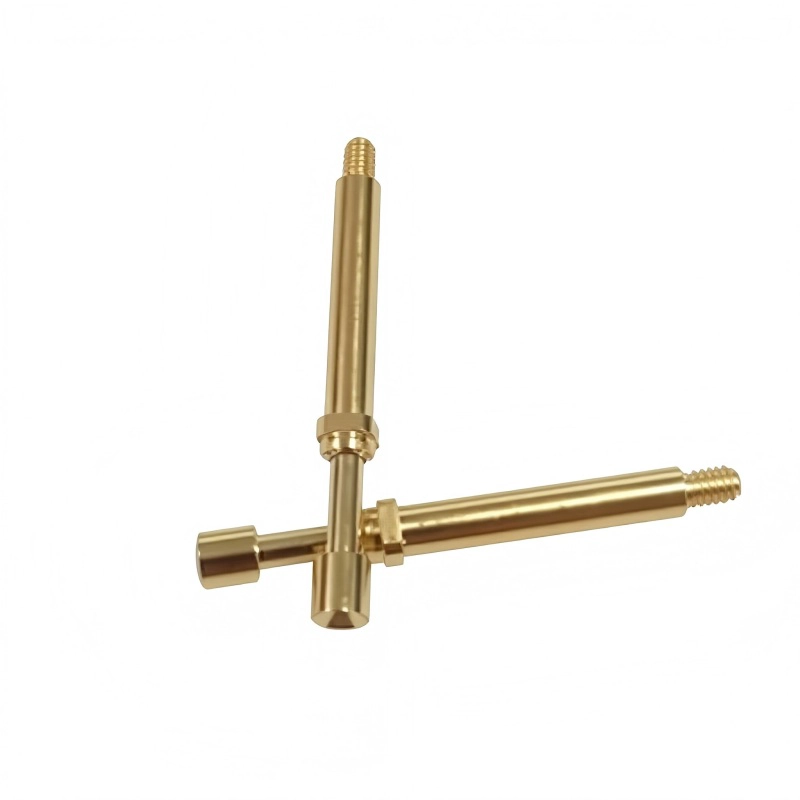

Free Sample Wiring Harness Screw-in Type Test Probe Pins
- Brand:SFENG
- Key Words:Screw-in Test Probe
- Model:SF-113-303-300-A-1502M
- Length:29.5mm
- Material: Brass
- Finishes: Au on Ni plated
- Packing: Plastic bag and loaded into carton
- Product Details
Production Specifications
| Product Name | Free Sample Wiring Harness Screw-in Type Test Probe Pins |
| Item No. | SF-113-303- 300-A-1502M |
| Material |
Plunger:Becu Barrel:Brass Spring:SWP |
| Plating | Au on Ni plated |
| Current Rating | 5A |
| Contact Resistance | ≤50mΩ |
| Full Stroke | 5.30mm |
| Rated Stroke | 4.0mm |
| Spring Force | 150±25gf load4.0mm |

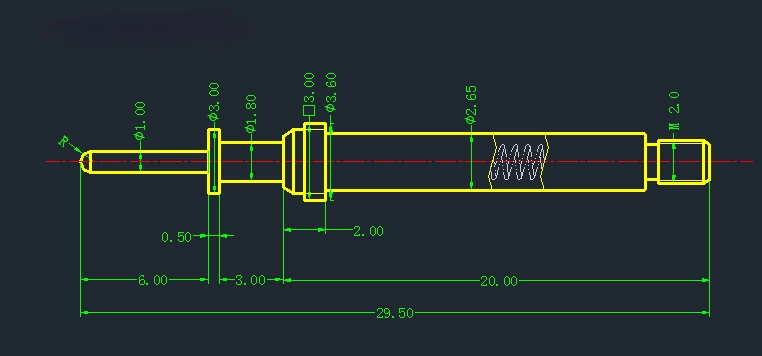

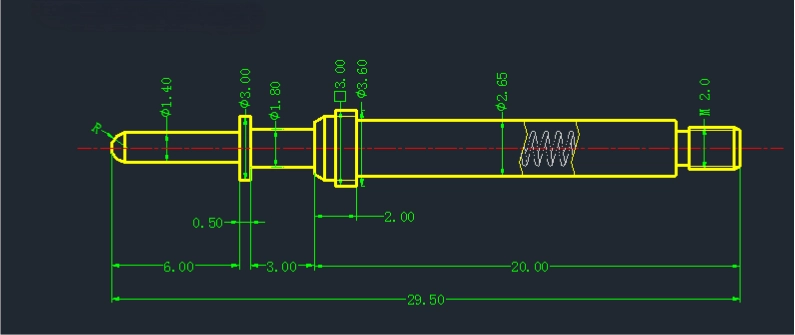

Screw Probe Drawing
We have different sizes for you to choose, and also we can design according to your drawing.
