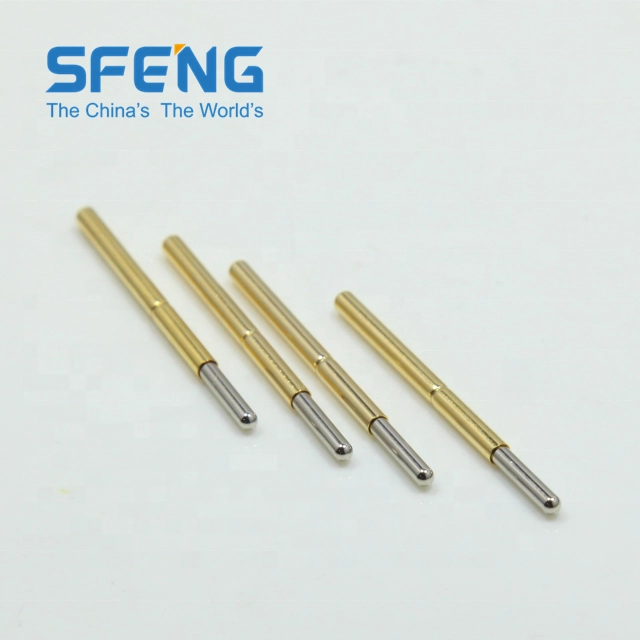

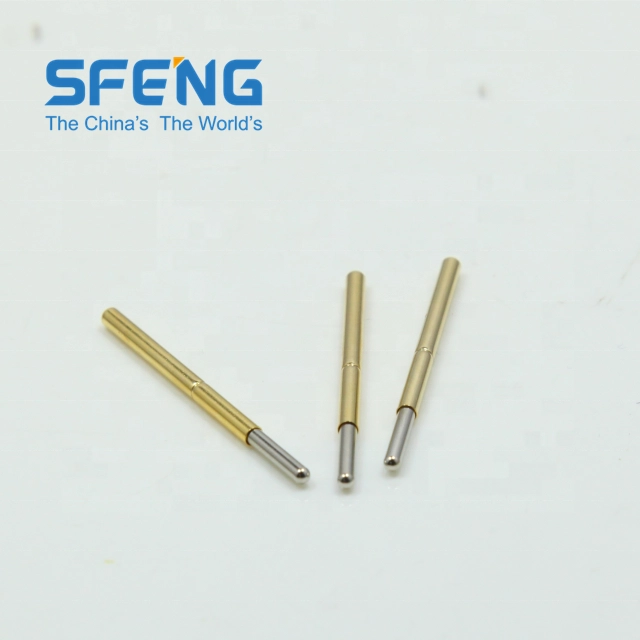

PCB Contact Probe Test Pin With Gold Plated

PCB Contact Probe Test Pin With Gold Plated

  • Brand:SFENG
  • Model:SF-P50
  • Size:L.16.4mm
  • Material: Brass
  • Finish: Ni-plated or Gold-plated
  • Packing: Plastic box and loaded into carton
  • Product Details
About Us

SFENG was founded in 1984 and headquartered in Ningbo. It is a professional enterprise integrating research, development, production, and sales. ( pcb test jig factory china) Products include in-circuit spring test probe, semiconductor spring test probe, battery charging pogo pin and the related accessories. Products are widely used in technology, automobiles, energy, telecommunications, medical, and other peripheral electronic products.

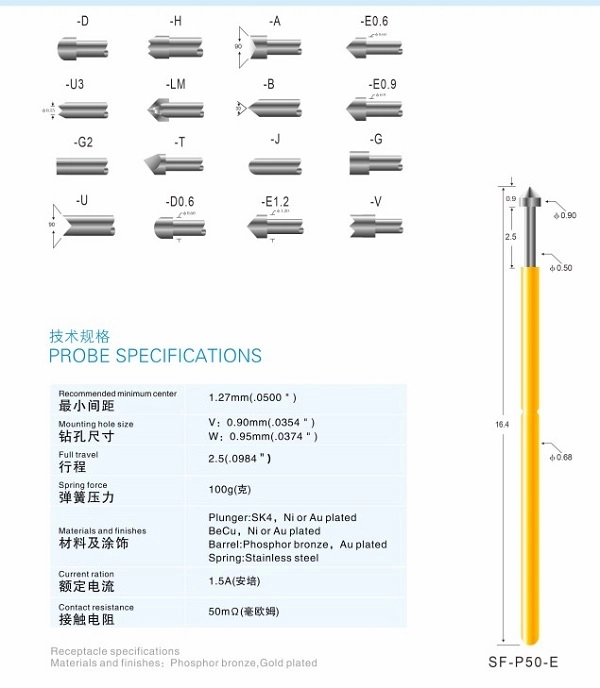

Product Specification:









Product Parameters:



Model Number

SF-P50

Recommended minimum center

1.27mm(.0500")

Mounting hole size

V:0.90mm(.0354")

W:0.95mm(.0374")

Full travel

2.5(.0787")

Spring force

100g

Materials and finishes

plunger:SK4,Rh plated

Barrel:Phosphor bronze,Gold plated

Spring:Music wrire,Gold plated

Current ration

1.5A

Contact resistance

50mΩ

MOQ

100pcs







Our Service

1. We can reply your inquiry within 24 working hours.
2. Customized design is available and OEM are welcomed.
3. We can deliver the probe pins to our clients all over the world with speed and precision.
4. We can provide the lowest price with high quality product to our client




Main Products

1.Spring loaded pin (single) for PCB, ICT, FCT testing etc;
2.Pogo pin (connector) to establish connection between two printed circuit boards for charging, locating, Battery, Semiconductor &  Interconnect applications;
3.Double ended probe for BGA and Semiconductor testing;
4.Universal pin without spring, coating pin, LM pin with QZ and VZ series;
5.High current probe, Switch probe, Capacitance needle;
6.Terminal & receptacle /socket;
7.Other related electronic components, 30# OK wire, Jig locks, POM, Iron hinge etc

If you require custom items,please feel free to send us inquiry for more solutions!



Package:






Production Flow




Quality Control








FAQ:

Q1.Are you a manufacturer?

A1:  Yes, we are an experienced manufacturer with our own molds and production lines.



Q2.How about quality of products?

A2: Our technicians and QC teams test the products one by one using aging line,  professional devices and instruments to ensure the quality for all products.



Q3.How about price?

A3: We are a manufacturer and always offer our customers the most competitive prices.



Q4.How to place an order?

A4: Contact with online service, or sent email to us directly, we will reply to you with product price, specifications, packing etc. soon. Thank you.



Q5.May I buy samples from you?

A5: Yes! You are welcome to place sample order to test our superior quality and service, mixed samples are acceptable.



Q6.Can I visit your factory?

A6: Yes, welcome to visit our factory at your convenient time.



Q7.How can I make OEM or ODM orders?

A7: We have different print processing for different OEM/ODM orders. Please contact us with online service or send email to us directly.



Q8. How should I pay for my orders?

 A8: You can pay by T/T, L/C at sight would be available for qualified bank and MOQ required for each order.



Logistics:



Sample order ship by DHL, UPS, FedEx, TNT, EMS etc

For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer’s forwarder or ours




Certifications

Factory Show:








Exhibition & Fair




Hot Tags : PCB test probe pin
