SFENG Factory Price 10A Coaxial Probe Spring Contact Pin

SFENG Factory Price 10A Coaxial Probe Spring Contact Pin

  • Item:SF3028
  • Material: Brass, SUS304, PEEK
  • Finish: Au plated
  • Size: ø4.2*44.5mm
  • Current Ration: 10A
  • Packing: Plastic box and loaded into carton
  • Product Details

Product Specification

 Item Code SF3028
 Material Plunger:C3604
Barrel: Brass, PEEK
Spring: SUS304
 Spring force 470g
 Recommended Stroke 6.6mm
 Current Ration 10A
 Resistance <10mΩ

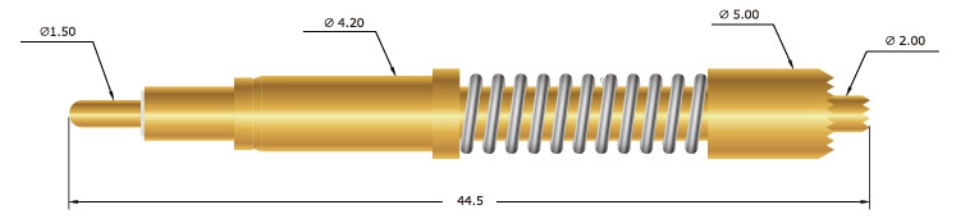

Product Drawing



Our Service

1.Reply your inquiry withn 24 working hours

2.Customized design is available,OEM are welcomed

3.Delivery the probe pins to our clients all over the world with speed and precision

4.provide the lowest price with high quality to our client



Main Products

---Spring loaded pin(single) for PCB,ICT,FCT testing,etc;

---Pogo pin(connector) to establish a(usuallytemporary)connection between

  two printed circuit boards for charing, locating, Battery, Semiconductor &

  interconnectApplications;

---Double ended probef orBGA&semiconudtion testing;

---Universal pin without spring,coatingpin,LM pin withQZ&VZseries;

---High current probe,Switch probe,Capacitance needle...

---Terminal&receptacle/socket;

---Other related electronic compents,30#OKwire,Jig locks,POM,Ironhinge,etc

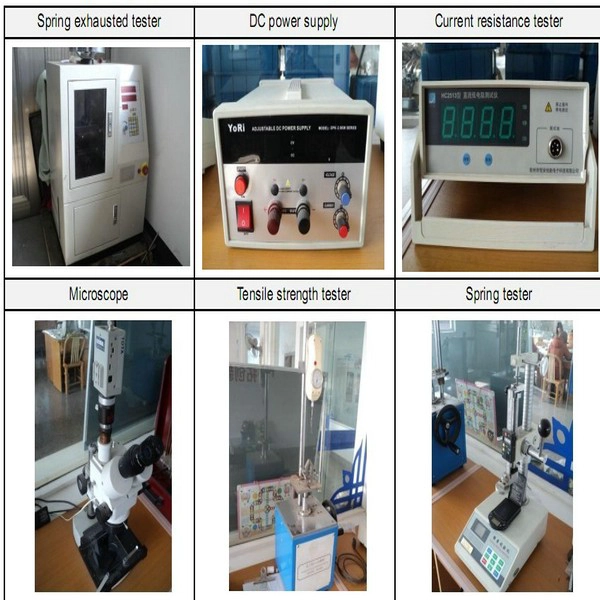

Quality Control

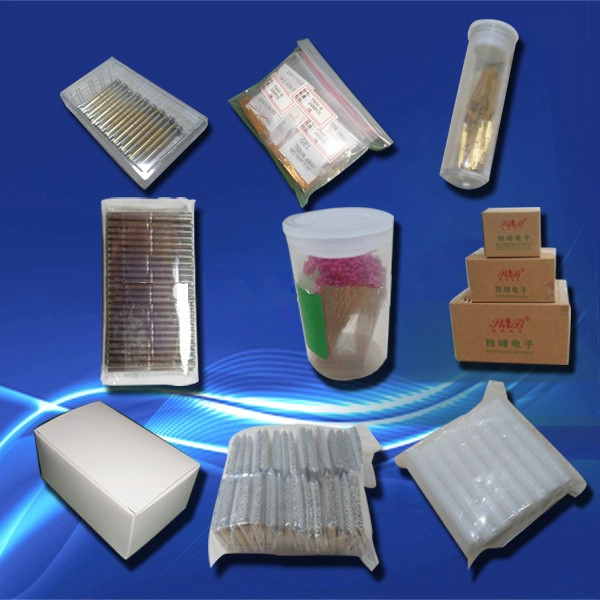

Packing Picture

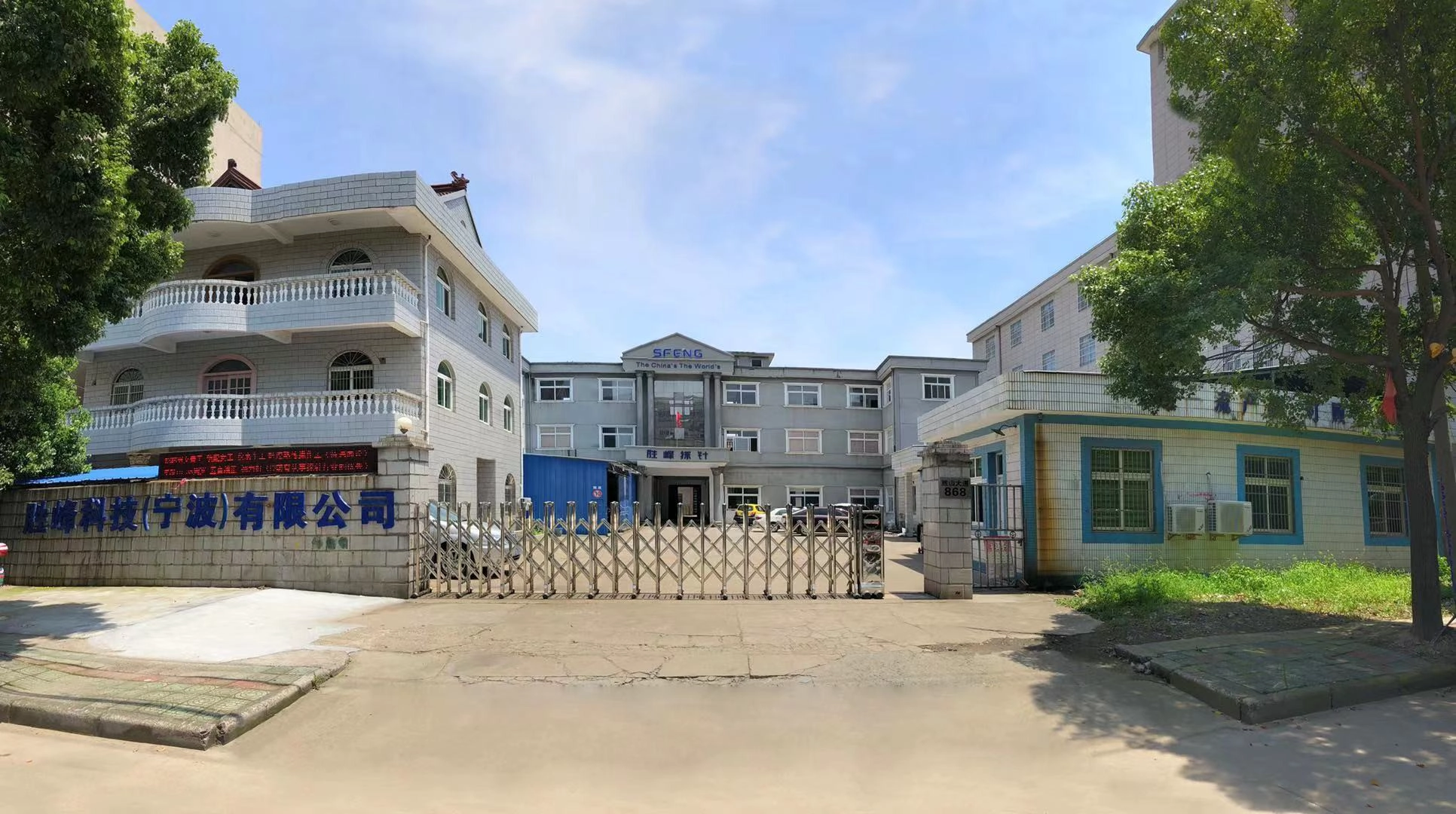

Factory Image
