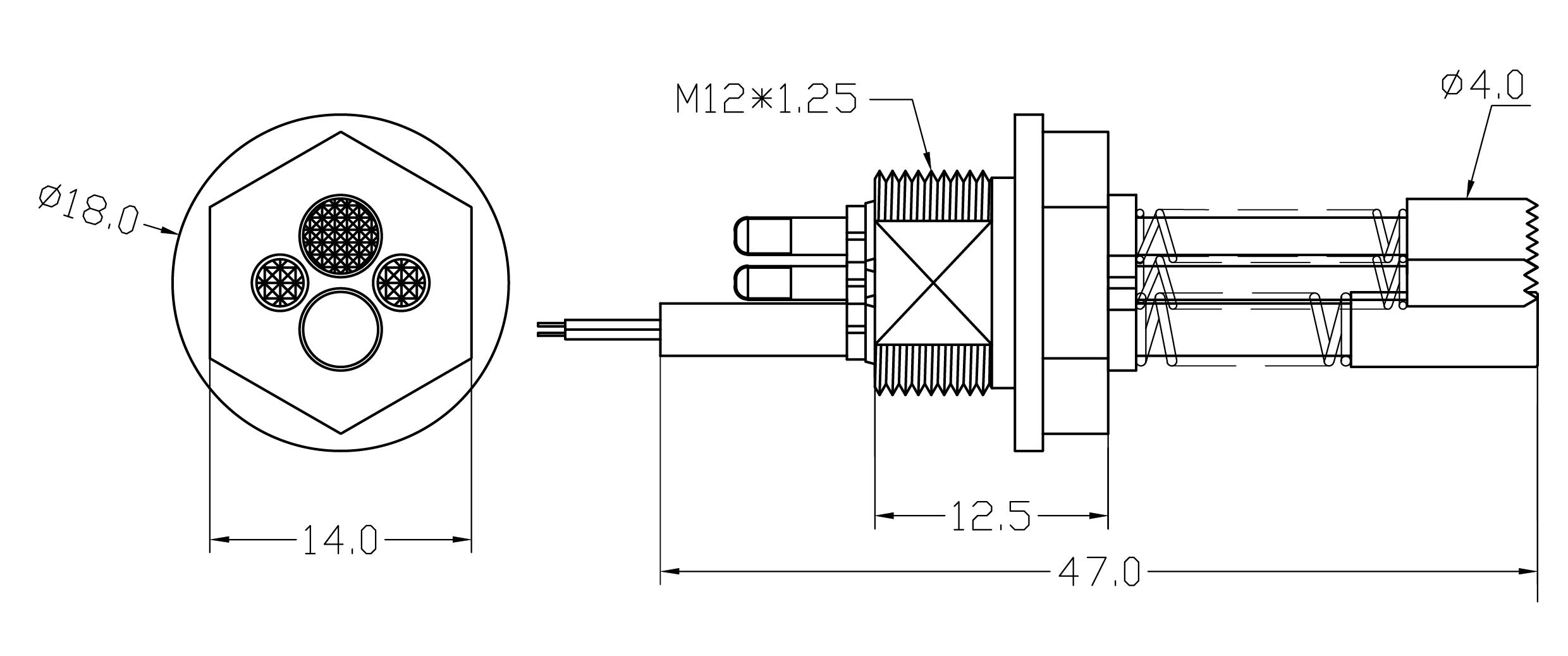

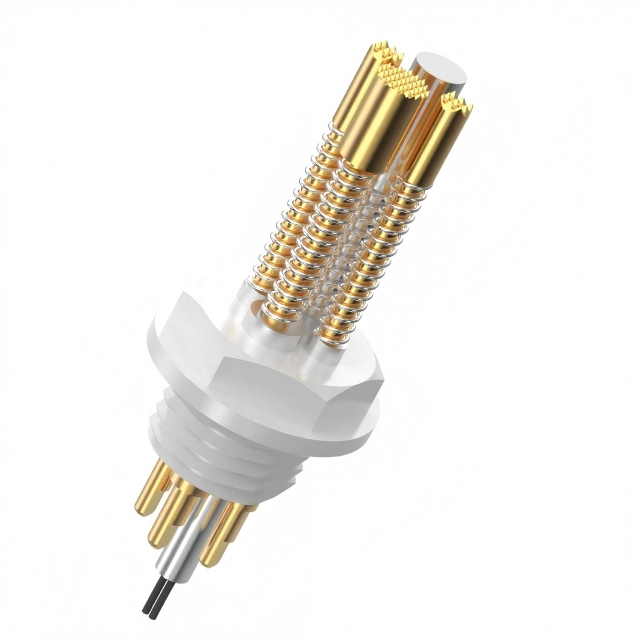

World Famous 6A Current Multiple Pins Battery Tester Probe
Technical Parameters
| Material | Copper Alloy |
| Surface Plating | Partial gold-plated over nickel |
| Mechanical Durability | ≥30000cycles |
| Operating Temperature | -40℃/+105℃ |
| Current Rating | 6A |
| Contact Resistance(lnitial) | ≤20mΩ |
| Maximum Travel | ≥4.5mm |
| Recommended Working Travel | 180g±20%(3.0mm) |
About Us
SFENG was founded in 1984 and headquartered in Ningbo. It is a professional enterprise integrating research, development, production, and sales. ( big current probe on sales china ) Products include in-circuit spring test probe, semiconductor spring test probe, battery charging pogo pin and the related accessories. Products are widely used in technology, automobiles, energy, telecommunications, medical, and other peripheral electronic products.
Product Flow
Testing Equipment
Custom Visits
FAQ
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:20A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥9.0mm
Recommended Working Travel:2000g±20%(4.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:10A
Contact Resistance(Initial):≤10mΩ
Maximum Travel:≥7.5mm
Recommended Working Travel:450g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:6A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:1000g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:20A
Contact Resistance(Initial):≤2mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:2000g±15%(5.0mm)
