Product Specification

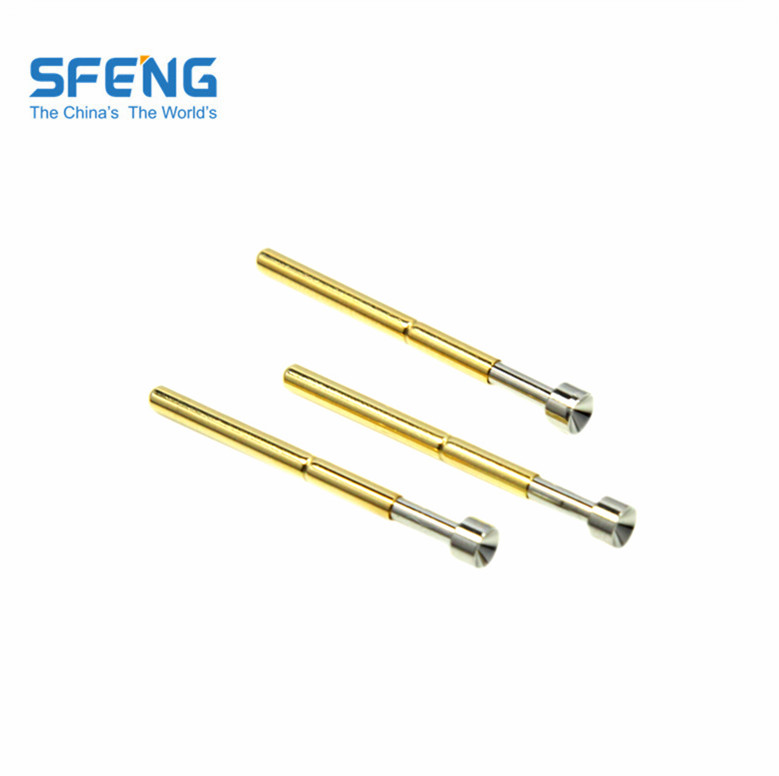

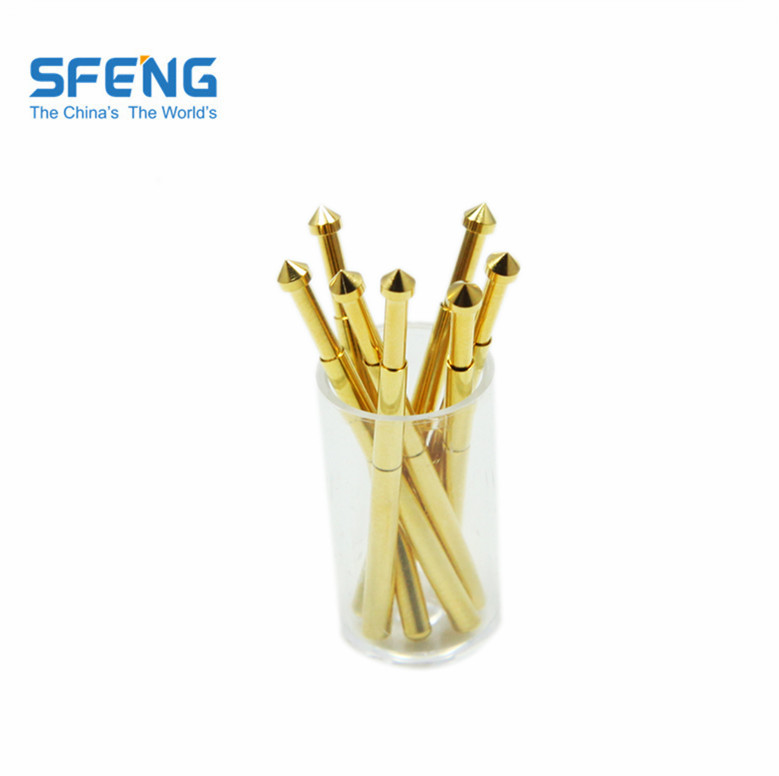

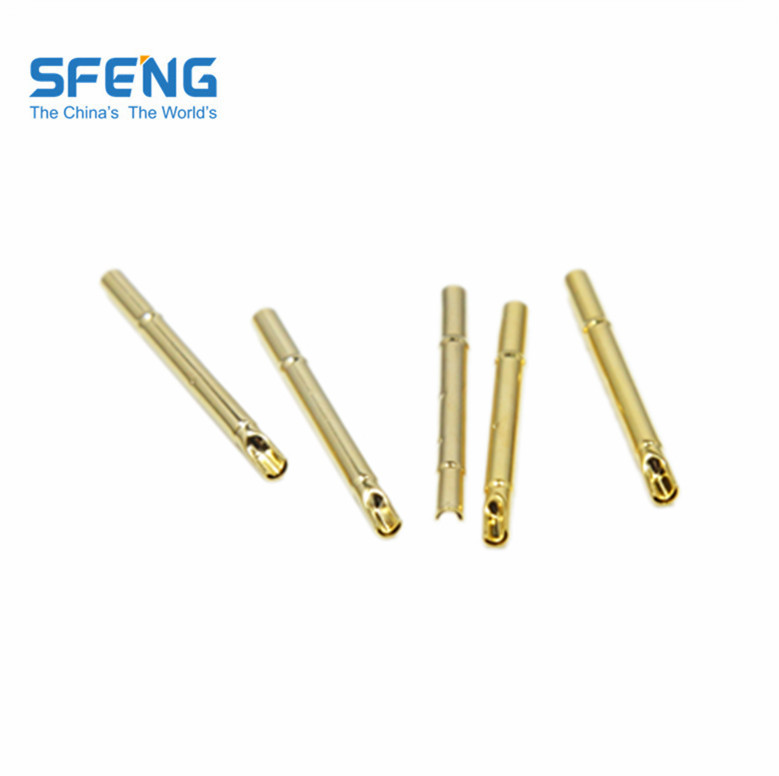

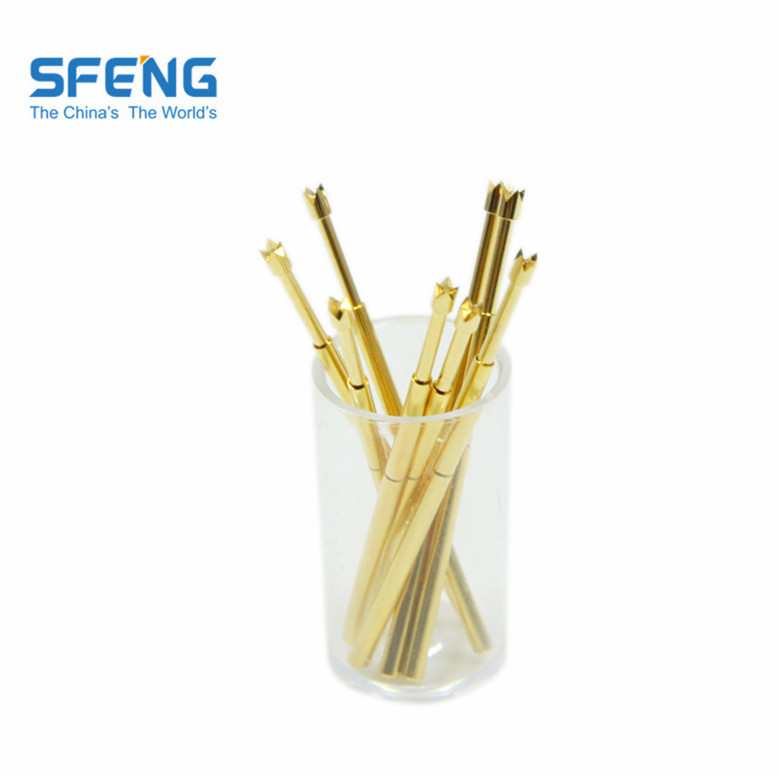

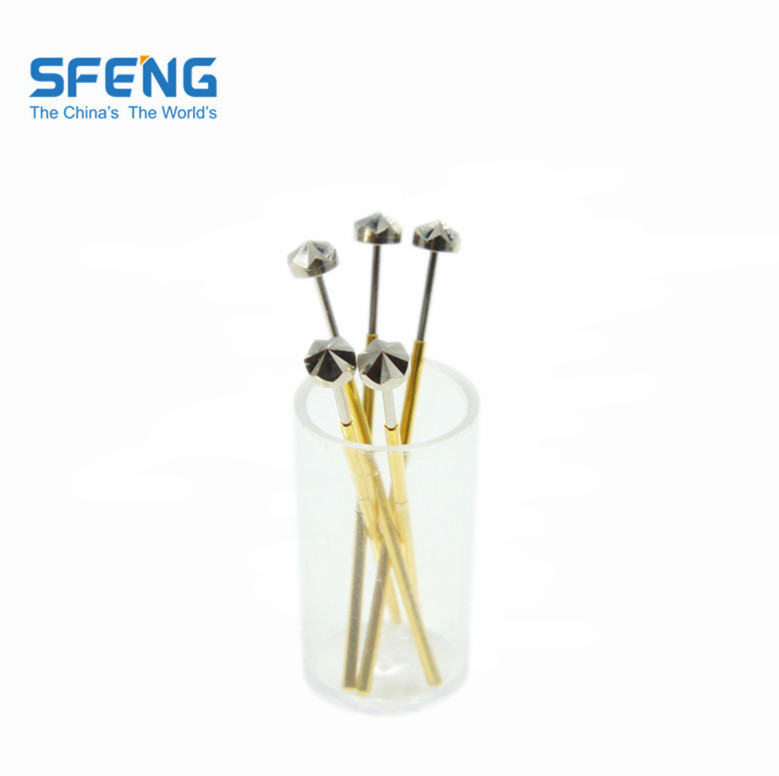

| item | SFENG standard size probes |
| meterial | brass with gold plated or nickel plated |
| spring | music wire |
| Tips | -A -B -D -E -F -H -T -U -V... |
| MOQ | 100pcs |
| delivery | within 7 working days |
| payment | 100% T/T in advance or paypal |
| package | box |
| shipping information | shipped by FEDEX,DHL,TNT,UPS... |
|
|
Product Image
FAQ
main products
spring pin (single) for PCBs, ICT, FCT testing etc;
Pogo pin (connector) to establish the connection between the two circuit boards for loading, location, battery, Semiconductor & amp; amp; interconnect applications;
double ended probe for BGA and semiconductor testing;
Universal pin without spring coat pin, pin LM with QZ and VZ series;
High current probe, Switch probe needle capacitance;
Terminal & amp; amp; receptacle / plug;
Other related electronic components, wire # 30 OK, Jig locks, POM, hinge iron etc.

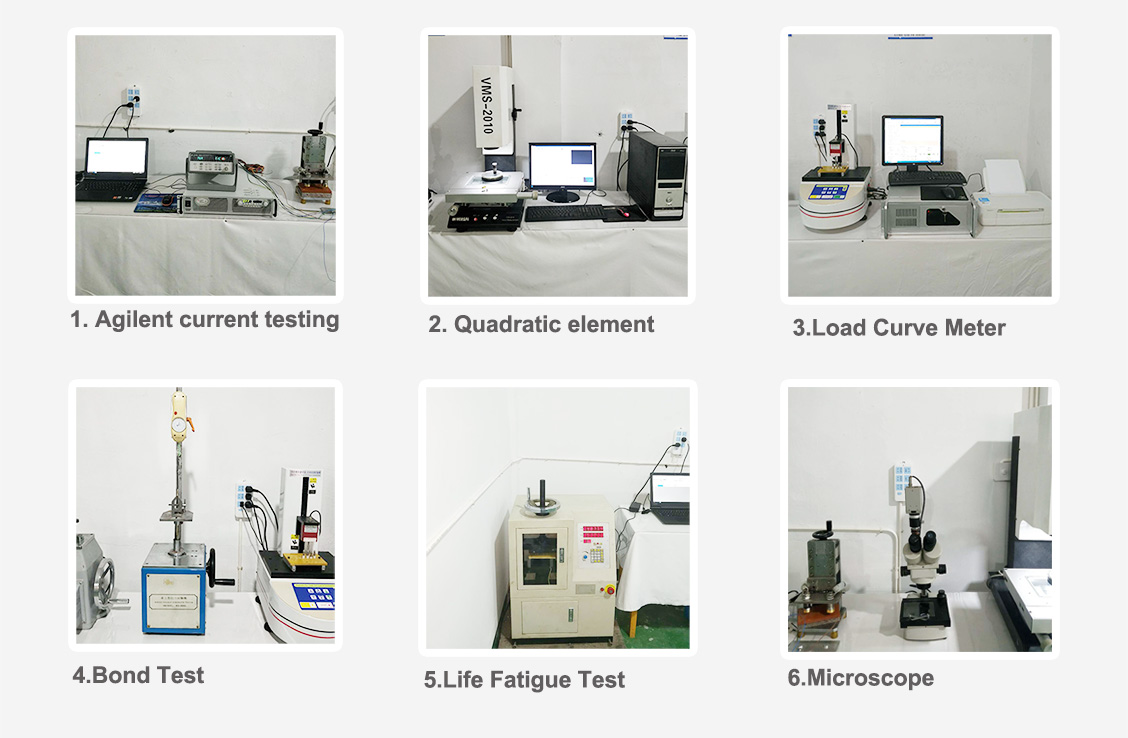

Quality control
Packing Photo
Shipping information
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Type: pogo pin
Current:2A
Size:customized
Material: brass
Plating: gold plated
Current: 10A
Lifetime: 300,000 times
Application:mobile phones,portable electronic devices,communications,automobiles,etc.
Type: pogo pin connector
Material: brass
Plating: gold plated
Current: 5A
Lifetime: 300,000 times
Application:mobile phones,portable electronic devices,communications,automobiles,etc.
Item: SF-PPA3.1X12-J2.4
Materials: Brass
Spring: SUS304
Finish: gold plated
Item: SF-PPA 5.5X24
Plunger: brass
Body: brass
Spring: stainless steel
Spring force: 300g ± 20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 5u" Barrel: Au 5u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:60g±20%
Customized support:ODM/OEM All specifications accept custom
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 5u" Barrel: Au 5u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:60g±20%
Custom Support:ODM/OEM
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 5u" Barrel: Au 5u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:60g±20%
Custom Support: OEM/ODM support
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 5u" Barrel: Au 5u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:100g±20%
Customized Support:OEM/ODM, all specificstion accept to custom.
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 3u" Barrel: Au 3u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:60g±20%
Material:Barrel/Plunger:Brass Spring:304StainlessSteel
Plating:Plunger:Au 3u" Barrel:Au 5u" Over 50~120u" Ni
Mechanical Durability:≥10000cycles
Rated current&voltage:12V/3.0A
Spring Force:100g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 5u" Barrel: Au 5u" Spring: Au 1'' Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:80g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 3u" Barrel: Au 3u” Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:70g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 15u" Barrel: Au 5u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/3.0A
Spring Force:100g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 3u" Barrel: Au 3u" Spring:1u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:100g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 4u" Barrel: Au 10u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/2.0A
Spring Force:75g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 3u" Barrel: Au 3u" Spring:Au 1u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/3.0A
Spring Force:280g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 3u" Barrel: Au 5u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:20g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 5u" Barrel: Au 5u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/2.0A
Spring Force:100g±20%
Item No:SF-PG2.9-6.5-2.0-W2.5-2.0-1.5-2
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 4u" Barrel: Au 4u" Over 60-80u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:30g±20%
