With the rapid development of science and technology, the complexity of hardware and software continues to increase, and testing has become a key link to ensure product quality. As an important measurement tool in the testing process, test probes play an important role in diagnosis and debugging.(pogo pin receptacle insertion tool) This article will deeply explore the principles, application scenarios and matters needing attention when using test probes.
micro pogo pin connector supplier china

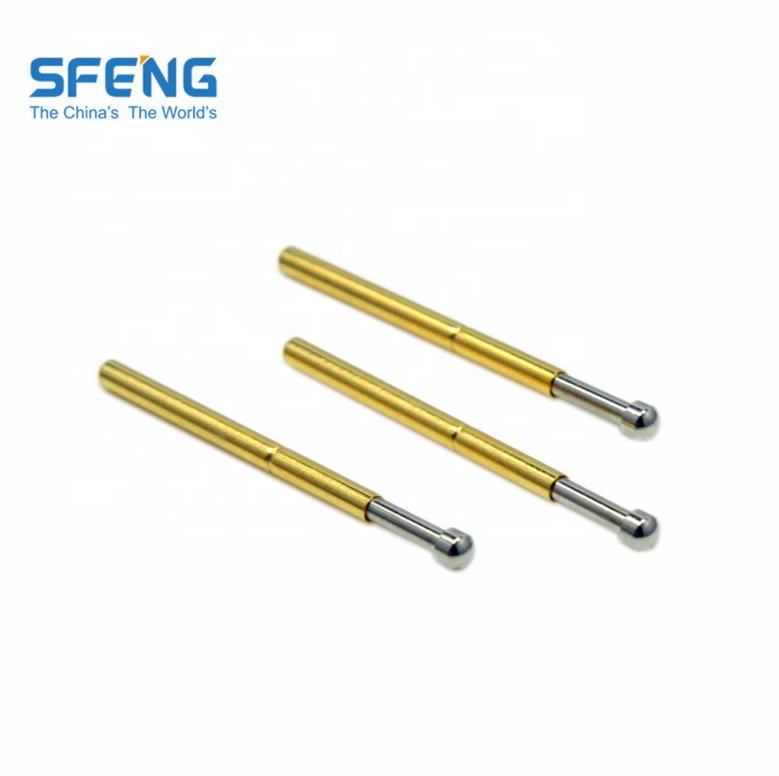

A test probe is defined as a hardware device used to connect the pins of the device under test and test equipment to measure parameters such as voltage, current, resistance, etc. Its working principle is to use probes to contact the pins of the device under test and transmit the signal to the test equipment for analysis and processing. According to test requirements, test probes can be divided into different types such as digital probes, analog probes, and logic probes.
Test probes have a wide range of applications in actual testing. (Contacting Round Pins in Charging Connectors) For example, on the production line, test probes are used to perform parameter testing on integrated circuits, transistors and other components to ensure that they meet product design requirements. In the laboratory, test probes are used to study and analyze the performance and behavior of components on circuit boards. In addition, test probes are also widely used in fault diagnosis and circuit debugging, helping engineers quickly locate problems and fix errors.
When using test probes, you need to pay attention to the following:
Probe quality: Choose high-quality test probes to ensure the accuracy and stability of test results.
Probe cleanliness: Make sure the probe surface is clean before use to avoid affecting the test results.
Probe pressure: When the probe comes into contact with the pin of the device under test, appropriate pressure should be maintained to avoid damage to the pin.
Probe maintenance: Regularly check whether the probe is worn or bent. If there is any problem, replace it in time.
Safety measures: Wear anti-static bracelets and other safety equipment during operation to ensure the safety and reliability of the testing process.
In short, test probes, as an important tool for measuring hardware performance, play an indispensable role in the product development and production process. Understanding the working principle, application scenarios and usage precautions of test probes can help improve test quality and speed up product launch. In the future, with the continuous advancement of technology, test probes will be applied and developed in more fields.
