What is a test probe concentric needle?

2023-06-19 15:38:53

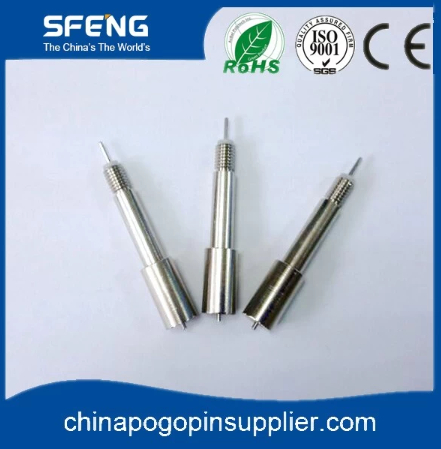

The concentric pin of the test probe is a tool used to test the circuit. (coaxial probe feeding technique china factory)It consists of two pins, one for contacting the Test point on the circuit, and the other for grounding. This tool is typically used to test parameters such as circuit connectivity and voltage to ensure the normal operation of the circuit.



The concentric probe of the test probe is very simple to use, just insert the probe into the Test point on the circuit. Due to its very small needle tip, it can be easily inserted into small holes on the circuit board for testing various parts of the circuit. (high frequency probe price 2023) In addition, test probes with concentric pins can also be used to test solder joints and connectors on circuit boards to ensure their quality and reliability.






The advantage of testing concentric probes is that they can quickly and accurately test various parts of the circuit, and are very convenient to use. In addition, it can also be used to test various components on circuit boards, such as resistors, capacitors, diodes, etc., in order to check whether their parameters meet the requirements.



However, there are also some drawbacks to testing concentric probes. ( test probes with coaxial design china) Firstly, due to its very small needle tip, it is prone to damage or bending. Secondly, due to the fact that the concentric probe can only test parameters such as circuit connectivity and voltage, it cannot detect other parameters of the circuit, such as current and power.



In short, the test probe concentric needle is a very practical testing tool that can help engineers quickly and accurately test various parts of the circuit to ensure the normal operation of the circuit. Although it has some disadvantages, the concentric probe of test probe is still a very important tool in practical application, which can help engineers to better complete In-circuit testing.
