What is the current rating of the pogo pin?

2023-11-21 13:59:14

Pogo pin is a commonly used electronic connector, which is usually used to connect circuit boards and external devices of electronic devices. It has a simple design, compact structure, and good electrical connection performance and reliability. When using a pogo pin, we need to know its current rating to ensure a safe and reliable electrical connection.


The current rating of a Pogo pin depends on its design and material selection. Generally speaking, the current rating of a pogo pin can range from a few milliamps to tens of amps. The specific current rating depends on several factors:

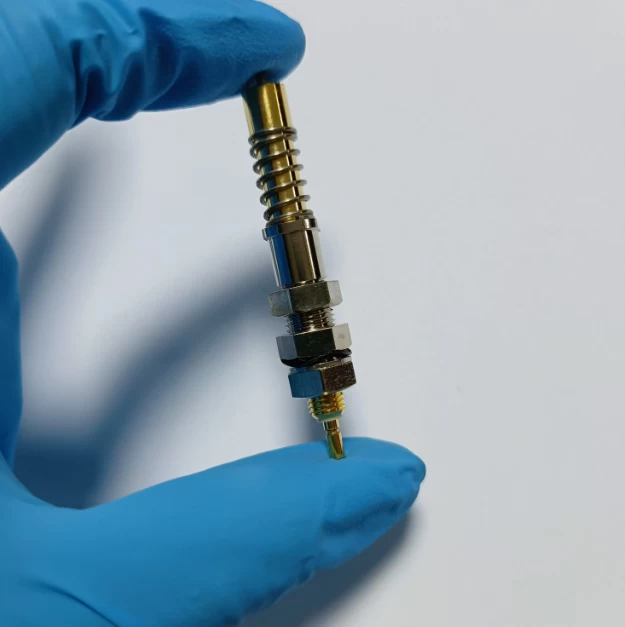

 High Current Pogo Pin Supply china

The first is the design of the pogo pin. Well designed pogo pins usually have higher current carrying capabilities. They use high-quality conductive materials such as copper or silver to ensure good electrical connection performance. In addition, a well-designed pogo pin will also take into account current conduction and heat dissipation issues to ensure that no overheating occurs under high current.


The second is the material selection of the pogo pin. Different materials have different current carrying capabilities. Generally speaking, copper and silver are commonly used conductive materials, which have good conductive properties and high current carrying capacity. In comparison, some cheaper materials, such as steel or iron, may have lower current-carrying capabilities. Therefore, when choosing a pogo pin, we should choose good quality materials to ensure that it can withstand the required current.


Finally, there is the size and structure of the pogo pin. (High Current Probes For Lithium Battery Charging System) Generally speaking, larger size pogo pins usually have higher current carrying capabilities. This is because the larger size provides a larger conductive area, thereby reducing the resistance for current to flow through. In addition, some pogo pins also adopt special structural designs, such as multi-point contacts or multi-layer conductive structures, to improve current carrying capacity.


In general, what the current rating of a pogo pin is depends on factors such as its design, material, and size. When selecting and using pogo pins, we should determine the required current rating based on the specific application needs and select the appropriate pogo pin. At the same time, we should also pay attention to the use environment and working temperature of the pogo pin to ensure that it can work safely and reliably. By correctly selecting and using pogo pins, we can achieve stable and reliable electrical connections for electronic devices.
