What tool is used to test a wiring harness?

2023-12-16 13:53:04

A wiring harness is a collection of wires, connectors, and terminals that are used to transmit electrical signals and power in various electrical systems. It is commonly found in automobiles, aircraft, and industrial machinery. Testing a wiring harness is crucial to ensure its functionality and reliability. (Test probes with thread Supply china) There are several tools that can be used for this purpose, each with its own advantages and limitations.



One commonly used tool for testing a wiring harness is a multimeter. A multimeter is a handheld device that can measure voltage, current, and resistance. It is equipped with probes that can be connected to different points in the wiring harness to measure the electrical parameters. By comparing the measured values with the expected values, technicians can identify any faults or abnormalities in the wiring harness. Multimeters are versatile and can be used for a wide range of electrical testing tasks, making them a popular choice for testing wiring harnesses.



Another tool that is often used for testing wiring harnesses is a continuity tester. A continuity tester is a simple device that can determine if there is a complete electrical path between two points. It typically consists of a battery, a light bulb, and a pair of probes. When the probes are touched to two points in the wiring harness, the light bulb will illuminate if there is continuity, indicating that the electrical path is intact. This tool is particularly useful for identifying open circuits or broken wires in the wiring harness.

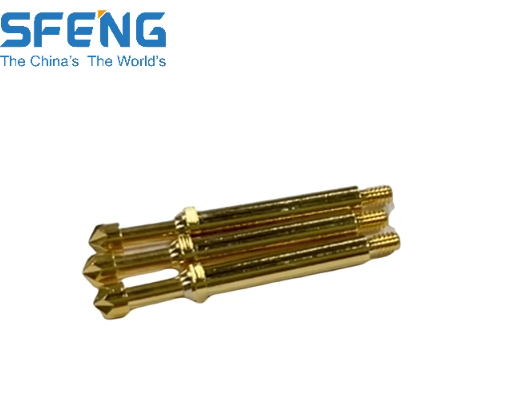

screw-in/ threaded probes china factory

In addition to multimeters and continuity testers, there are specialized tools designed specifically for testing wiring harnesses. For example, a wire harness tester is a dedicated device that can perform comprehensive tests on a wiring harness. It can check for continuity, insulation resistance, and short circuits, among other parameters. These testers often have multiple test points and can provide detailed reports on the condition of the wiring harness. While they may be more expensive than general-purpose tools, wire harness testers offer greater accuracy and efficiency in testing.



Furthermore, visual inspection is an essential part of testing a wiring harness. Technicians should carefully examine the harness for any signs of damage, such as frayed wires, loose connectors, or corroded terminals. They should also ensure that the harness is properly routed and secured to prevent any potential issues. While visual inspection alone may not be sufficient to identify all faults in a wiring harness, it is an important step in the testing process.



In conclusion, there are several tools that can be used to test a wiring harness. Multimeters, continuity testers, and specialized wire harness testers are commonly employed for this purpose. Each tool has its own advantages and limitations, and the choice of tool depends on the specific requirements of the testing task. Regardless of the tool used, thorough testing and visual inspection are essential to ensure the functionality and reliability of a wiring harness.
