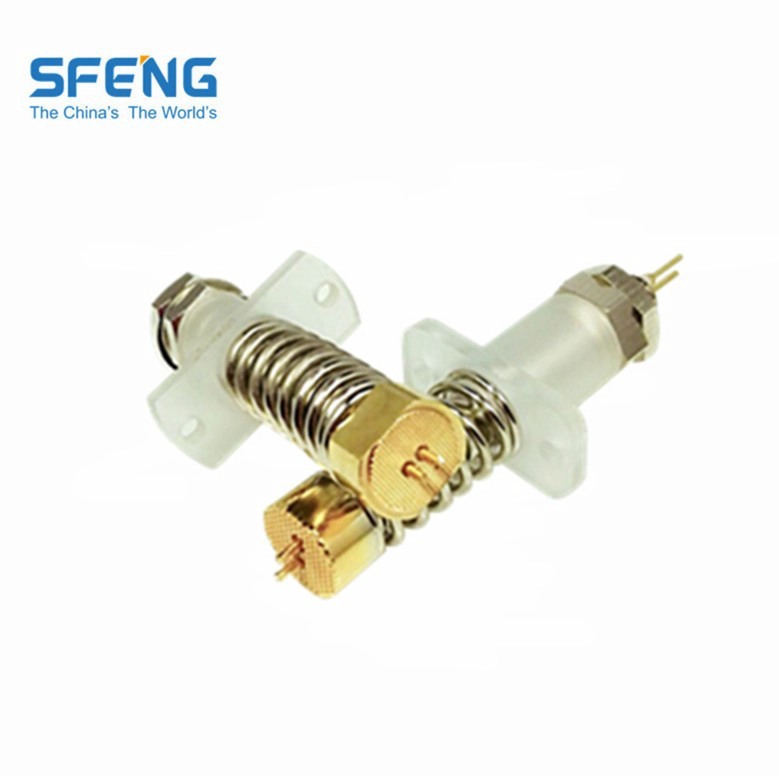

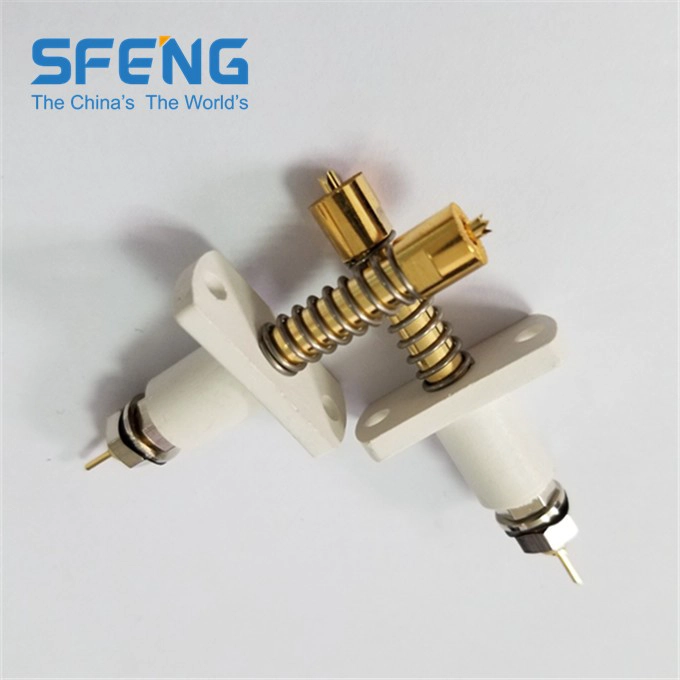

.jpg.webp "China 100 A Coaxial probes for 4 wire measurement (Kelvin method) manufacturer")
_2.jpg.webp "China 100 A Coaxial probes for 4 wire measurement (Kelvin method) manufacturer")
Specifications
|
Brand |
SFENG |
|
Model |
100A Kelvin probe |
|
Plunger |
Beryllium Copper |
|
Body |
Brass |
|
Spring |
Spring wire |
|
Spring force |
Customized |
|
Full travel |
Customized |
|
Rated voltage |
NO |
|
Current Resistance |
NO |
|
Spacing |
NO |
|
Mounting dimensions |
NO |
|
MOQ |
100 |
|
delivery time |
15 Days after confirming order |
Product Image
our service
1. Quick response.
2. Customized is accepted.
3. Short production time and fast delivery.
4. High quality and good price.
Main products
Spring-loaded pin (single) of PCB, ICT, FCT testing;
Spring pin (connector) to establish a connection between two printed circuit boards for charging, positioning, batteries, semiconductors and amplifiers; interconnect applications;
BGA and semiconductor test double-ended probe;
Universal pin no spring, paint needle, LM pin QZ and VZ series;
High current probe, the probe switches, capacitors needle;
Pier and amplifier; socket / socket;
Other related electronic components, 30 # OK line, jig lock, POM, iron hinges, etc.

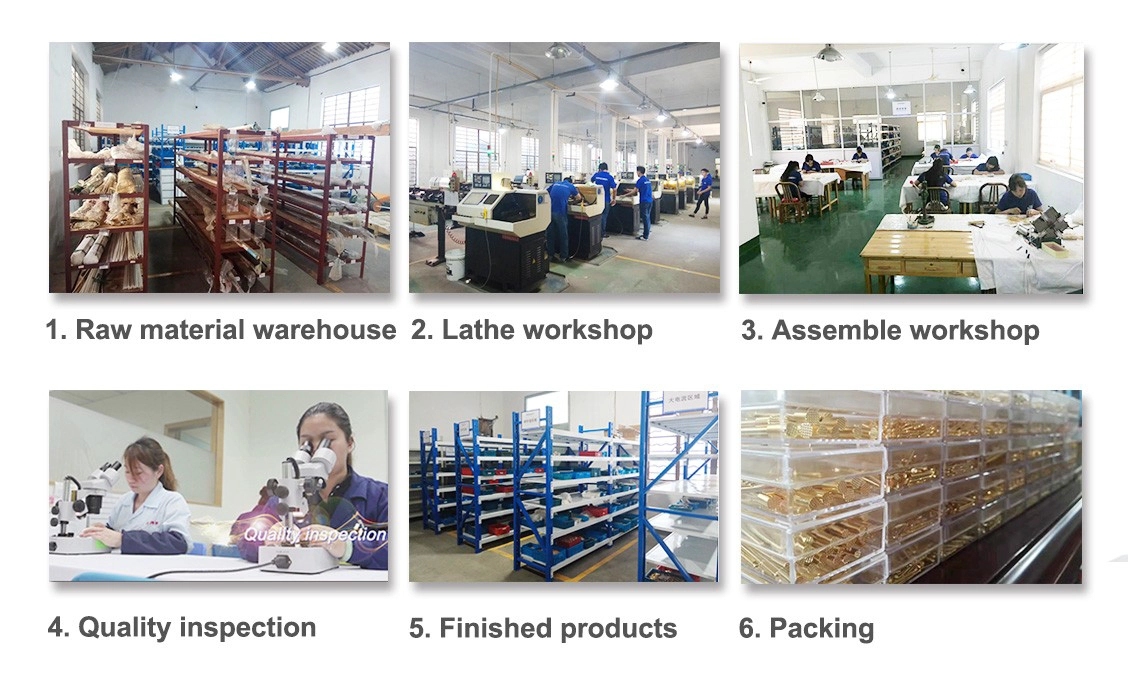

Production process

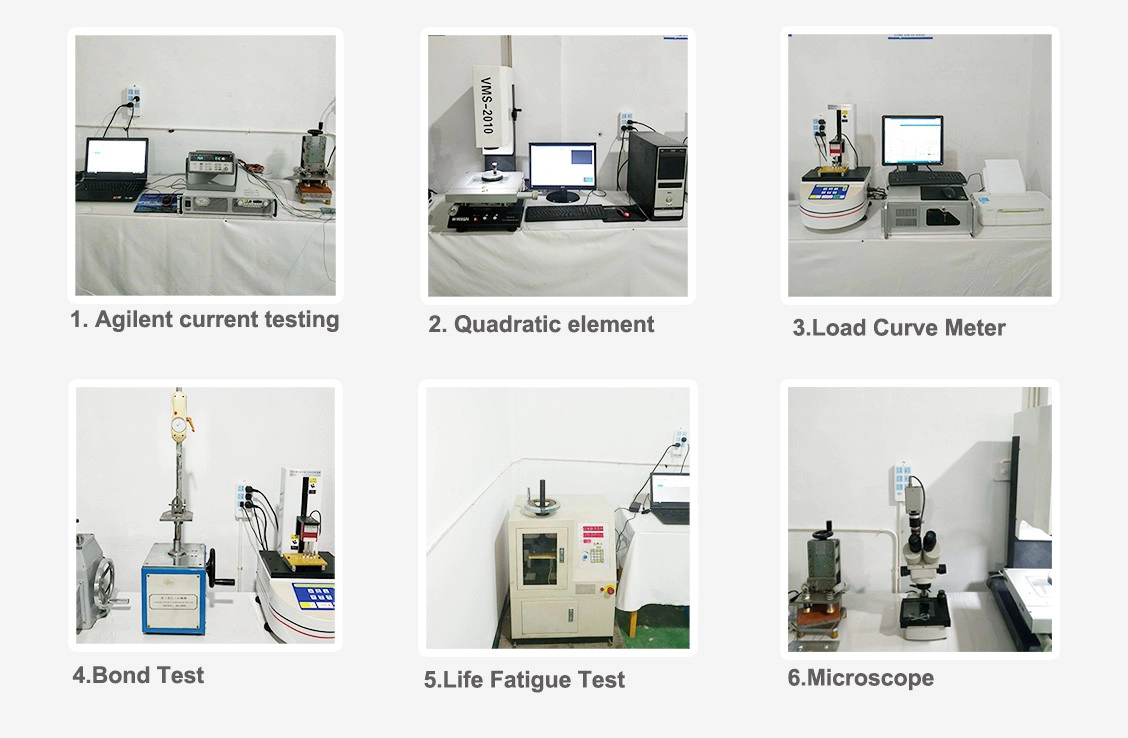

Testing equipment
Packing & delivery
Tel:+8618550184909
Wechat:+8618550184909
Contact Person:Emily
PDF Show:PDF
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .

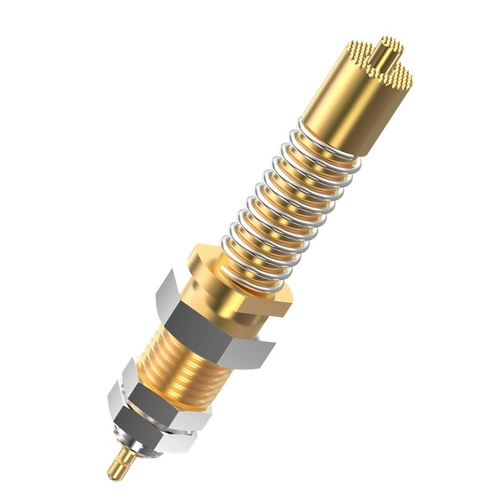

Model: SF-PV1-H-H M7.0x44.5
Material: Copper Alloy
Current Rating: 30A
Contact Resistance (Initial)：≤1mΩ
Maximum Travel：≥8.0mm
Recommended Working Travel：550g±20%(5mm)

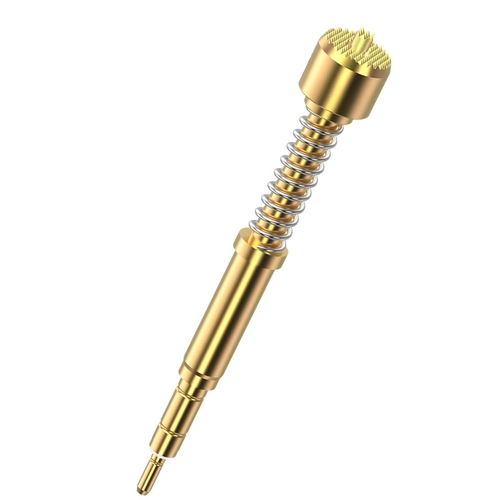

Model: SF-2.9X36-5.0
Material: Copper Alloy
Current Rating: 5A
Contact Resistance (Initial)：≤5mΩ
Maximum Travel：≥4.5mm
Recommended Working Travel：580g±20%(2.5mm)
Model: SF33.4-2.0
Material: Copper Alloy
Current Rating: 5A
Contact Resistance (Initial)：≤20mΩ
Maximum Travel：≥6.4mm
Recommended Working Travel：100g±20%(4.3mm)

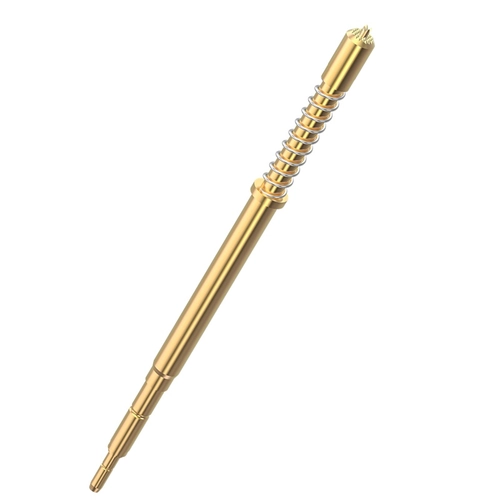

Material: Copper Alloy
Surface Plating：Partial gold-plated over nickel
Current Rating: 3A
Maximum Travel ≥4.5mm
Recommended Working Travel: 180g±20%（3.0mm）
Contact Resistance (Initial)：≤20mΩ
Operating Temperature：-40℃/+105℃
Material：Copper Alloy
Finishes：Partial gold-plated over nickle

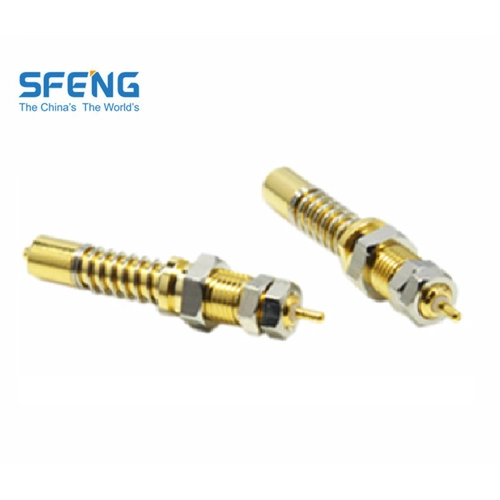

Brand: SFENG
Model: PV1-H-H 5.7X24.5
Current rating: 30A
Lifetime: 300,000 times
Plating:Gold plated
Full stroke: 8.0mm
Rated stroke: 3.0mm
Spring force: 550±15% gf @ load 5.3mm
Lifetime: 300,000 times
Plating:Gold plated
Full stroke: 8.0mm
Rated stroke: 3.0mm
Spring force: 2000±20% gf @ load 5.0mm
Lifetime: 300,000 times
Brand: SFENG
Model: PV1-H-H ø4.2*44.5
Material: Brass
Recommend travel: 2.0mm
MOQ: 100pcs
Payment term: 100% TT in advance
Brand: SFENG
Model: PV1-H-H ø4.2*44.5
Material: Brass
Recommend travel: 2.0mm
MOQ: 100pcs
Payment term: 100% TT in advance
Item Code:SF-15*68.5
Material: Copper Alloy
Current:60A
Mechanical Life Exceeds： ＞30000times
MOQ: 100pcs
Payment: T/T 100% in advance
Brand: SFENG
Model: SF-9.0*62.0
Material: Copper Alloy
Finishes: Plated gold over Nickle
Current rating: 60A
Full Compression Travel: 10.0mm
Spring force: 4200g±20%
MOQ: 100pcs
Brand: SFENG
Model: PV1-H-H M11*26.5
Material:
Plunger 1 (dia.1.5): Becu, Gold plating
Plunger 2 (dia.10): Brass, Gold plating
Barrel: Brass, Ni plated
Spring: SUS304
MOQ: 100pcs
Brand:SFENG
Item number: SF-PV1-H-H 1.78*35.6
Material:
Barrel: Phosphorous copper, Au on Ni plated
Plunger: Bece, Au on Ni plated
Plunger: Becu: Becu, Au on Ni plated
Current Rating: 3A
Contact Resistance: ＜50mΩ
Packing:Plastic bag and loaded into carton box
Brand:SFENG
Item number: PV1-H-H5.7*24.5
Size:dia6.0*L44.5mm
Material:
Barrel: Brass, Au on Ni plated
Plunger: Brass, Au on Ni plated
Plunger: Brass: Becu, Au on Ni plated
Spring: SUS304
Current Rating: 30A
Contact Resistance: ＜50mΩ
Packing:Plastic bag and loaded into carton box
Item: SF-32*83.5
Materials:Brass, Becu, PEEK, SUS304
Surface:Au plated
Size:dia.12*83.50mm
Current 2A
Packaging: plastic box, into cartons
Item:SF-PV1-H-H
Material: Brass, SUS304, PEEK
Finish: Au plated
Size: ø5.7*44.5mm
Current Ration: 30A
Packing: Plastic box and loaded into carton
Item:SF3028
Material: Brass, SUS304, PEEK
Finish: Au plated
Size: ø4.2*44.5mm
Current Ration: 10A
Packing: Plastic box and loaded into carton
Item:SF-2.9*36
Material: Plunger: Becu; AU Planting
Barrel: Brass; AU Planting
Spring: SWP
Barrel: PEEK
Size:ø2.9*36mm
Current ration: 6A;
Resistance: ＜10mΩ
Temperature：△T＜20℃
Packaging: plastic box into cartons;
Item:SF-PV1-H-H(2.9*40)
Material: Plunger: Becu; AU Planting
Barrel: Brass; AU Planting
Spring: SUS304
Barrel: PEEK
Size:ø2.9*40mm
Current ration: 3A;
Resistance: ＜10mΩ
Temperature：△T＜20℃
Packaging: plastic box into cartons;
