12A Current Ration Brass spring loaded contact pogo pin with thread screw M412A Current Ration Brass spring loaded contact pogo pin with thread screw M412A Current Ration Brass spring loaded contact pogo pin with thread screw M412A Current Ration Brass spring loaded contact pogo pin with thread screw M412A Current Ration Brass spring loaded contact pogo pin with thread screw M4

12A Current Ration Brass spring loaded contact pogo pin with thread screw M4

  • Item Name:12A Current Ration Brass spring loaded contact pogo pin with thread screw M4
  • Material: Brass,
  • Size:pogo pin SF-PPA4.0*17MM-J/M4,
  • Plating: Au plating over nickel,
  • Current ration: 12A,
  • Contact resistance:≤50m ohm,
  • Spring force: 350±60gf@load 1.5mm working stroke,
  • Lifetime: 10000cycles at least,
  • Packaging: plastic box into cartons,

12A Current Ration Brass spring loaded contact pogo pin with thread screw M4

Product Picture

 spring loaded contact pogo pin

 pogo pin

pogo pin

pogo pin

pogo pin

pogo pin

Our Service

1. We can reply yourinquiry within 24 working hours.

2. Customizeddesign is available and OEM are welcomed.

3. We can deliverthe probe pins to our clients all over the world with speed and precision.

4. We can providethe lowest price with high quality product to our client      .



Main Products

Spring loaded pin (single) for PCB, ICT, FCT testing etc;

Pogo pin (connector) to establish connection between two printed circuit boards for charging pogo pinlocating pogo pinBattery pogo pinSemiconductor probe &  Interconnect applications;

Double ended probe for BGA and Semiconductor testing;

Universal pin without spring, coating pinLM pin with QZ and VZ series;

High current probeSwitch probe, Capacitance needle;

Terminal & receptacle /socket;

Other related electronic components, 30# OK wire, Jig locks, POM, Iron hinge etc

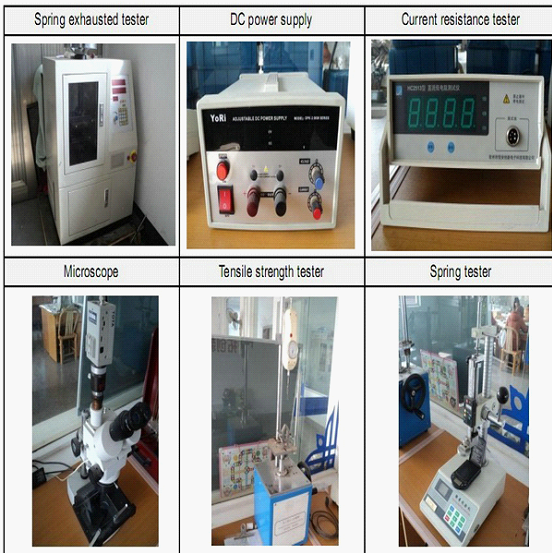

Quality Control

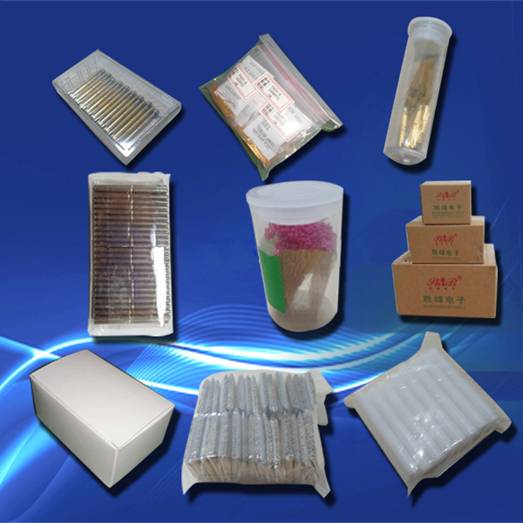

Packing Picture



Packing picture2
