Cable harness test switching probes 415 306 230 A2302

Cable harness test switching probes 415 306 230 A2302

  • Cable harness test switching probes 415 306 230 A2302
  • Size: diameter 2.65mm by length 42.5mm,
  • Plunger Material: BeCu,Au plating or Nickel plating,
  • Barrel Material: Brass,Au plating or Nickel plating,
  • Spring Material: SWP,
  • Packaging: plastic box into cartons;
  • Product Details

Cable harness test switching probes 415 306 230 A2302

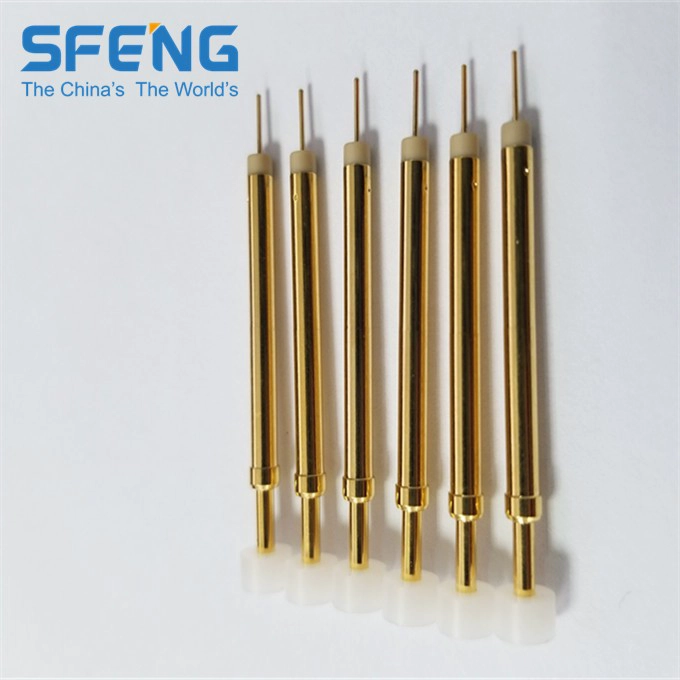

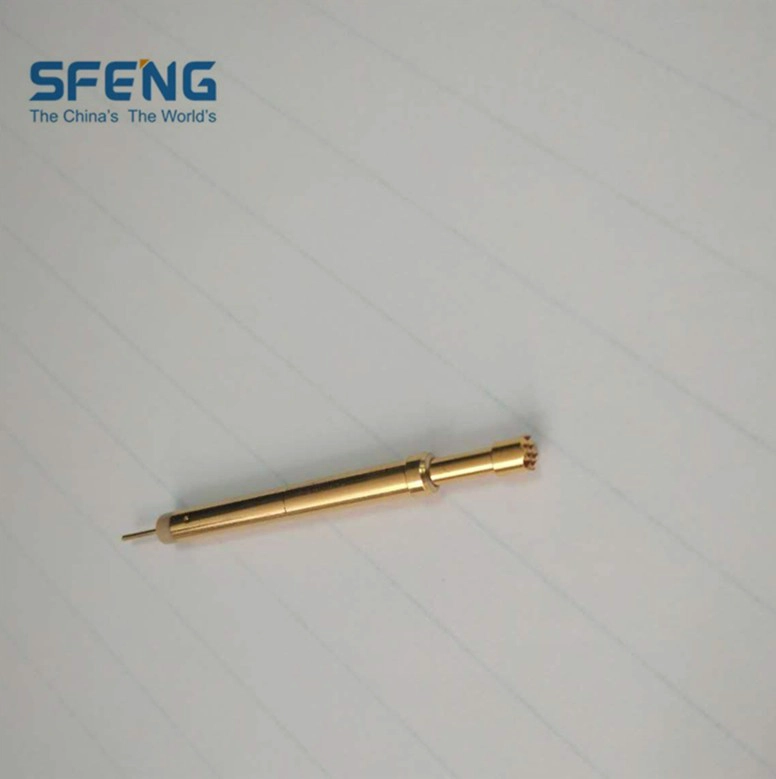

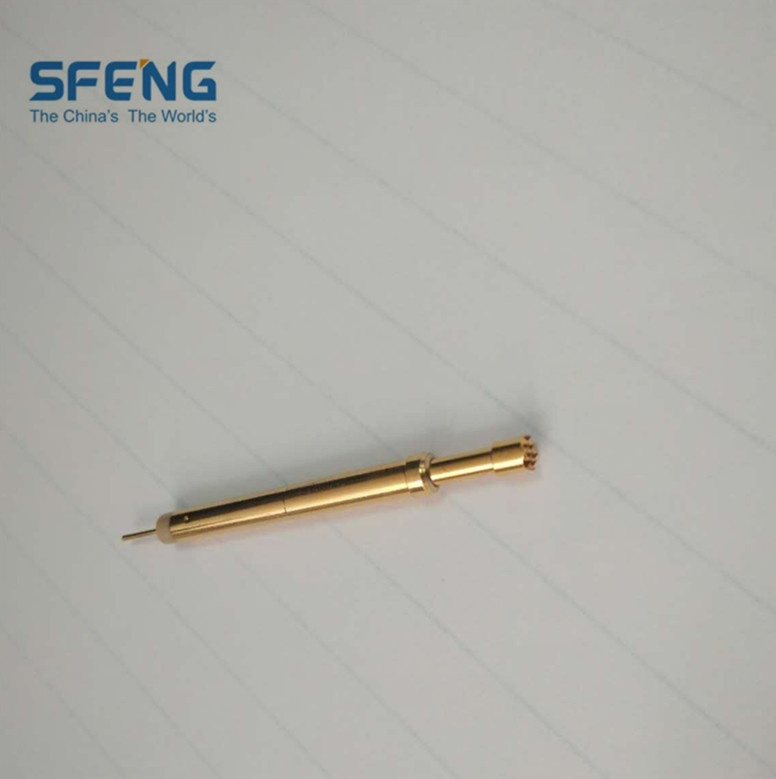

Product Picture

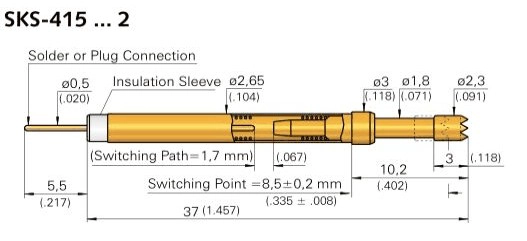

Switch probe model Cable harness test switching probes 415 306 230 A2302
 Plunger material BeCu, Gold plated
 Barrel material  Brass, Nickel plated
 Insulation sleeve  peek
 Solder connection  Be Cu, Gold plated
 Switch probe receptacle  brass,Au plated
 Spring  swp
 Switch path  1.7mm



Our Service

1. We can reply yourinquiry within 24 working hours.

2. Customizeddesign is available and OEM are welcomed.

3. We can deliverthe probe pins to our clients all over the world with speed and precision.

4. We can providethe lowest price with high quality product to our client      .



Main Products

Spring loaded pin (single) for PCB, ICT, FCT testing etc;

Pogo pin (connector) to establish connection between two printed circuit boards for charging, locating, Battery, Semiconductor &  Interconnect applications;

Double ended probe for BGA and Semiconductor testing;

Universal pin without spring, coating pin, LM pin with QZ and VZ series;

High current probe, Switch probe, Capacitance needle;

Terminal & receptacle /socket;

Other related electronic components, 30# OK wire, Jig locks, POM, Iron hinge etc

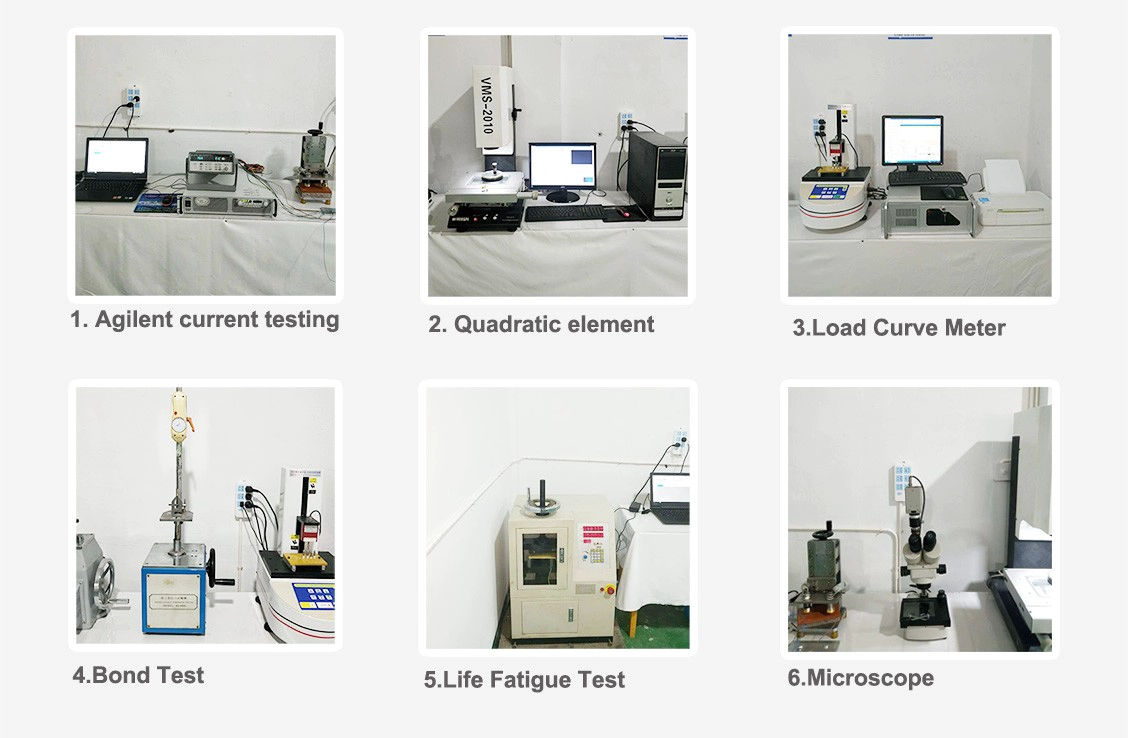

Quality Control

Packing Picture





Suzhou Shengyifurui Electronic Technology Co., Ltd

Tel:008613913541534

Contact Person:Ellie

PDF Show:PDF

Send Us An Inquiry
We will contact you as soon as possible!
Phone
Phone
WeChat
Skype
Whatsapp
captcha
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

RELATED PRODUCTS

Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .

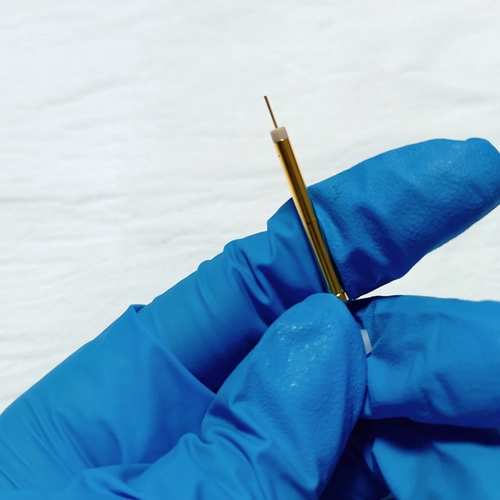

SFENG Switching Probes Cable Harness Testing

Full stroke: 5.2mm
Switching Path: 1.7mm
Spring force: 70gf @ load 1.7mm
Lifetime: 300,000 times
Application:wiring harness, testing jigs, fixtures to various automotive industries.

SFENG ICT Test switch probe

Full stroke: 5.0mm
Switching Path: 1.5mm
Spring force: 450gf @ load 5.0mm
Lifetime: 300,000 times
Application:wiring harness, testing jigs, fixtures to various automotive industries.

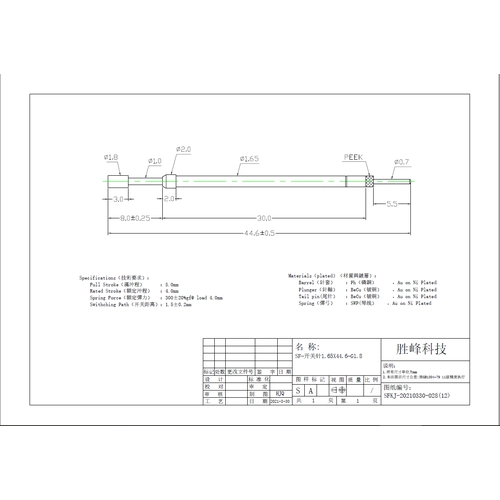

Normally open 100 mil switching probe SF-KP1.65*44.6-G1.8 (NO)

Item: Switching probe SF-KP1.65*44.6-G1.8 (NO)

Materials: Beryllium Copper
Spring: Music wire
Finish: gold plated

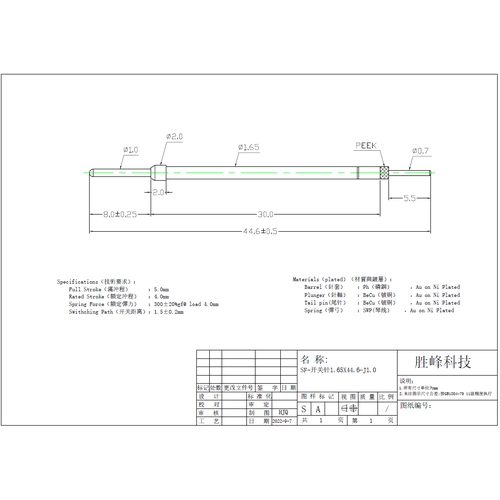

Normally open 100 mil switching probe SF-KP1.65*44.6-J1.0 (round tip)

Item: Switching probe SF-KP1.65*44.6-J (round tip)
Materials: Beryllium Copper
Spring: Music wire
Finish: gold plated

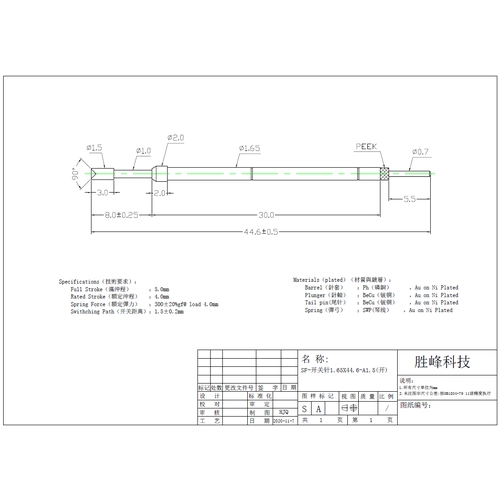

Normally open 100 mil switching probe SF-KP1.65*44.6-A1.5
