Production Details

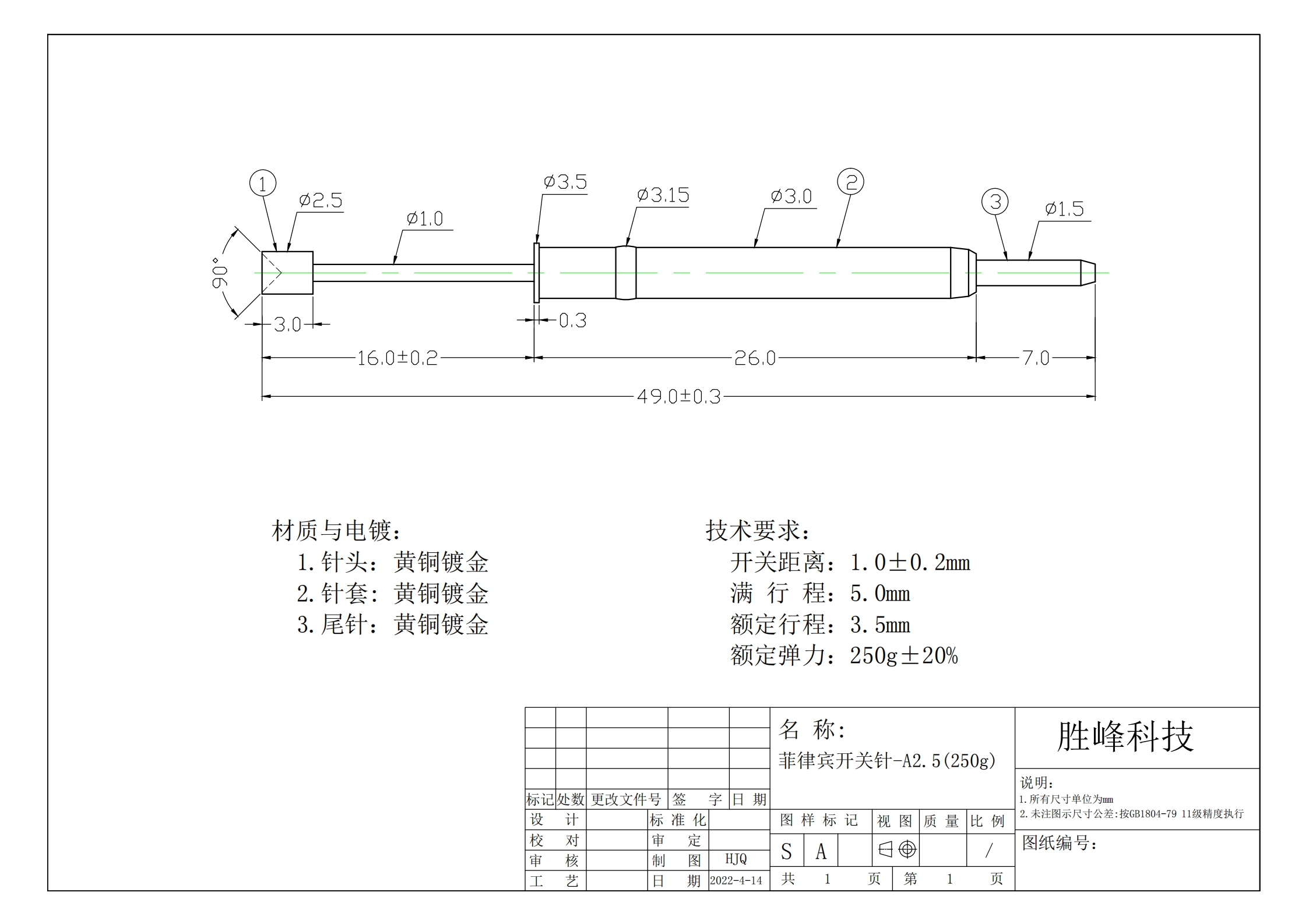

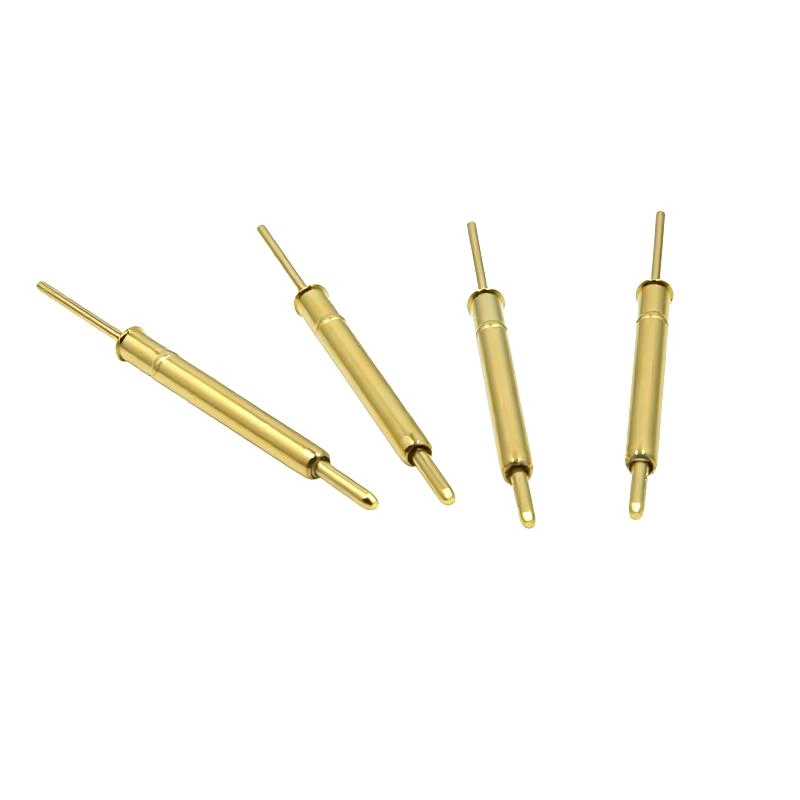

| Product Name | Competitive Price Brass Material Switch Contact Pin |
|
Item No. |
SF3.15x49-A |
| Material | Brass and Stainless Steel |
| Plating | Gold Plated |
| Switch Distance | 1.0±0.2mm |
| Full Stroke | 5.0mm |
| Current Stroke | 3.5mm |
| Current Force | 250g±20% |
Production Flow
Detection Equipment
Custom Visits
Exhibition
FAQ
SFENG can send the goods out within 3 days after receiving the order. For customized products, we will adjust the lead time accordingly.
Yes, one of our main features is customization. Just providing the drawing, we will make the product specially for you.
SFENG can mainly provide 5 kinds of test probes, including in-circuit test probe, semiconductor test probes, battery contact pins, guide pins and related accessories.
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .

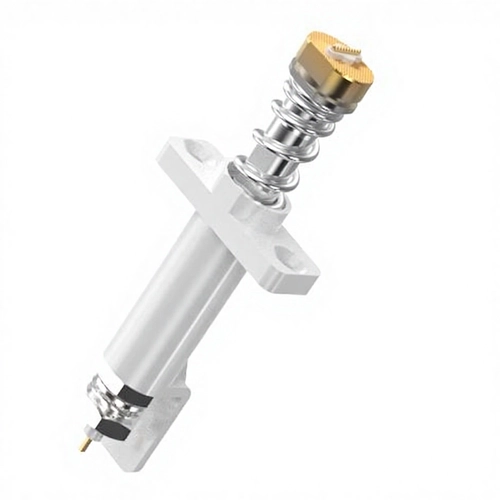

Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+120℃
Current Rating:80A
Contact Resistance(Initial):≤0.5mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:7000g±15%(5.0mm)

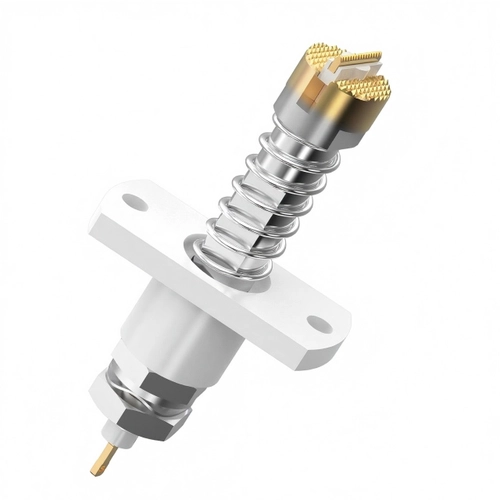

Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:30A
Contact Resistance(Initial):≤1mΩ
Maximum Travel:≥9.0mm
Recommended Working Travel:2500g±15%(5.0mm)

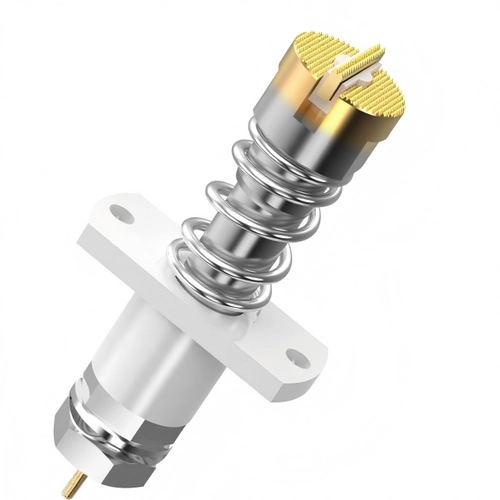

Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:100A
Contact Resistance(Initial):≤0.5mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:5500g±20%(5.0mm)

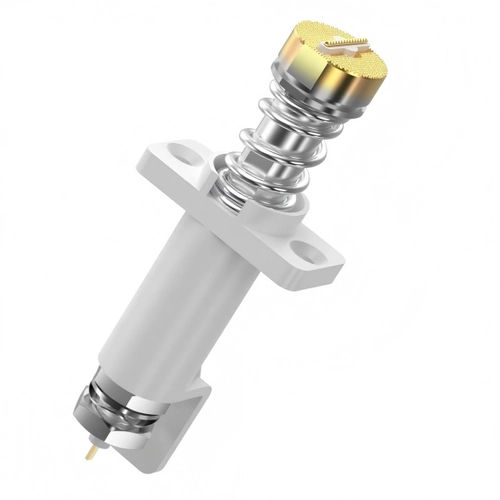

Material:Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+120℃
Current Rating:160A
Contact Resistance(Initial):≤0.3mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:8000g±20%(5.0mm)
1.Material: Copper Alloy
2.Surface Plating: Partial gold-plated over nickel
3.Mechanical Durability:≥30000cycles
4.Operating Temperature:-40℃/+120℃
5.Current Rating:200A
6.Contact Resistance(Initial):≤0.2mΩ
7.Maximum Travel:≥10.0mm
8.Recommended Working Travel:9000g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+200℃
Current Rating:200A
Contact Resistance(Initial):≤0.2mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:10000g±20%(5.0mm)
