Model Number:switch probe SF-2.1*45.0-A
Plunger material:Ph with Gold plated
Barrel material:Brass with Ni plated
Tail pin: Ph with gold plated
Full stroke: 3.5mm
Spring force: 980±20%
Switching Path: 1.5mm
Switch probe condition:normally open

Brand:SFENG
Item number:SF4685
Size: dia2.36*L49.0mm
Materials:Becu,SUS,Brass
Finish:Au on Ni plated
Packing:Plastic bag and loaded into carton box

Brand:SFENG
Item number:SF4706
Size: dia2.1*L45.0mm
Materials:Becu,Ph,Brass
Finish:Au or Ni plated
Packing:Plastic bag and loaded into carton box

Brand:SFENG
Item number:SF5797
Size: dia2.0*L44.6mm
Materials:Becu,Ph,SWP
Finish:Au on Ni plated
Packing:Plastic bag and loaded into carton box

Brand:SFENG
Item number:SF6028
Size: dia3.5*L25.15mm
Materials:Becu,Brass,Steeel
Finish:Gold plated
Packing:Plastic bag and loaded into carton box

Brand:SFENG
Item number:SF-3.0x50.7-G
Size: dia3.0*L50.7mm
Plunger:Brass, Au on Ni plated
Barrel:Brass, Au on Ni plated
Spring:SUS304
Current Rating: 3A
Full Stroke: 6.2mm
Packing:Plastic bag and loaded into carton box

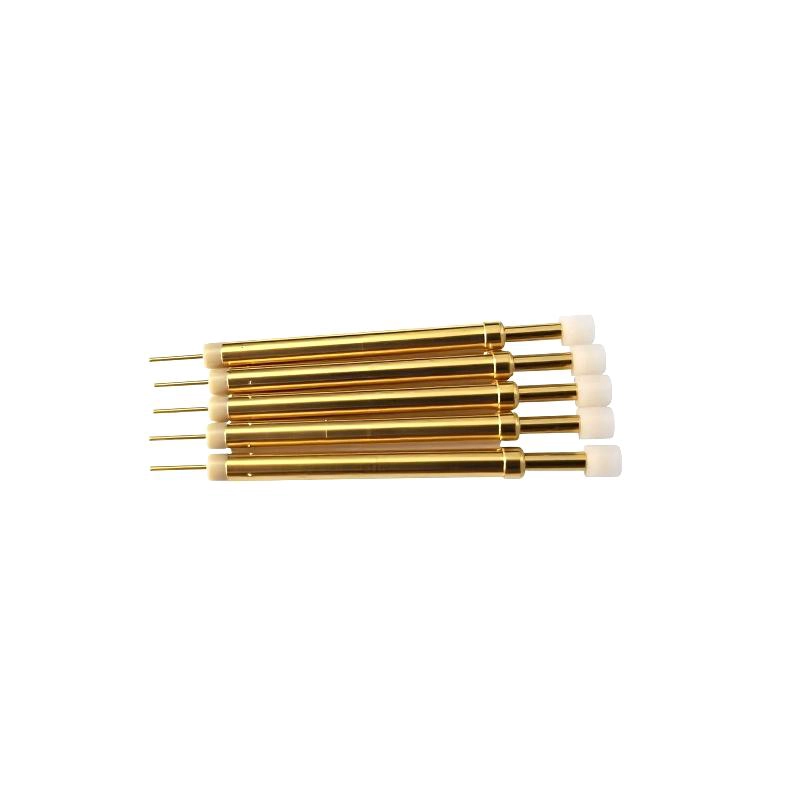

Item: Switching Probe SF265-G300
Materials:
1) Plunger: Becu, Au on Ni plated
2) Barrel: Brass, Au on Ni plated
3) Insulation sleeve: PEEK
4) Solder Connection: Becu, Au on Ni plated
5) Tip: POM
6) Spring: SWP, Au on Ni plated

Specifications
Current Rating: 3A
Contact Resistance: <50mΩ
Full Stroke: 7.0mm
Switching Path: 2.4mm
Spring Force: 2.5N
Packaging: plastic box, into cartons

SwitchING probe
Brand :SFENG
Model Number:switch probe SF-265-F300
Plunger material:Be Cu, Au on Ni plated
Barrel material:Brass, Au on Ni plated
Insulation sleeve:peek
Solder connection:Be Cu, Gold plated
Switch probe receptacle:brass,Au plated
Spring:SWP
Current rating:3A
Switch probe condition:normally open

Brand:SFENG
Item number:SF-1.67*44
Size: dia1.67*L44mm
Plunger:Becu, Gold plated
Barrel:Brass, Gold plated
Insulation sleeve:PEEK
Spring:SUS304
Packing:Plastic bag and loaded into carton box
