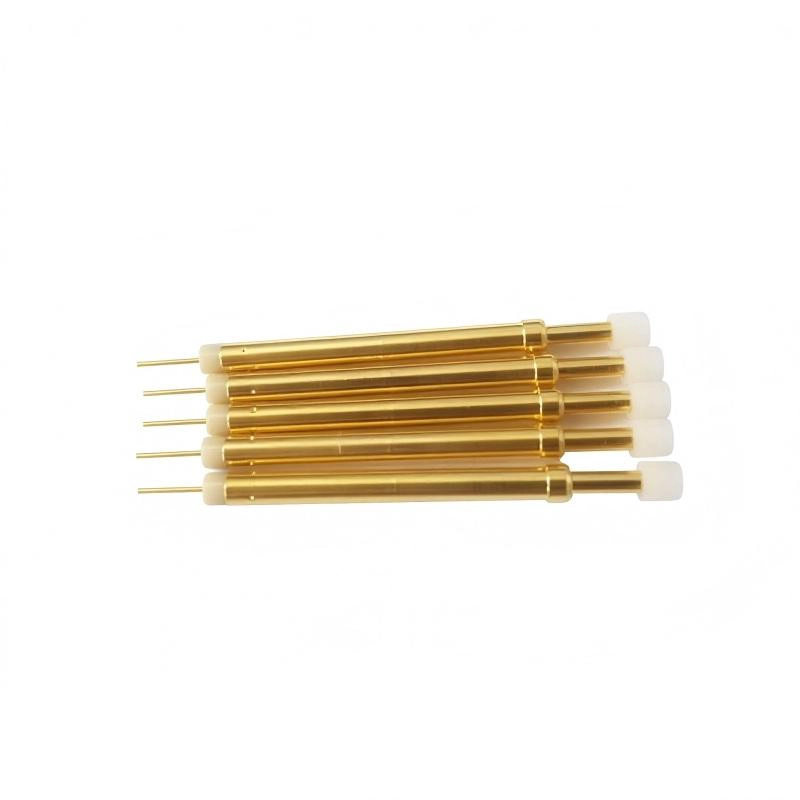

Professional Manufacturer Customized Becu Switching Test Probes

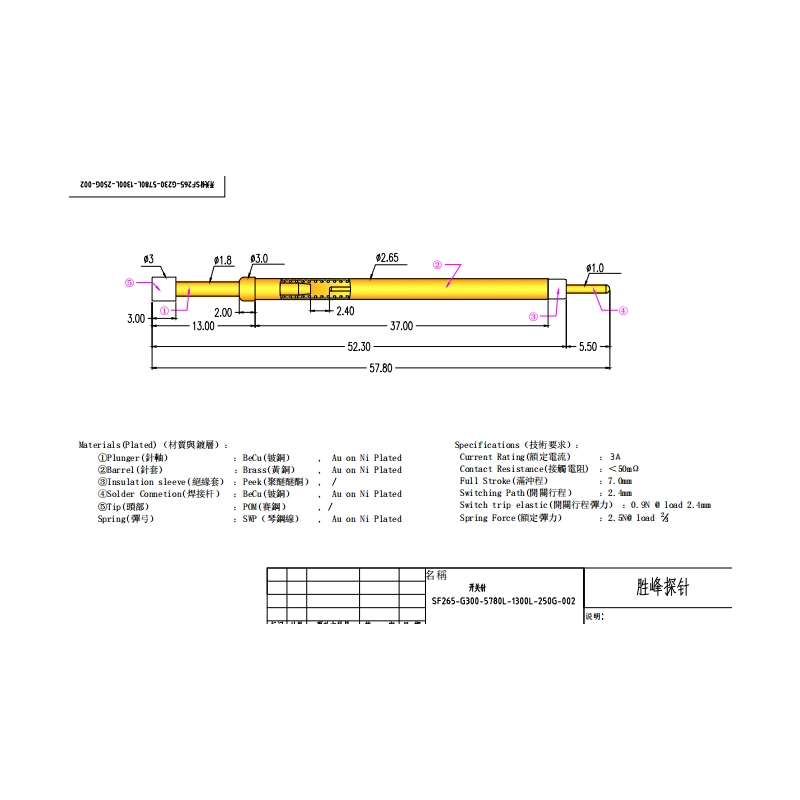

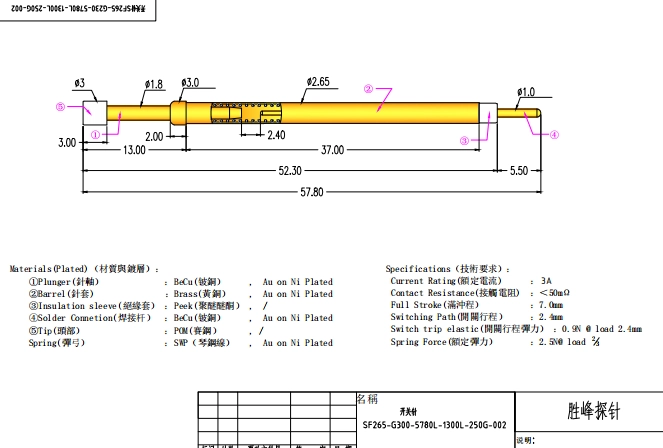

Technical Parameters
| Model Number | SF-425 002 300 A2502 E |
|
Material |
Plunger:Becu Barrel:Brass Spring:Music Wire Insulation Sleeve:Peek Solder Connection:Becu Tip:POM |
| Plating |
Au on Ni plated |
| Current Rating | 3A |
| Contact Resistance | ≤50mΩ |
| Full Stroke | 7.0mm |
| Switching Path | 2.0mm |
| Switch Trip Elastic |
0.9N Load 2.4mm |
| Spring Force | 2.5N Load 2/3mm |
---Spring loaded pin(single) for PCB,ICT,FCT testing,etc;
---Pogo pin(connector) to establish a(usuallytemporary)connection between two printed circuit boards for charing, locating, Battery, Semiconductor & interconnect Applications;
---Double ended probe or BGA&Semiconductor testing;
---Universal pin without spring,coating pin,LM pin withQZ&VZ series;
--High current probe,Switch probe,Capacitance needle...
---Terminal&receptacle/socket;
---Other related electronic compents,30#OK wire,Jig locks,POM,Ironhinge,etc.
Company Profile
Production Flow
Quality Control
Custom Visits
Global Sales
Packaging & Shipping
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 5u" Barrel: Au 5u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/2.0A
Spring Force:100g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 3u" Barrel: Au 5u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:20g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 3u" Barrel: Au 3u" Spring:Au 1u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/3.0A
Spring Force:280g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 4u" Barrel: Au 10u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/2.0A
Spring Force:75g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 3u" Barrel: Au 3u" Spring:1u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:100g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 15u" Barrel: Au 5u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/3.0A
Spring Force:100g±20%
