SFENG Brand 2A Gold Plated Probe Pin

Home > Category > Pogo Pin  > SFENG Brand 2A Gold Plated Probe Pin

Browse Categories

Subscribe

Get email updates on new products

China SFENG Brand 2A Gold Plated Probe Pin manufacturer China SFENG Brand 2A Gold Plated Probe Pin manufacturer

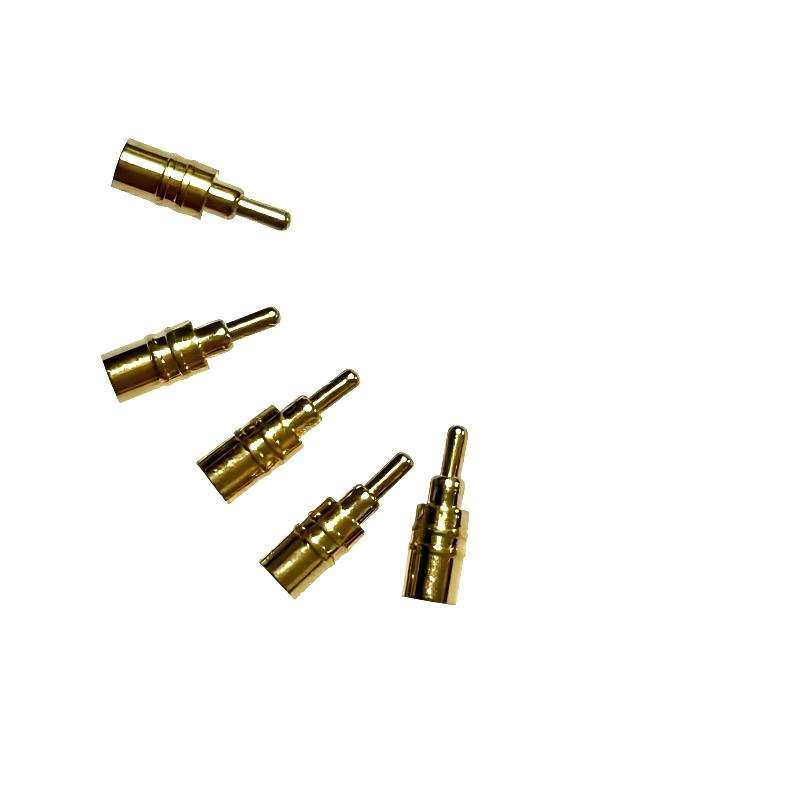

SFENG Brand 2A Gold Plated Probe Pin

  • Brand:SFENG
  • Key Words:Test Probe
  • Model:SF-PG2.1-6.66-2.0-T3.51-1
  • Length:6.66mm
  • Material: Brass
  • Finishes: Ni-plated or Gold-plated
  • Lead Time:7-10days
  • MOQ:100pcs
  • Product Details

 SFENG Brand 2A Gold Plated Probe Pin

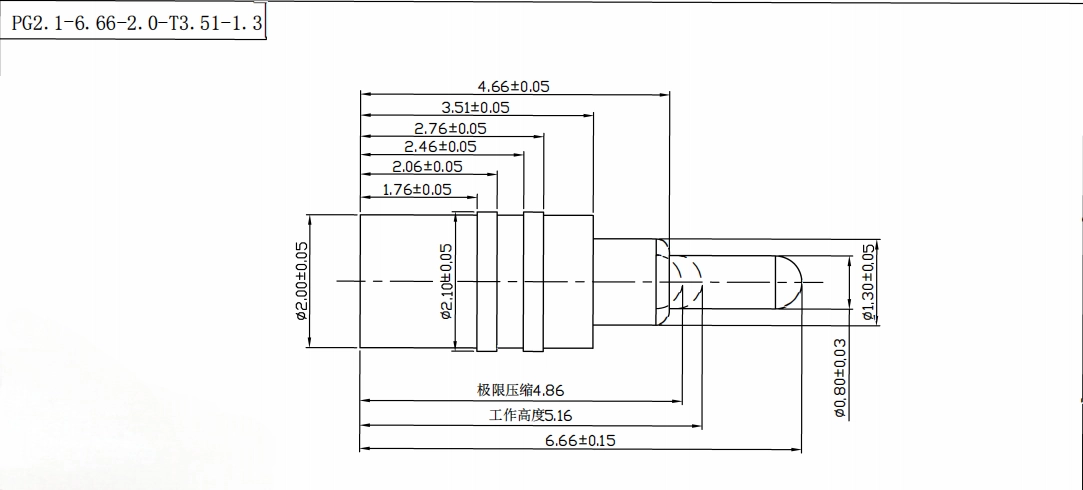

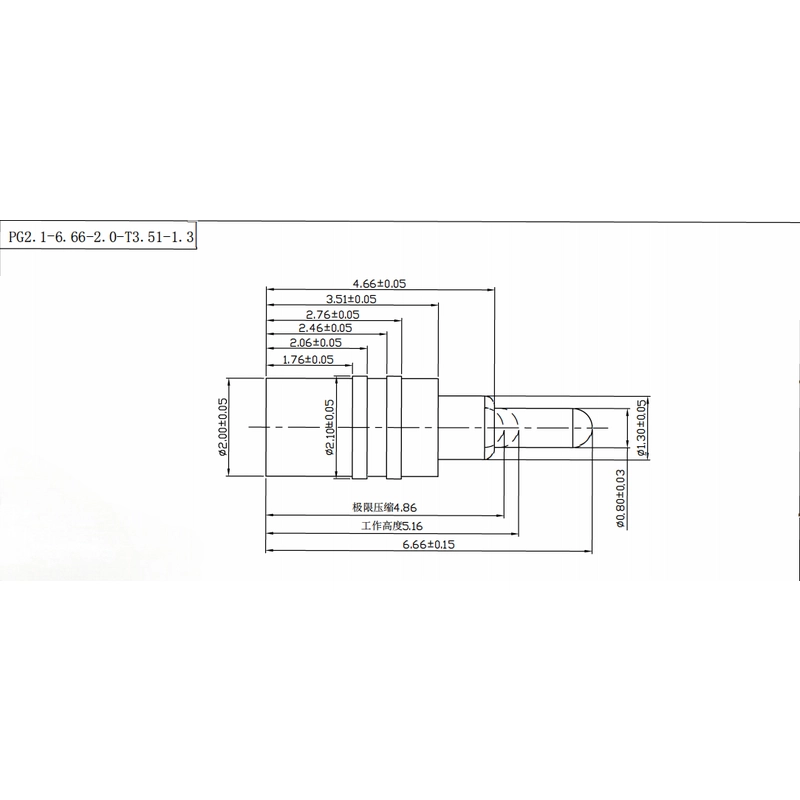

Technical Parameters

Model Number SF-PG2.1-6.66-2.0-T3.51-1
Material Brass
Plating Plunger:Au 5u"
Barrel: Au 5u"
Over 50~120u” Ni
Mechanical Durability ≥10000cycles
Rated current & voltage

DC 12V; 2.0A Max
Spring Force

100g±20%

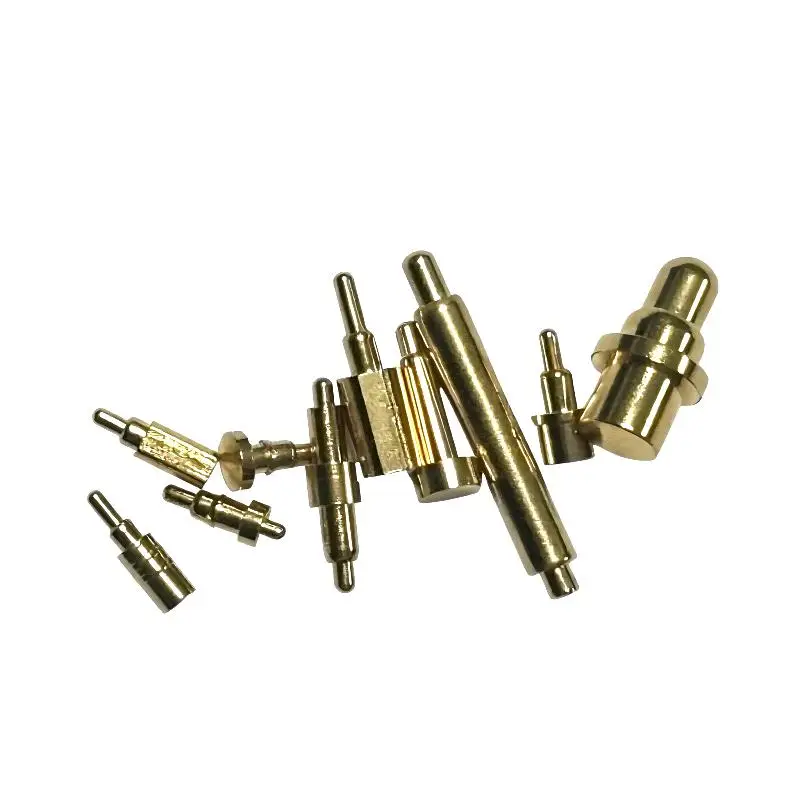

Main Products

---Spring loaded pin(single) for PCB,ICT,FCT testing,etc;

---Pogo pin(connector) to establish a(usuallytemporary)connection between two printed circuit boards for charing, locating, Battery, Semiconductor & interconnect Applications;

---Double ended probe or BGA&Semiconductor testing;

---Universal pin without spring,coating pin,LM pin withQZ&VZ series;

---High current probe,Switch probe,Capacitance needle...

---Terminal&receptacle/socket;

---Other related electronic compents,30#OK wire,Jig locks,POM,Ironhinge,etc.

.jpg

Quality Control

.png

Application

1

 Packing Picture

.png

Shipment

Our Service

1.Reply your inquiry within 24 working hours.

2.Customized design is available,OEM are welcomed.

3.Delivery the probe pins to our clients all over the world with speed and precision.

4.Provide the competitive price with high quality to our client.

FAQs

For the orders, we prefer 100% payment before the delivery. You can choose Wire transfer, Pay Pal. USD dollar, Japanese Yuan and RMB are accepted.
Yes, SFENG are pleased to provide free samples for testing before orders. It’s the biggest things that you trust us and our product quality.
SFENG can send the goods out within 3 days after receiving the order. For customized products, we will adjust the lead time accordingly.
SFENG have skilled QC team and professional testing equipment. From the raw material to the finished products, we will make the testing. Only appearance, dimension, tips, spring force, plating and life span are checked ok by professional equipment. the goods can be sent to customers.
Yes, one of our main features is customization. Just providing the drawing, we will make the product specially for you.
SFENG can mainly provide 5 kinds of test probes, including in-circuit test probe, semiconductor test probes, battery contact pins, guide pins and related accessories.
Hot Tags : China spring pogo pin supplier China test probe supplier China spring probe supplier spring loaded connector
Suzhou Shengyifurui Electronic Technology Co., Ltd

Tel:008615295610421

Contact Person:Jude

Send Us An Inquiry
We will contact you as soon as possible!
Subject: SFENG Brand 2A Gold Plated Probe Pin
Phone
Phone
WeChat
Teams
Whatsapp
captcha
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

RELATED PRODUCTS

Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .

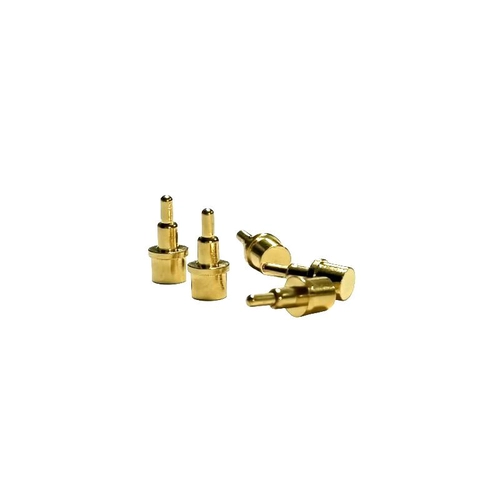

China Zhejiang Factory Brass 6.5mm Test Probe manufacturer
