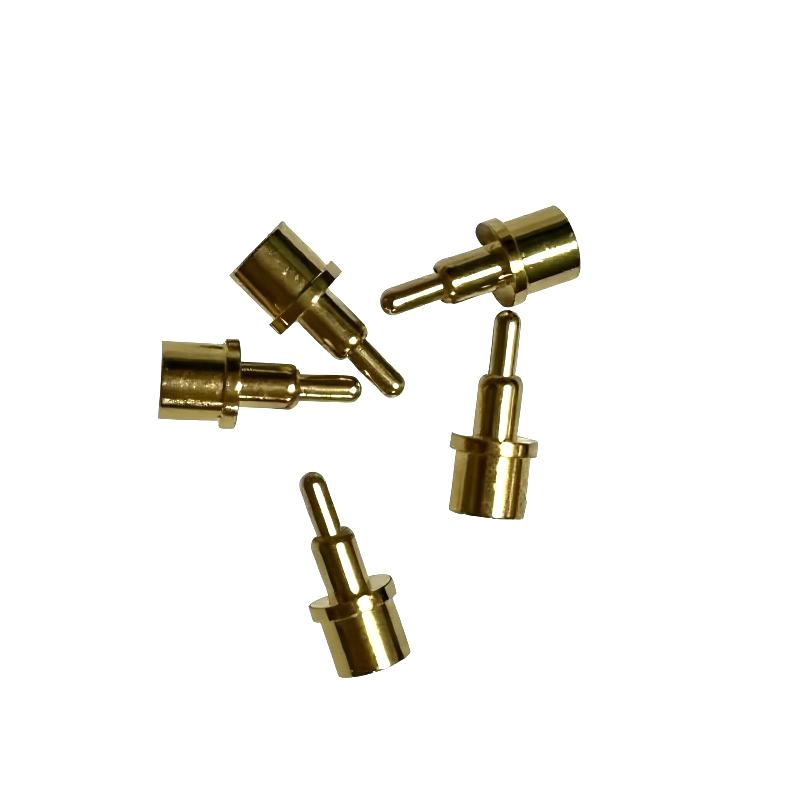

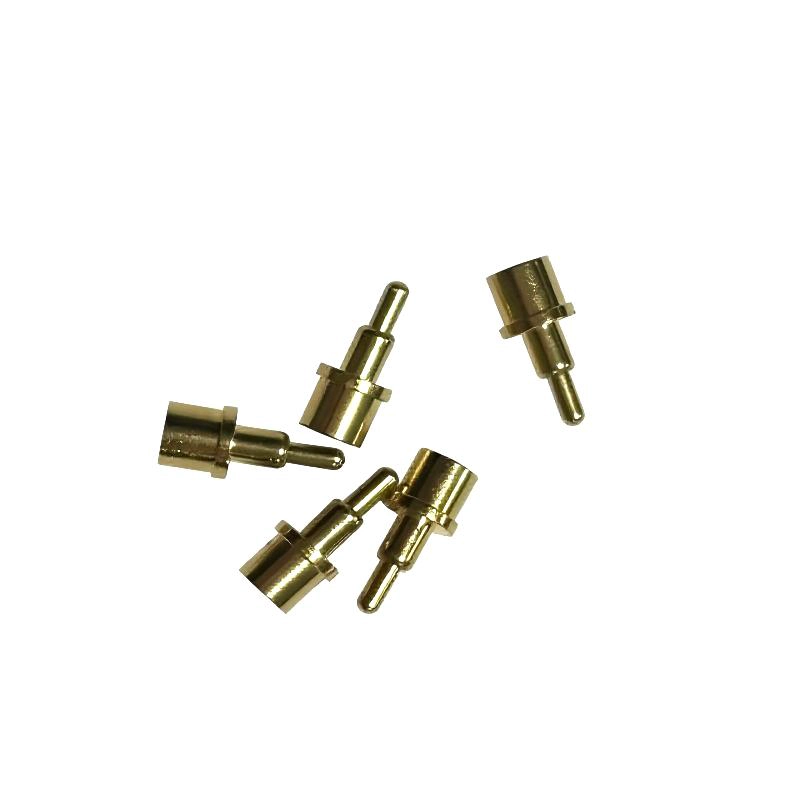

Zhejiang Factory Brass 6.5mm Test Probe
Product Details

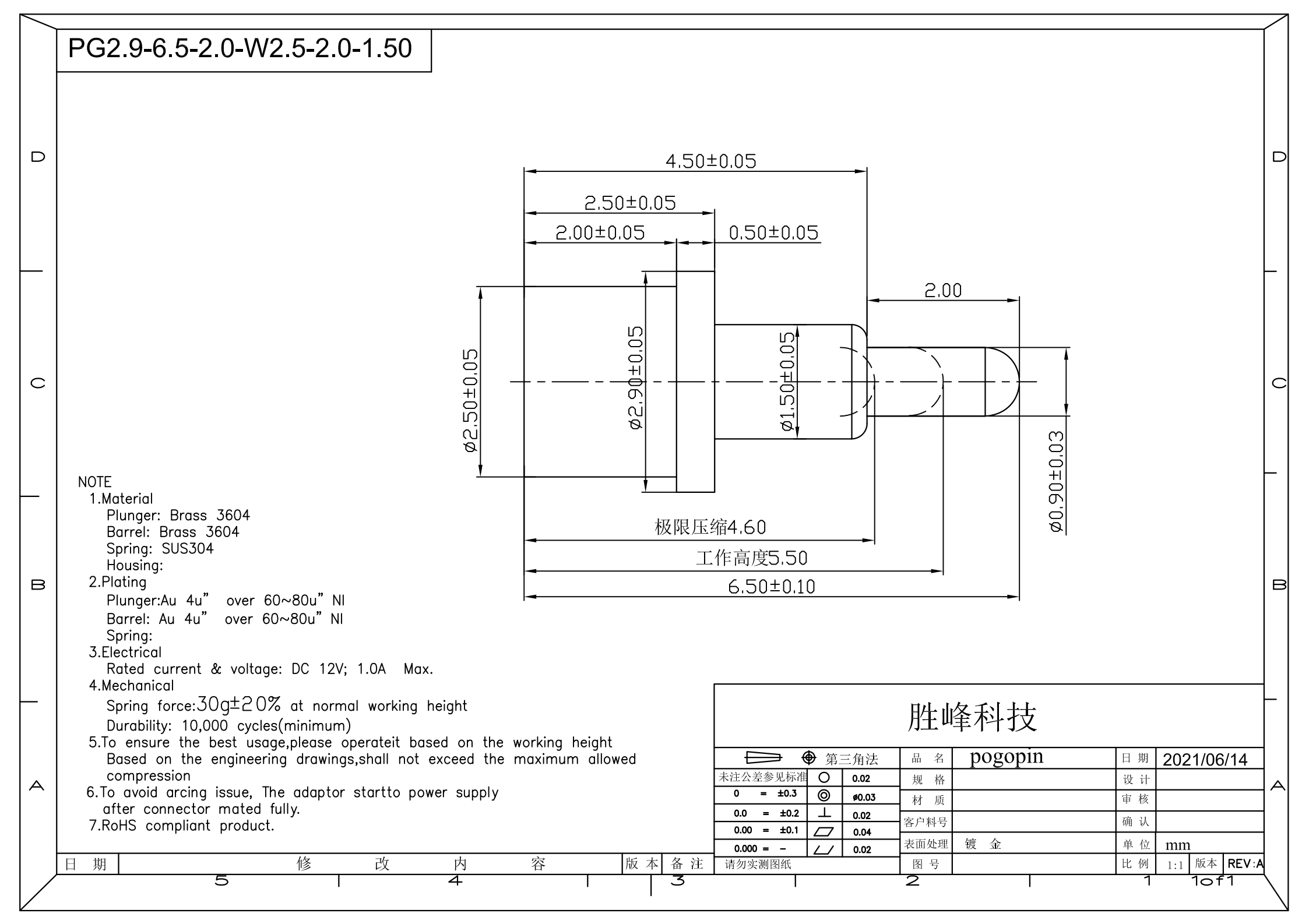

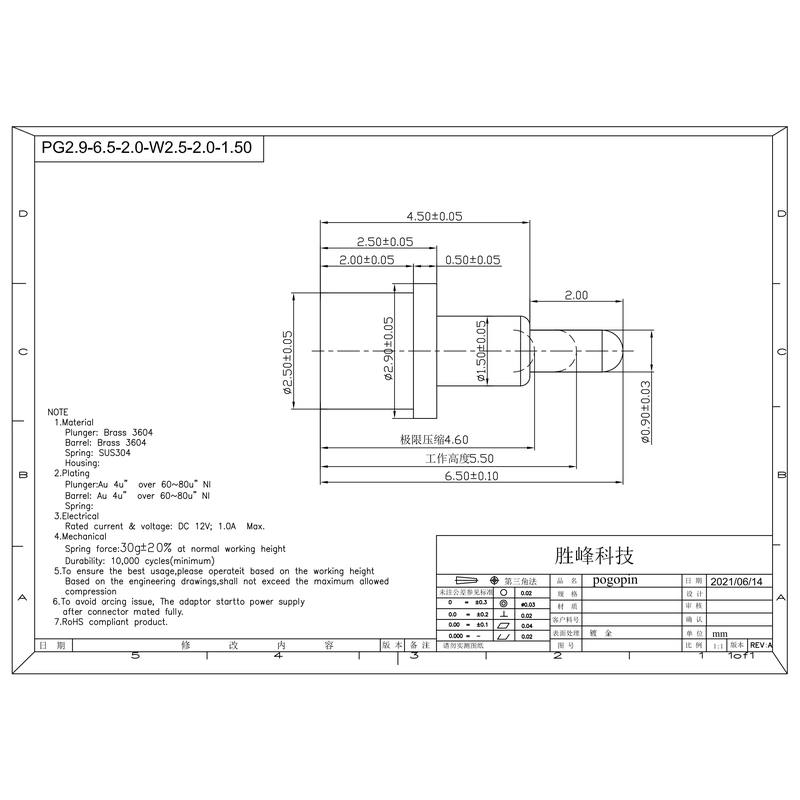

| Model Number | Model:SF-PG2.9-6.5-2.0-W2.5-2.0-1.5-2 |
| Material | Brass |
| Plating | Plunger:Au 4u" Barrel: Au 4u" Over 60-80 u” Ni |
| Mechanical Durability | ≥10000cycles |
| Rated current & voltage | 12V;1.0A |
| Spring Force | 30g±20% |
Application
Company Introduction
Suzhou Shengyifurui Electronic Technology Co.,Ltd is the leading test probe manufacturer in China. In 1984 we set up the first factory in Cixi City, Zhejiang Province. With high quality and sweet service, our products are widely used in more than 50 countries in the world.
We are dedicate to being the most reliable test probe supplier in China Market.
We are committed to provide the most professional products and services to the customers in the world.
Products include in-circuit spring test probe, semiconductor spring test probe, battery charging pogo pin and the related accessories.
Product Flow
Quality Check
Certification
Our Partners
Packaging and Shipment
FAQ
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:5A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥4.5mm
Recommended Working Travel:580g±20%(2.5mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:20A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥9.0mm
Recommended Working Travel:2000g±20%(4.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:10A
Contact Resistance(Initial):≤10mΩ
Maximum Travel:≥7.5mm
Recommended Working Travel:450g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:6A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:1000g±20%(5.0mm)
