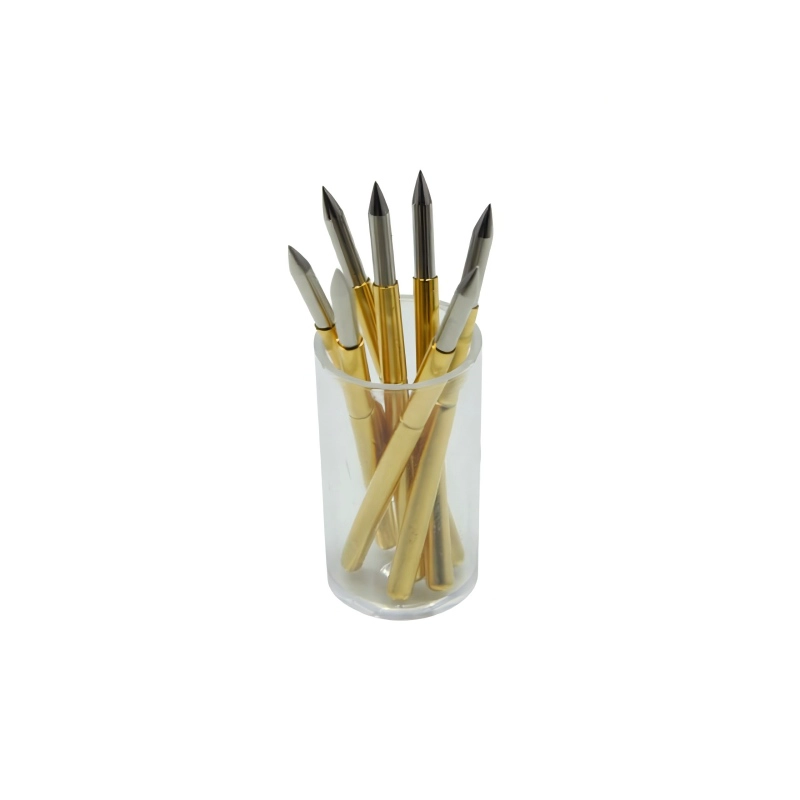

Spring Loaded PCB Test Probe Gold Plated Multiple Tips Contact Probe Pin
Product Description
Main Product
Product Flow
Company Information
Suzhou Shengyifurui Electronic Technology Co.,Ltd is the leading test probe manufacturer in China. In 1984 we set up the first factory in Cixi City, Zhejiang Province.Factories have already passed the ISO90001 quality administration system.
In 2012 the brand SFENG was registered and also got many patents. This innovation spirit makes Suzhou Shengyifurui Electronics Co., Ltd the biggest manufacturer in the industry. In the past 30 years, the products are widely used in Southeast Asia, Europe and North America. We also have established the stable business relationship with many world’s famous enterprises, such as LG, SONY etc. With the dream of becoming the most competitive test link enterprises in the world, we keep moving on.
Why Choose Us?
Packaging & Shipping
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Recommended minimum center:1.27mm
Mounting hole size:V:0.90mm/W:0.95mm
Full travel:2.5
Spring force:100g
Materials and finishes:Plunger:SK4, Ni or Au plated; Barrel:Brass; Spring:Stainless steel
Current ration:1.5A
Contact resistance:50mΩ
Recommended minimum center:1.27mm
Mounting hole size:V:0.90mm/W:0.95mm
Full travel:4.20
Spring force:120g
Materials and finishes:Plunger:Be Cu,Ni plated; SK4 Au plated Barrel:Brass Spring:Stainless steel
Current ration:3A
Contact resistance:50mΩ
Recommended minimum center:1.90mm
Mounting hole size: Acrylic:1.35mm; Bakelite, fiberglass board:1.40mm
Full travel:3.4
Spring force:120g
Materials and finishes:Plunger: Becu, Ni plated; SK4 Ni plated; Barrel:Brass；Spring:Stainless steel
Current ration:3A
Contact resistance:50mΩ
Recommended minimum center:2.54mm
Mounting hole size: Acrylic:1.70mm; Bakelite, fiberglass board:1.75mm
Full travel:4.0
Spring force:200g
Materials and finishes:Plunger:Becu, Ni plated; SK4 Ni plated
Barrel:Brass
Spring:Stainless steel
Current ration:3A
Contact resistance:50mΩ
Model: SF-P080
Material: Brass
Current Rating: 0.3A
Contact Resistance (Initial)：50mΩ
Maximum Travel:1.5
Length:11.5mm
Payment:Paypal or 100% TT before shipment
SF-P070 Series Fine Pitch Spring Test Probe Pin
Recommended minimum center:0.60mm
Mounting hole size: 0.40mm
Full travel:1.5
Spring force:20g
Materials and finishes:Plunger:SK4 Ni plated
Barrel:Brass
Spring:Music wire, gold plated
Current ration:0.3A
Contact resistance:50mΩ
Model number:SF-P060-Test Probe Pin
Recommended minimum center:0.65mm
Mounting hole size: 0.45mm
Full travel:1.5
Spring force:40g
Materials and finishes:Plunger:Becu, Ni plated; Barrel:Brass; Spring:Music wire
Current ration:0.5A
Contact resistance:50mΩ
Brand:SFENG
Item number:SF-P050-B
Origin place:Zhejiang China
Size: dia0.35*length12.5mm
Plunger:SK4
Barrel:Phosphor Bronze
Spring:Music wire
Finish:Ni or Gold plated
Packing:Plastic bag and loaded into carton box
MOQ:100PCS
Customization:OEM,ODM
Recommended minimum center:0.80mm
Mounting hole size: 0.55mm
Full travel:2.0
Spring force:40g
Materials and finishes:Plunger:Becu, Ni plated; SK4 Ni plated
Barrel:Brass
Spring:Music wire
Current ration:0.5A
Contact resistance:50mΩ
MOQ:100PCS
Model Number:SF-P030-Spring Test Pogo Pin
Recommended minimum center:0.90mm
Mounting hole size: Acrylic:0.65mm
Full travel:2.0
Spring force:60g
Materials and finishes:Plunger:Becu, Ni plated; SK4 Ni plated
Barrel:Brass
Spring:Music wire
Current ration:1A
Contact resistance:50mΩ
