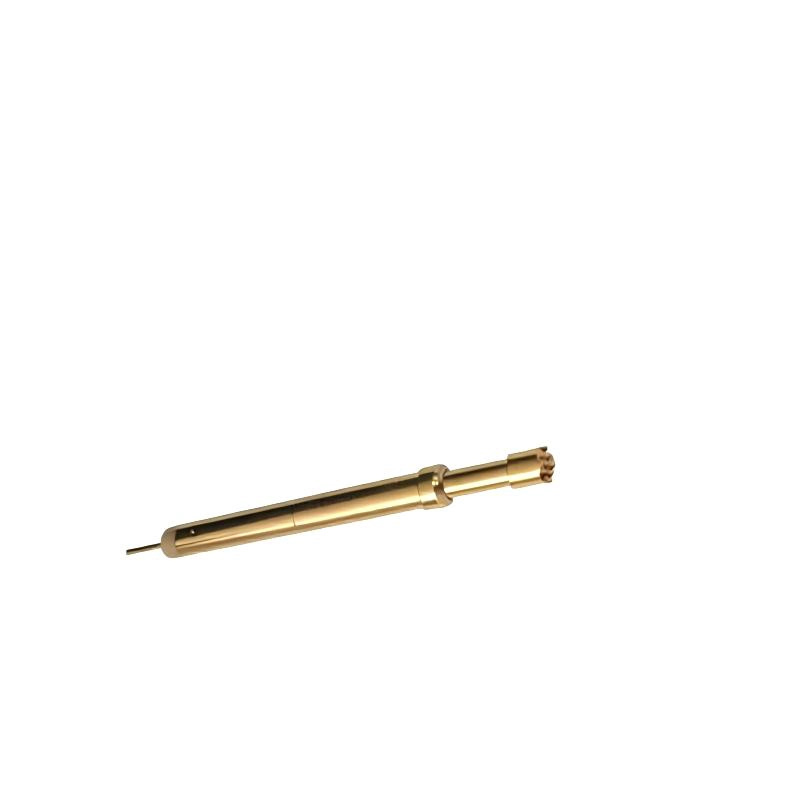

Zhejiang Factory 3A Gold Plated Spring Test Probe
Technical Parameters
| Model Number | SF265-H230-425L-102L-400G |
| Material |
Plunger:Becu Barrel:Brass Spring:SUS304 Insulation Sleeve:Peek Solder Connection:Becu Receptacle:Brass |
| Surface Plating | Ni plated |
| Current Rating | 3A |
| Contact Resistance |
<50mΩ |
| Full Stroke | 5.2mm |
| Switching Path | 1.7mm |
| Spring Force |
100~150fg@ load 5.0mm |
| Spring Force | 200~250gf@ load 3.3mm |
| The Total Set Elastic | 350~400gf@ load 5.0m |
Main Products
---Spring loaded pin(single) for PCB,ICT,FCT testing,etc;
---Pogo pin(connector) to establish a(usuallytemporary)connection between two printed circuit boards for charing, locating, Battery, Semiconductor & interconnect Applications;
---Double ended probe or BGA&Semiconductor testing;
---Universal pin without spring,coating pin,LM pin withQZ&VZ series;
---High current probe,Switch probe,Capacitance needle...
---Terminal&receptacle/socket;
---Other related electronic compents,30#OK wire,Jig locks,POM,Ironhinge,etc.
Quality Control
Our Service
1.Reply your inquiry within 24 working hours.
2.Customized design is available,OEM are welcomed.
3.Delivery the probe pins to our clients all over the world with speed and precision.
4.Provide the competitive price with high quality to our client.
Packing Picture
Shipment
FAQ
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 5u" Barrel: Au 5u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/2.0A
Spring Force:100g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 3u" Barrel: Au 5u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/1.0A
Spring Force:20g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 3u" Barrel: Au 3u" Spring:Au 1u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/3.0A
Spring Force:280g±20%
Material:Barrel/Plunger:Brass Spring:304 Stainless Steel
Plating:Plunger:Au 4u" Barrel: Au 10u" Over 50~120u” Ni
Mechanical Durability:≥10000cycles
Rated current & voltage:12V/2.0A
Spring Force:75g±20%
