SFENG Factory Price Becu Switch Probe Pin

SFENG Factory Price Becu Switch Probe

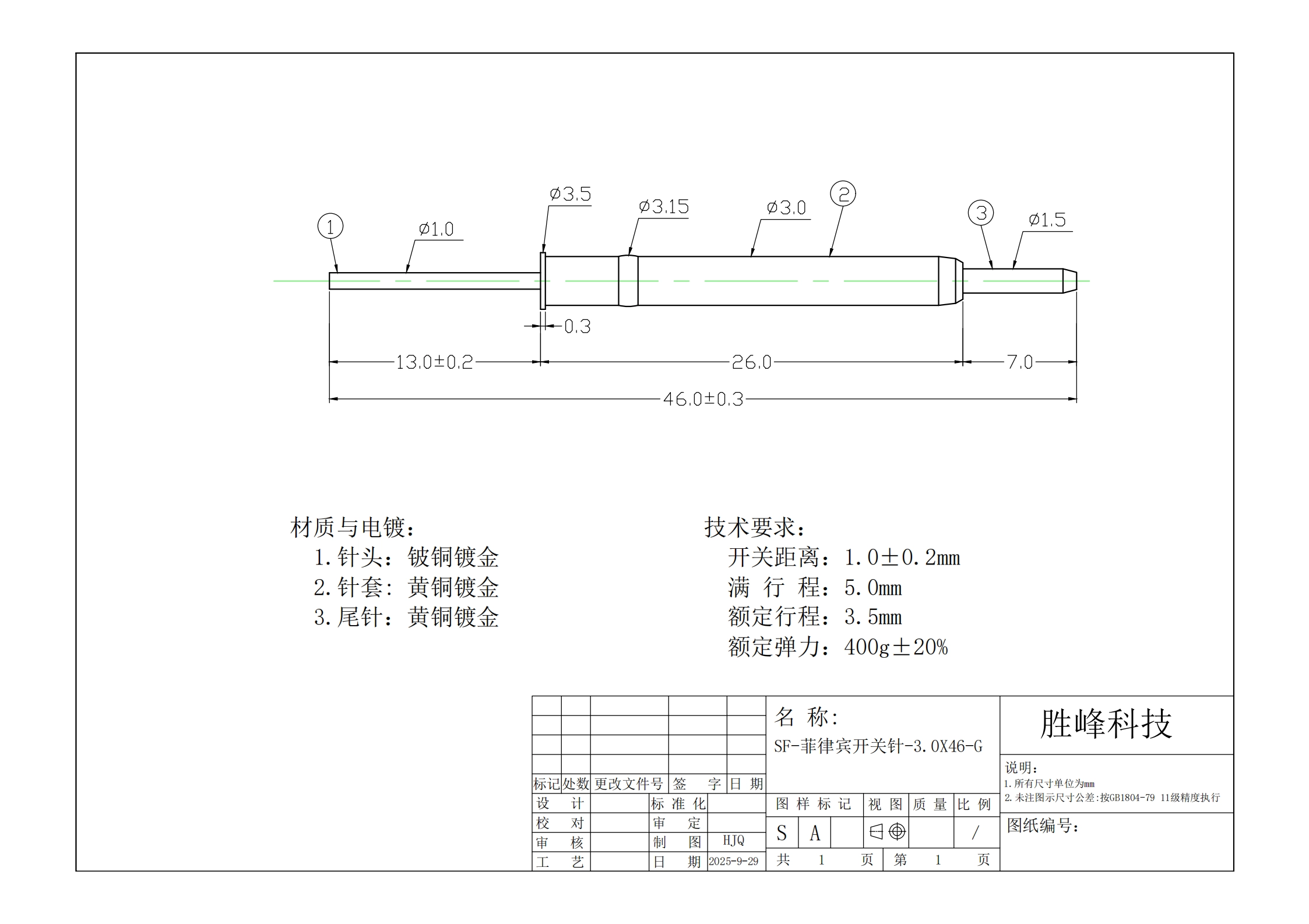

Technical Parameters

Product Introduction

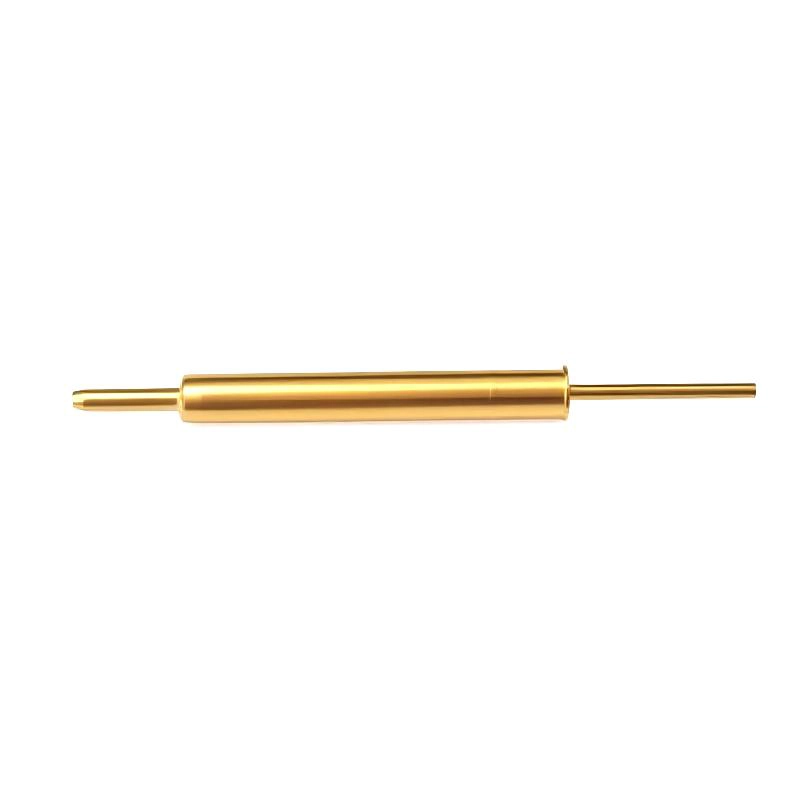

A switch probe is a spring contact probe and receptacle that is used to verify the presence of components or connectors.The switch probe is normally open,and after a designated travel the switch probe closes.The most common use for switch probes is in the cable harness testing industry.The switch probe is used to verify the correct location of a terminal contact in a connector while also checking the retention force.

Switch probe also verify the physical presence of non-conductive components such as caps for connectors or devices on a circuit board.There are two separate current paths in a switch probe. From the plunger tip to the tail is normally open and closes only after the probe deflects to the designated travel .The second path, from the plunger tip to the outside of the receptacle is always closed.

Company Profile

Suzhou Shengyifurui Electronic Technology Co.,Ltd is the leading test probe manufacturer in China. In 1984 we set up the first factory in Cixi City, Zhejiang Province. With high quality and sweet service, our products are widely used in more than 50 countries in the world.

We are dedicate to being the most reliable test probe supplier in China Market.

We are committed to provide the most professional products and services to the customers in the world.

Products include in-circuit spring test probe, semiconductor spring test probe, battery charging pogo pin and the related accessories.

Certifications

Custom Visits

Exhibition

FAQ

1.What is terms of SFENG payment?

For the orders, we prefer 100% payment before the delivery. You can choose Wire transfer, Pay Pal. USD dollar,Japanese Yuan and RMB are accepted.

2.Does SFENG provide free samples?

Yes, SFENG are pleased to provide free samples for testing before orders. It’s the biggest things that you trust us and our product quality.

3.What is the lead time of orders?

SFENG can send the goods out within 3 days after receiving the order. For customized products, we will adjust the lead time accordingly.

4.What is your QC process?

SFENG have skilled QC team and professional testing equipment. From the raw material to the finished products, we will make the testing. Only appearance, dimension, tips, spring force, plating and life span are checked ok by professional equipment. the goods can be sent to customers.

5.Can customized products be accepted?

Yes, one of our main features is customization. Just providing the drawing, we will make the product specially for you.

6.What test probes can SFENG provide?

SFENG can mainly provide 5 kinds of test probes, including in-circuit test probe, semiconductor test probes, battery contact pins, guide pins and related accessories.
